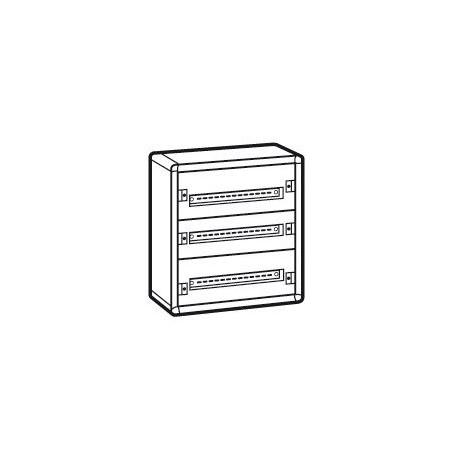

020003 LEGRAND XL3 160 SUPERF METAL 3 ROWS
020003
LEGRAND
XL3 160 SUPERF METAL 3 ROWS
Box, distribution metal XL3 160 - fully modular - 3 rows of 24 modules
XL³ 160 metal distribution box - fully modular - 3 rows of 24mod
Distribution boards > Small distribution board
XL3 160-400 ENERGY DISTRIBUTION CABINETS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Product features
Distribution box modular metal surface - Suitable for DPX3 160 - Apparatus modular Vistop less than or equal to 125 In - Number of rows: 3 - Number of modules: 72 - Height: 600 mm Width: 575 mm Depth: 147 mmGeneral characteristics
XL3 160 - distribution boxes metal "ready to use" - fire Resistance according to IEC 60695-2-11: 750 °C - Chassis removable with profiles that are symmetrical mounted - brass Bar for drivers protection fitted: 36 holes 1.5 to 10 mm2 and 2 holes 35 mm2 - Capacity: 24 modules per row - RAL 7035 - Supplied complete with profiles and caps cubrebornas - doors must be ordered separately - Allow you to perform sets certified according to UNE en 61439-2 and -3 - IP 43 - IK 08 with seal and door, IP 40 - IK 08 with door IP 30 - IK 07 without door - Sides, removable side. Top and bottom removable and separable to insert the plate cable entry cut-out (order separately)| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 600 mm |
| Inner depth (EF001131) | 115 mm |
| Transparent cover/door (EF006244) | No |
| Degree of protection (IP) (EF005474) | IP43 |
| DIN-rail (EF001134) | Yes |
| Housing material (EF001596) | Steel |
| With lock (EF006306) | No |
| Mounting method (EF000003) | Surface mounted |
| Number of rows (EF000266) | 3 |
| Cover model (EF009212) | With notch |
| RAL-number (EF000116) | 7035 |
| Built-in depth (EF000218) | 170 mm |
| Type of covering (EF000339) | Optional |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | Yes |
| Width in number of modular spacings (EF002950) | 24 |
| EMC-version (EF001062) | No |
| Depth (EF000049) | 147 mm |
| Colour (EF000007) | Grey |
| Width (EF000008) | 575 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 020003 EN_020002.pdf | 515 Kbytes |
 |
