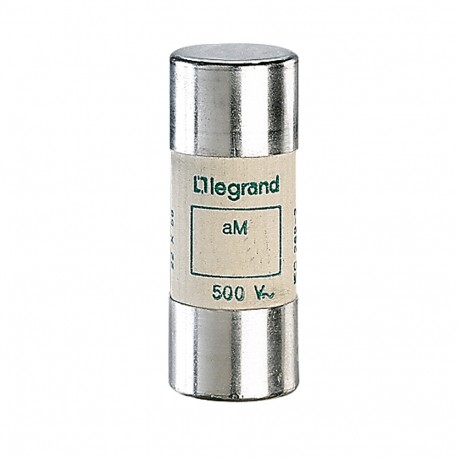

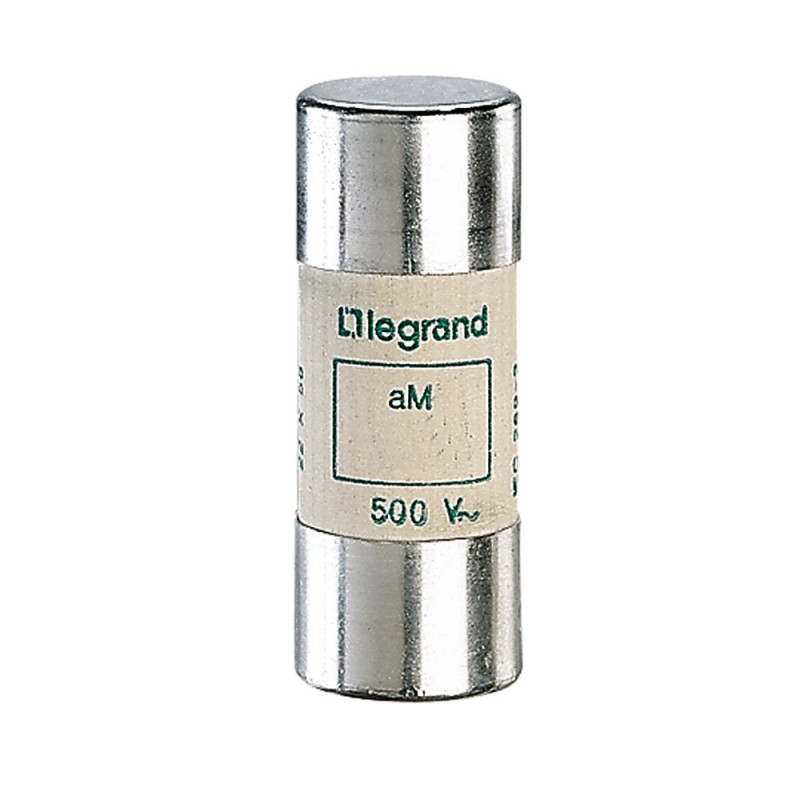

015096 LEGRAND FUSE CYLINDRICAL /2/100
015096
LEGRAND
10
FUSE CYLINDRICAL /2/100
Legrand 100A Type aM HRC Cylindrical Cartridge Fuse without Indicator 22mm x 58mm
ON-OFF switches, TM, 10 A, centre mounting, 2 contact unit(s), Contacts: 3, 90 °, maintained, With 0 (Off) position, 0-1, Design number 8292
Circuit breakers and fuses > Cylindrical fuse
ACCESSORIES CONTROL AND CONTROL PANELS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲| Model | Ceramic fuse |
|---|---|
| Size | 22x58 mm |
| Rated current | 100 A |
| Depth | 58 mm |
| Width | 22 mm |
| Voltage type | AC/DC |
| Utilization category according to IEC 60269 | AM |
|---|---|
| Rated operating frequency | 42-62 Hz |
| Type of fuse status indicator | Other |
| Power loss at rated current | 8.3 W |
| Operating / setting temperature | -25-40 °C |
| Storage temperature | -40-70 °C |
| Feature Name | Feature Value |
|---|---|
| Utilization category according to IEC 60269 (EF002572) | aM (switchgear protection) |
| Model (EF000010) | Ceramic fuse |
| Type of fuse status indicator (EF004473) | Other |
| Voltage type (EF000187) | AC/DC |
| Size (EF000088) | 22x58 mm |
| Power loss at rated current (EF012389) | 8.3 W |
| Rated current (EF000227) | 100 A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 015096 EN_015096.pdf | 2 Mbytes |
 |
