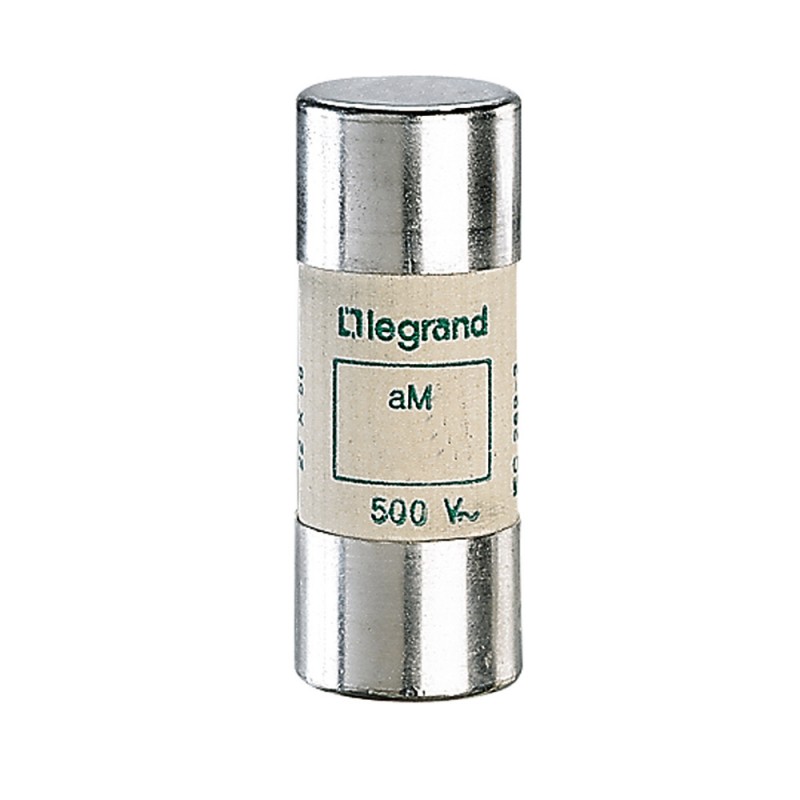

LEGRAND 015025 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

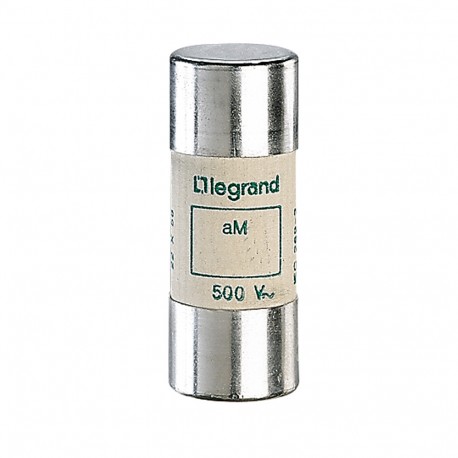

015025 LEGRAND CYLINDRICAL FUSE /2/25

Code: 015025

Manufacturer: LEGRAND

Description:

CYLINDRICAL FUSE /2/25
FUSE CYLINDRICAL /2/25
HRC cartridge fuse - cylindrical type aM 22 X 58 - 25 A - without indicator
Cylindrical fuse cartridge - aM - 22x58mm - without firing pin - 25A

Categories:

  • Circuit breakers and fuses > Cylindrical fuse
  • LEGRAND > ACCESSORIES CONTROL AND CONTROL PANELS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 69,07 €

Unit Price: 6,907 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Pack (number of units)10
  • Volume (dm3)0.381
  • Weight (g)512.00
Product characteristics
Cylindrical type aM (motor rated)
  • Conform to EN 60269-1, IEC 60269-1 and 2
22 x 58 HRC
  • Without striker
  • Rating : 25 Amps
  • Voltage ~ : 500 Volts
  • Rupture capacity : 100000 Amps
General characteristics
HRC cartridge fuses

ETIM for 015025 Circuit breakers and fuses (EC002704)

Feature nameUtilization category according to IEC 60269 (EF002572)
Feature valueaM (switchgear protection)
Feature nameModel (EF000010)
Feature valueCeramic fuse
Feature nameType of fuse status indicator (EF004473)
Feature valueOther
Feature nameVoltage type (EF000187)
Feature valueAC/DC
Feature nameSize (EF000088)
Feature value22x58 mm
Feature namePower loss at rated current (EF012389)
Feature value3.5 W
Feature nameRated current (EF000227)
Feature value25 A

DATASHEET - PDF

Title
Size
Type
015025 EN_015025.pdf
2 Mbytes
