014340 LEGRAND FUSE CYLINDRICAL /1/40
014340
LEGRAND
10
FUSE CYLINDRICAL /1/40

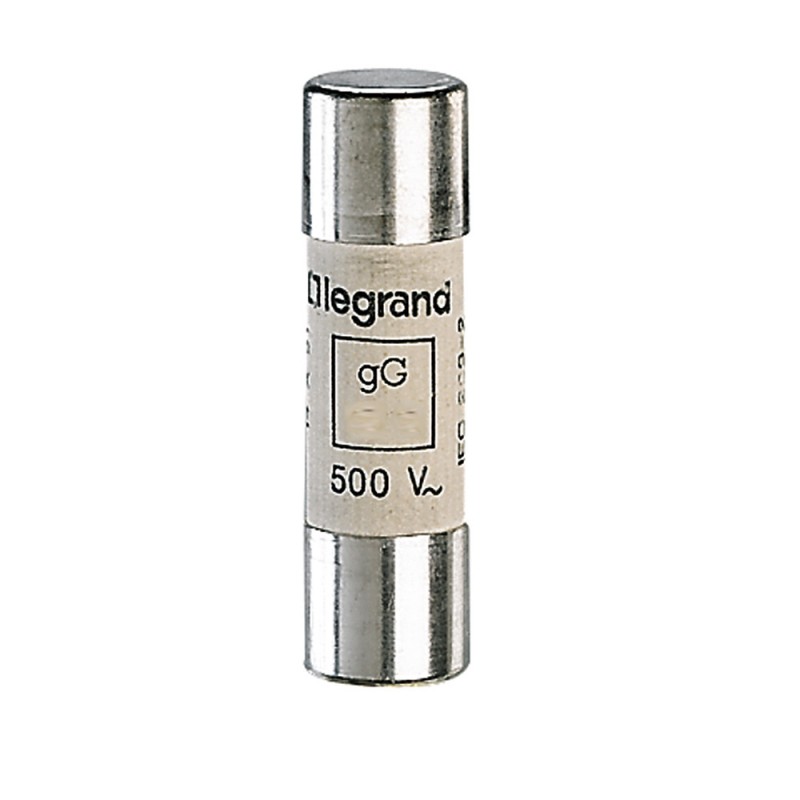

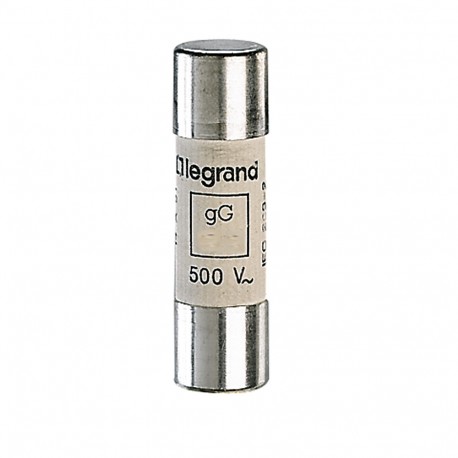

Legrand 40A Type gG Industrial HRC Cylindrical Cartridge Fuse without Indicator 14mm x 51mm
Cylindrical fuse cartridge - gG - 14x51mm - without firing pin - 40A
Circuit breakers and fuses > Cylindrical fuse
ACCESSORIES CONTROL AND CONTROL PANELS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Often bought together
▲Best sellers
▲More info
▲| Model | Ceramic fuse |
|---|---|
| Size | 14x51 mm |
| Rated current | 40 A |
| Depth | 51 mm |
| Width | 14 mm |
| Voltage type | AC/DC |
| Utilization category according to IEC 60269 | GG |
|---|---|
| Rated operating frequency | 42-62 Hz |
| Type of fuse status indicator | Other |
| Power loss at rated current | 4 W |
| Operating / setting temperature | -25-40 °C |
| Storage temperature | -40-70 °C |
| Feature Name | Feature Value |
|---|---|
| Utilization category according to IEC 60269 (EF002572) | gG (cable protection/equipment protection) |
| Model (EF000010) | Ceramic fuse |
| Type of fuse status indicator (EF004473) | Other |
| Voltage type (EF000187) | AC/DC |
| Size (EF000088) | 14x51 mm |
| Power loss at rated current (EF012389) | 4 W |
| Rated current (EF000227) | 40 A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 014340 EN_014340.pdf | 126 Kbytes |
 |
