012302 LEGRAND FUSE CYLINDRICAL/00/2
012302
LEGRAND
10
FUSE CYLINDRICAL/00/2

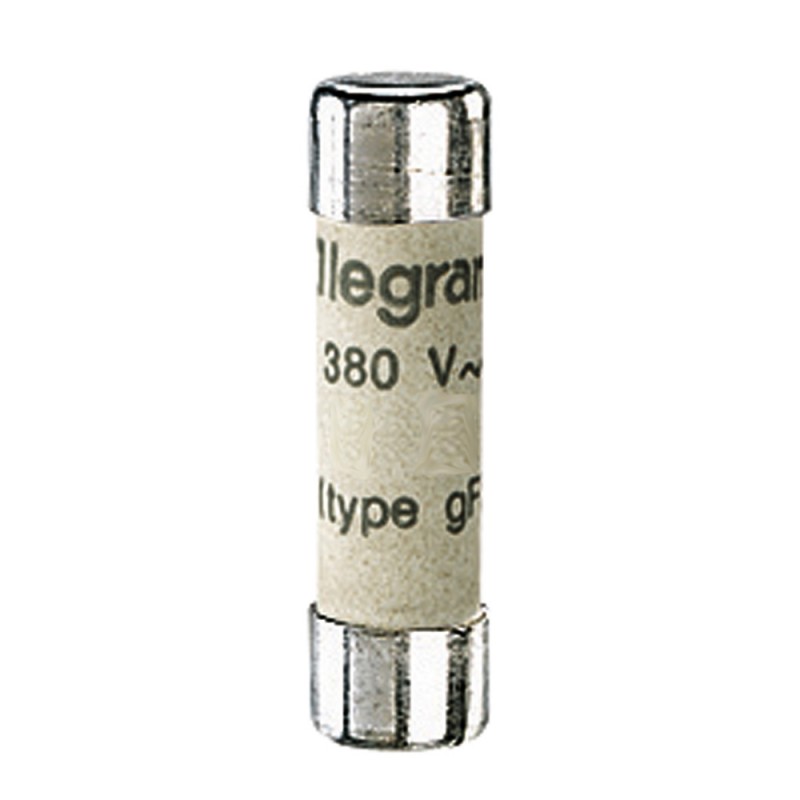

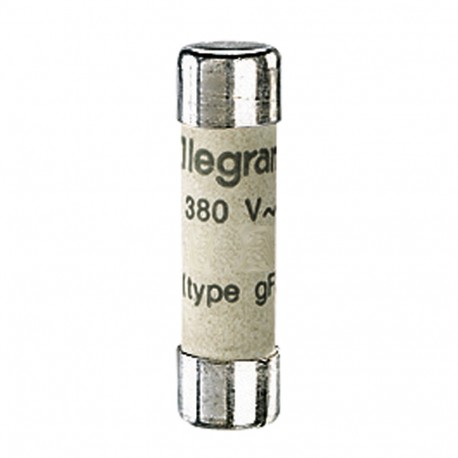

Legrand 2A Type gG Cylindrical Cartridge Fuse without Indicator 8mm x 32mm
Step switches, T0, 20 A, centre mounting, 3 contact unit(s), Contacts: 5, 45 °, maintained, With 0 (Off) position, 0-5, Design number 144
Circuit breakers and fuses > Cylindrical fuse
MOTOR CIRCUIT BREAKERS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲| Model | Ceramic fuse |
|---|---|
| Size | 8x32 mm |
| Rated current | 2 A |
| Depth | 32 mm |
| Width | 8 mm |
| Voltage type | AC |
| Utilization category according to IEC 60269 | GG |
|---|---|
| Rated operating frequency | 50-60 Hz |
| Type of fuse status indicator | Other |
| Power loss at rated current | 0.45 W |
| Operating / setting temperature | -25-40 °C |
| Storage temperature | -40-70 °C |
| Feature Name | Feature Value |
|---|---|
| Utilization category according to IEC 60269 (EF002572) | gG (cable protection/equipment protection) |
| Model (EF000010) | Ceramic fuse |
| Type of fuse status indicator (EF004473) | Other |
| Voltage type (EF000187) | AC |
| Size (EF000088) | 8x32mm |
| Power loss at rated current (EF012389) | 0.45 W |
| Rated current (EF000227) | 2 A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 012302 EN_012302.pdf | 1 Mbytes |
 |
