010476 LEGRAND 02B-CHANNEL 65x195 DLP MBLOC

Code: 010476

Manufacturer: LEGRAND

Description:

02B-CHANNEL 65x195 DLP MBLOC
DLPE-MONOB CHANNEL 65x195

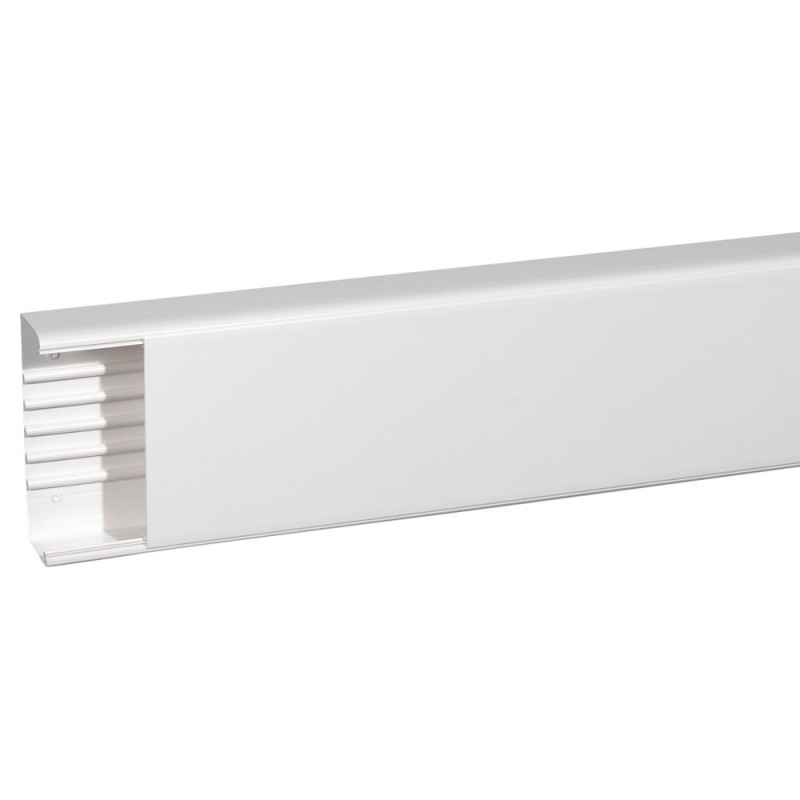

Channel DLP monoblock 65x195 - 1 cap 180 mm - L. 2m - white
DLP monobloc channel 65x195 - 1 cover of 180mm - L. 2m - White

Categories:

  • Installation ducts for wall and ceiling > Wall duct
  • LEGRAND > EVOLUTIONARY DLP INSTALLATION CABLE TRUNKING

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 176,08 €

Unit Price: 44,02 €/m

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product features

Channel monoblock 65 x 195 Channel 1 compartment - Includes: - 1 body - 1 cover, flexible-width 180 mm - maximum Section: 11240 mm2 - Packing of 2 units of 2 m

General characteristics

Channel DLP monoblock 50 x 195 and 65 x 195 - cap of 180 mm for cable distribution - IP 40 - IK 07, meet the standard UNE en 50085-2-1

ETIM for 010476 Cable trunking systems for wall and ceilings (EC001938)

Feature nameDegree of protection (IP) (EF005474)
Feature valueIP40
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameConstruction type rectangular (EF007674)
Feature valueYes
Feature nameBottom perforation (EF004545)
Feature valueYes
Feature nameHalogen free (EF000025)
Feature valueNo
Feature nameMaterial quality (EF001257)
Feature valuePolyvinyl chloride (PVC)
Feature nameConstruction rear wall (inner side) (EF006265)
Feature valuePerforated
Feature nameOperating temperature (EF001742)
Feature value-5 °C
Feature nameNumber of plug-in partitions (EF004438)
Feature value5
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature nameSymmetric (EF005329)
Feature valueYes
Feature nameRAL-number (EF000116)
Feature value9003
Feature nameWith cable fixing clip (EF004815)
Feature valueNo
Feature nameCover width 1 (EF005147)
Feature value180 mm
Feature nameWith protective foil (EF005266)
Feature valueYes
Feature nameNumber of covers (EF004430)
Feature value1
Feature nameCovers included (EF008479)
Feature valueYes
Feature nameAnti-bacterial treatment (EF023790)
Feature valueNo
Feature nameImpact strength (EF004293)
Feature valueIK07
Feature nameUseful cross section (EF005140)
Feature value11240 mm²
Feature nameDepth (EF000049)
Feature value65 mm
Feature nameMounting method cover (EF002922)
Feature valueSpanned
Feature nameColour (EF000007)
Feature valueWhite
Feature nameLength (EF001438)
Feature value2000 mm
Feature nameWidth (EF000008)
Feature value195 mm
Feature nameWith duct connector (EF004826)
Feature valueNo
