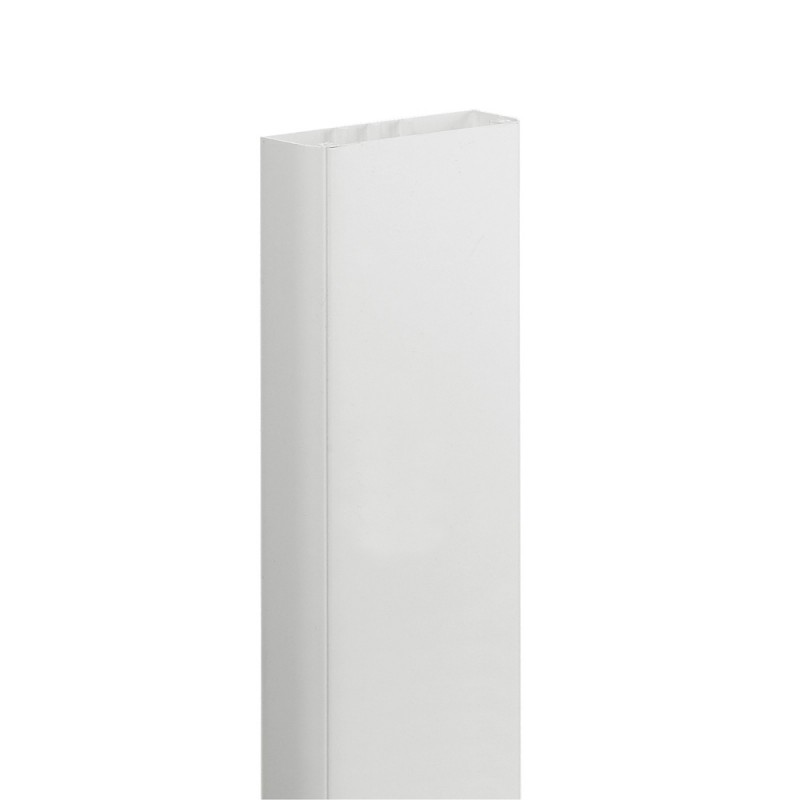

010464 LEGRAND DLPE-MONOB CHANNEL 50x105
010464
LEGRAND
12 m.
DLPE-MONOB CHANNEL 50x105
Flexible cover universal DLP trunking without partition 50 x 105 mm - 85 mm cover - 2 m
DLP monobloc channel 50x105 - 1 cover of 85mm - L. 2m - White
Installation ducts for wall and ceiling > Wall duct
EVOLUTIONARY DLP INSTALLATION CABLE TRUNKING
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)16
- Volume (dm3)74.603
- Weight (g)16 944.00
Trunking without partition
- Supplied with:
- one 50 x 105 mm body
- one flexible 85 mm width cover
- Fits onto the whole trunking including in internal and external angles
- Installation: can be used with Mosaic/Arteor ranges or DIN rail equipment
- Length 2 m
- White
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP40 |
| Material (EF002169) | Plastic |
| Construction type rectangular (EF007674) | Yes |
| Bottom perforation (EF004545) | Yes |
| Halogen free (EF000025) | No |
| Material quality (EF001257) | Polyvinyl chloride (PVC) |
| Construction rear wall (inner side) (EF006265) | Perforated |
| Operating temperature (EF001742) | -5 °C |
| Number of plug-in partitions (EF004438) | 1 |
| Surface protection (EF000139) | Untreated |
| Symmetric (EF005329) | Yes |
| RAL-number (EF000116) | 9003 |
| With cable fixing clip (EF004815) | No |
| Cover width 1 (EF005147) | 85 mm |
| With protective foil (EF005266) | Yes |
| Number of covers (EF004430) | 1 |
| Covers included (EF008479) | Yes |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK07 |
| Useful cross section (EF005140) | 4300 mm² |
| Depth (EF000049) | 50 mm |
| Mounting method cover (EF002922) | Spanned |
| Colour (EF000007) | White |
| Length (EF001438) | 2000 mm |
| Width (EF000008) | 105 mm |
| With duct connector (EF004826) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 010464 EN_010464.pdf | 2 Mbytes |
 |
