010461 LEGRAND DLPE-MONOB CHANNEL 35x80
010461
LEGRAND
20 m.

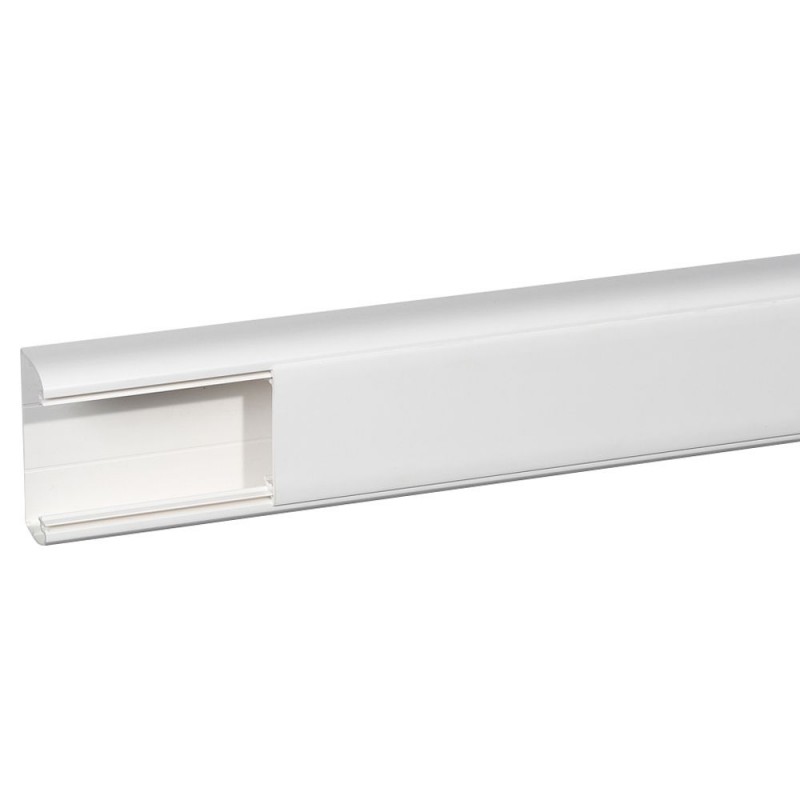

DLPE-MONOB CHANNEL 35x80
Channel DLP monoblock 35x80 - 1 cap 65 mm - L. 2m - white
DLP monobloc channel 35x80 - 1 cover of 65mm - L. 2m - White
Installation ducts for wall and ceiling > Wall duct
EVOLUTIONARY DLP INSTALLATION CABLE TRUNKING
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲Product features
Channel monoblock 35 x 80 Channel of a compartment - Includes: - 1 body - 1 cover, flexible-width 65 mm - maximum Section: 2240 mm2 - Packing of 12 units of 2 m - Is associated with tomas and mechanisms mosaic and lid supports of 65 mmGeneral characteristics
Channel DLP monoblock 35 x 80 and 50 x 80 - cap 65 mm for mounting of mechanisms with support - IP 40 - IK 07, meet the standard UNE en 50085-2-1| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP40 |
| Material (EF002169) | Plastic |
| Construction type rectangular (EF007674) | Yes |
| Bottom perforation (EF004545) | Yes |
| Halogen free (EF000025) | No |
| Material quality (EF001257) | Polyvinyl chloride (PVC) |
| Construction rear wall (inner side) (EF006265) | Perforated |
| Operating temperature (EF001742) | -5 °C |
| Number of plug-in partitions (EF004438) | 0 |
| Surface protection (EF000139) | Untreated |
| Symmetric (EF005329) | Yes |
| RAL-number (EF000116) | 9003 |
| With cable fixing clip (EF004815) | No |
| Cover width 1 (EF005147) | 65 mm |
| With protective foil (EF005266) | Yes |
| Number of covers (EF004430) | 1 |
| Covers included (EF008479) | Yes |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK07 |
| Useful cross section (EF005140) | 2240 mm² |
| Depth (EF000049) | 35 mm |
| Mounting method cover (EF002922) | Spanned |
| Colour (EF000007) | White |
| Length (EF001438) | 2000 mm |
| Width (EF000008) | 80 mm |
| With duct connector (EF004826) | No |
