LEGRANDSPLITTERS004877 LEGRAND REP. MOD TETRA 250A MONOBLOC

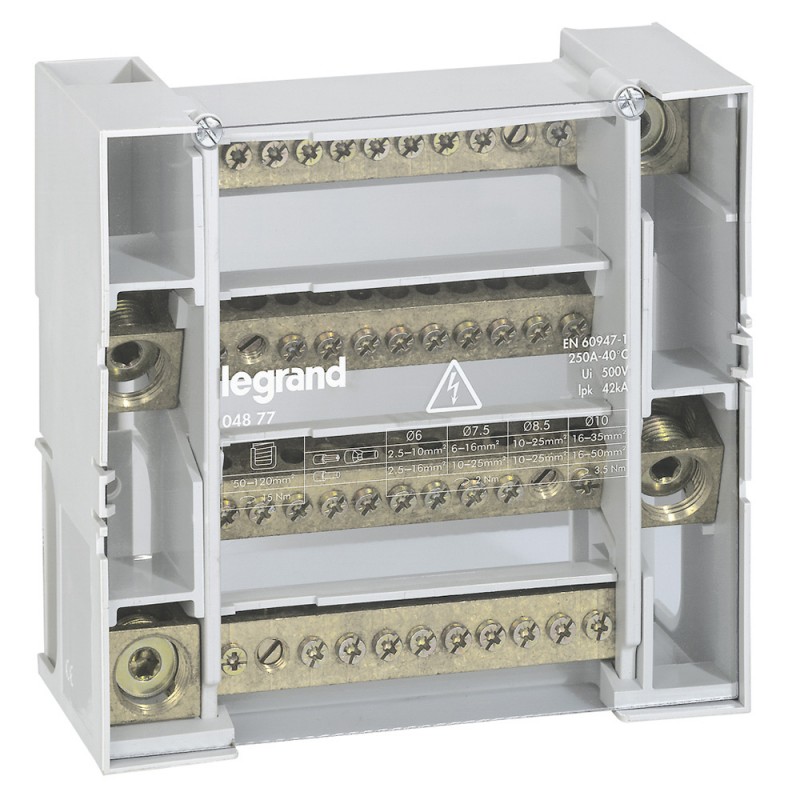

LEGRAND 004877 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

004877 LEGRAND REP. MOD TETRA 250A MONOBLOC

Code: 004877

Manufacturer: LEGRAND

Description:

REP. MOD TETRA 250A MONOBLOC
REP. MOD TETRA 250 MONOBLOCK
Monobloc modular distribution block - 4P - 250 A - 12 connections
Monobloc modular distributor - 4P - 250A - 12 connections - 9mod

Categories:

  • Energy distribution systems > Rail terminal bar
  • LEGRAND > SPLITTERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 195,30 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)1
  • Volume (dm3)2.601
  • Weight (g)1 502.00
Product characteristics
Monobloc modular distribution blocks
  • Mounting on rail or on plate with 2 screws
  • Supplied with insulated back plate and transparent protective front cover
  • Each bar can be labelled using CAB 3
  • Possible to add IP 2X terminal block
Four pole
  • Equipped with 4 bars
  • Rating : 250 A
  • Isc peak : 42 kA
  • Icw : 14.4 kA
  • Number of modules : 9
General characteristics
Modular distribution blocks 40 to 250 A
  • Standard distribution
  • Connection with or without Starfix ferrules
  • Self-extinguishing, according to EN 60695-2-11: 960 °C on active part supports

ETIM for 004877 Power distribution systems (EC000275)

Feature nameHeight (EF000040)
Feature value150 mm
Feature nameNominal current (EF000001)
Feature value250 A
Feature nameConnection type (EF000124)
Feature valueScrewing
Feature nameMounting method (EF000003)
Feature valueDIN rail
Feature nameContact safe (EF004521)
Feature valueYes
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameDepth (EF000049)
Feature value44 mm
Feature nameWidth (EF000008)
Feature value160 mm

DATASHEET - PDF

Title
Size
Type
004877 EN_004877.pdf
135 Kbytes
