LEGRANDSPLITTERS004822 LEGRAND UNIVERSAL TERMINAL BLOCK 8 OUTPUTS

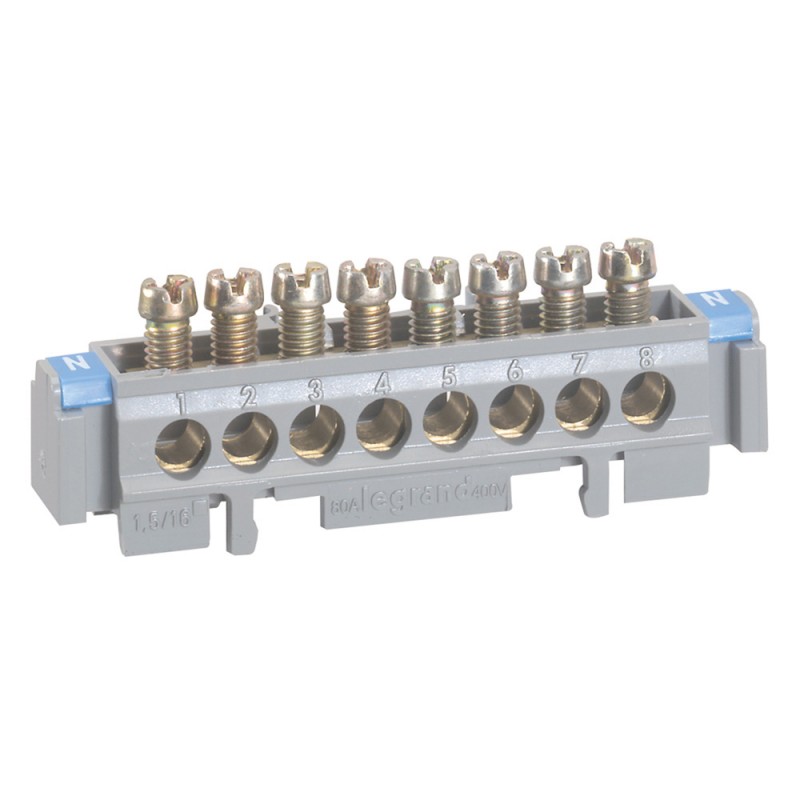

LEGRAND 004822 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

004822 LEGRAND UNIVERSAL TERMINAL BLOCK 8 OUTPUTS

Code: 004822

Manufacturer: LEGRAND

Description:

UNIVERSAL TERMINAL BLOCK 8 OUTPUTS
TERMINAL BLOCK UNIVERSAL 8 OUTPUTS
Legrand Fully Shrouded Terminal Block Rail Mounting 0 Entry 8 Exit 75mm
Bare terminal block on support - L. 75mm

Categories:

  • Energy distribution systems > Rail terminal bar
  • LEGRAND > SPLITTERS

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 99,72 €

Unit Price: 9,972 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Partly shrouded terminal blocks on base For fixing to 12 x 2mm rail Supplied with Duplix markers
Number of poles1
Nominal current76 A
Connection typeScrewing
Mounting methodDIN rail
Number of inputs1
Number of outputs7
Suitable for solid conductorsYes
Suitable for stranded conductorsYes
Suitable for fine strand conductorsYes
Suitable for fine strand conductors without cable end sleeveNo
Suitable for extra fine-strand conductorsNo
Suitable for extra fine-strand conductors without cable end sleeveNo
Conductor cross section, input1.5-16 mm²
Conductor cross section, output1.5-16 mm²
Contact safeNo
Height10.5 mm
Width75 mm
Depth6.5 mm
Operating / setting temperature-5-40 °C
Storage temperature-25-70 °C
Type of distribution blocksMultifunction
Terminals capacity1.5-16 mm²
Label space/information surfaceNo

ETIM for 004822 Power distribution systems (EC000275)

Feature nameHeight (EF000040)
Feature value10.5 mm
Feature nameNominal current (EF000001)
Feature value76 A
Feature nameConnection type (EF000124)
Feature valueScrewing
Feature nameMounting method (EF000003)
Feature valueDIN rail
Feature nameContact safe (EF004521)
Feature valueNo
Feature nameSuitable for extra fine-strand conductors (EF016328)
Feature valueNo
Feature nameSuitable for extra fine-strand conductors without cable end sleeve (EF016329)
Feature valueNo
Feature nameNumber of poles (EF001391)
Feature value1
Feature nameConductor cross section, output (EF016331)
Feature value1.5 mm²
Feature nameSuitable for fine strand conductors without cable end sleeve (EF016327)
Feature valueNo
Feature nameSuitable for stranded conductors (EF007818)
Feature valueYes
Feature nameDepth (EF000049)
Feature value6.5 mm
Feature nameConductor cross section, input (EF016330)
Feature value1.5 mm²
Feature nameSuitable for fine strand conductors (EF007804)
Feature valueYes
Feature nameWidth (EF000008)
Feature value75 mm
Feature nameSuitable for solid conductors (EF007816)
Feature valueYes
Feature nameNumber of outputs (EF000319)
Feature value7
Feature nameNumber of inputs (EF000318)
Feature value1

DATASHEET - PDF

Title
Size
Type
004822 EN_004820.pdf
452 Kbytes
