LEGRANDSUPERVISION AND ENERGY MEASUREMENT004616 LEGRAND GRADUATED SCALE LX 250A

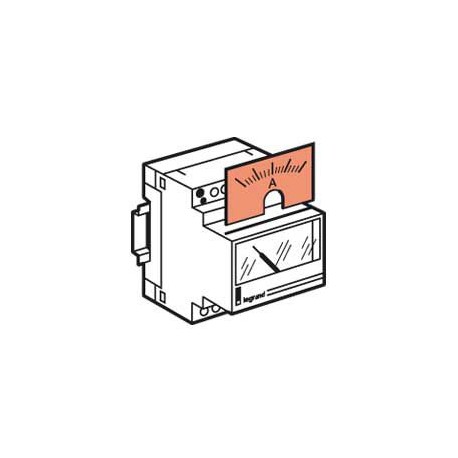

LEGRAND 004616 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

004616 LEGRAND GRADUATED SCALE LX 250A

Code: 004616

Manufacturer: LEGRAND

Description:

GRADUATED SCALE LX 250A
Measuring dial for ammeter Lexic 046 00 - 0-250 A
Measuring quadrant for analog ammeter ref. 0 046 00 - 0/250A

Categories:

  • Devices for distribution board-/surface mounting > Measuring scale
  • LEGRAND > SUPERVISION AND ENERGY MEASUREMENT

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 8,02 €

Unit Price: 4,01 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Pack (number of units)2
  • Volume (dm3)0.019
  • Weight (g)20.00
Product characteristics
Analogue metering devices
Measuring dials for ammeter Cat.No 0 046 00
  • 0-250 A
General characteristics
Electrical energy metering on rail

ETIM for 004616 Modular devices for distribution board/surface mounting (EC002302)

Feature nameMax. needle deflection (EF005992)
Feature value45 °
Feature nameOvercurrent scale (EF006101)
Feature valueNo
Feature nameInitial value scale (EF005635)
Feature value0
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameHeight meter scale (EF005896)
Feature value45 mm
Feature nameUnit of measurement (EF004913)
Feature valueAmpere
Feature nameNominal end value of the scale (EF006072)
Feature value250
Feature nameWidth meter scale (EF005658)
Feature value70 mm

DATASHEET - PDF

Title
Size
Type
004616 EN_004616.pdf
129 Kbytes
