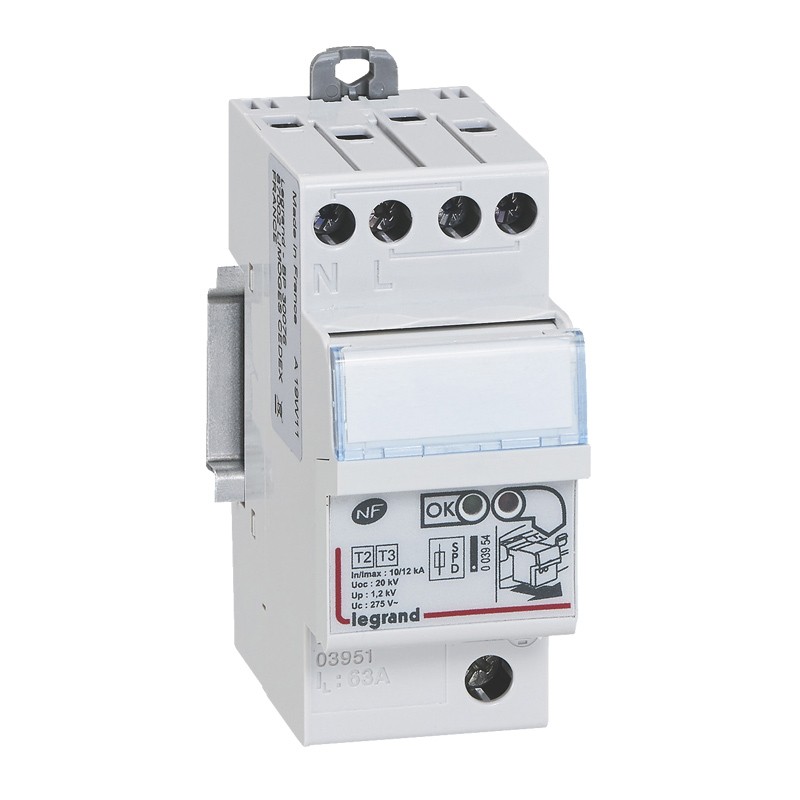

003951 LEGRAND LIMITER OVERVOLTAGE
003951
LEGRAND
LIMITER OVERVOLTAGE
Self-protected SPD - for consumer unit - T2 - Imax 12 kA/pole - 1P+N left
Self-Protected Surge Limiter Type 2 - 2P
Earthing, lightning and surge protection > Surge protection device for power supply systems
MOTOR CIRCUIT BREAKERS
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Related products
▲Best sellers
▲More info
▲- Pack (number of units)1
- Volume (dm3)0.369
- Weight (g)159.00
- For residential and small commercial installations
- With plug-in modules and status indicators:
- Green: SPD operational
- Red: plug-in module need to be replaced
- For installations with low risk level (in urban areas, underground power supplies, etc.)
- In: 10 kA/pole - Uc: 275 V~
- Earthing systems: TT, TNS
- Cat. No. 0 039 51: SPD with Y connection (both incoming and outgoing terminals at the top of the SPD) providing better protection against overvoltages
- 1P+N and 3P+N: L-N and N-PE protection modes (common and differential modes), the N pole being protected by encapsulated spark gaps. Also called 1+1 and 3+1.
- Number of poles : 1P+N
- Neutral position : Left
- Integrated protection : Isc ? 6 kA
- Number of modules : 2
- SPDs with integrated protection against overload currents and short-circuit currents
- SPDs compliant with EN/IEC 61643-11 standards
- For 230/400 VA power networks (50/60 Hz)
| Feature Name | Feature Value |
|---|---|
| System configuration TN-C-S (EF009933) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Nominal voltage AC (EF004220) | 230 V |
| System configuration TN-S (EF009930) | No |
| Construction size (EF002566) | 2 modular spacing |
| System configuration other (EF009932) | No |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| System configuration TT (EF009931) | Yes |
| Signalling at the device (EF004241) | Optic |
| Number of conductors (without earthing) (EF001148) | 2 |
| Voltage protection level (EF003525) | 1.2 kV |
| System configuration IT (EF009927) | No |
| System configuration TN-C (EF009929) | Yes |
| System configuration TN (EF009928) | Yes |
| Max. continuous voltage AC (EF004198) | 275 V |
| Integrated backup fuse (EF008797) | Yes |
| Voltage protection level L-N (EF004236) | 1 kV |
| Nominal discharge surge current (8/20) (EF004214) | 10 kA |
| Category type 2 (EF004230) | Yes |
| With remote signalling contact (EF000422) | No |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 16 mm² |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 16 mm² |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 003951 EN_003951.pdf | 506 Kbytes |
 |
