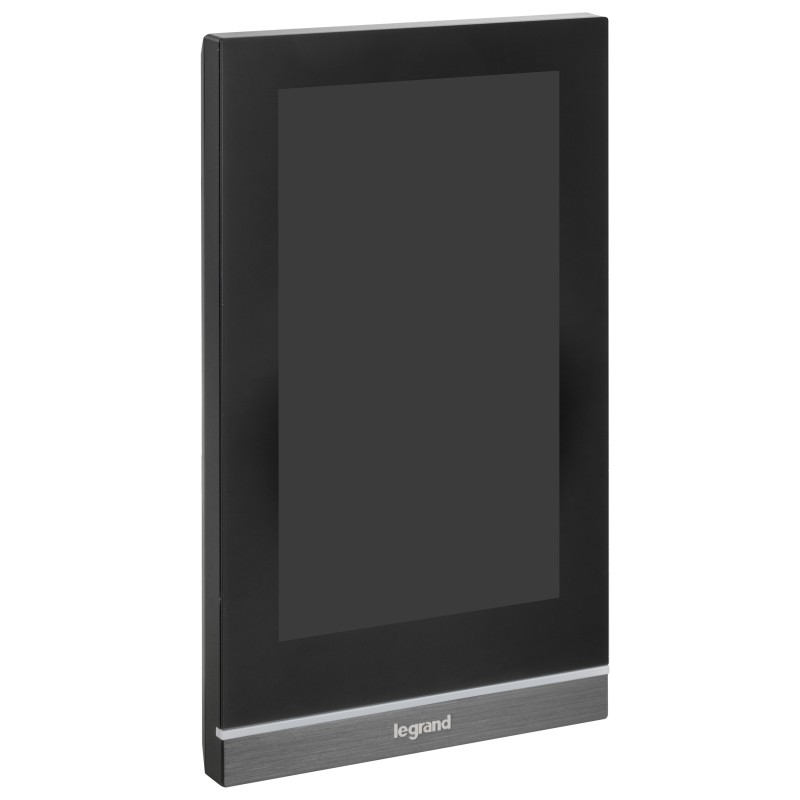

LEGRAND 002901 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

002901 LEGRAND KNX 6"S TOUCH SCREEN

Code: 002901

Manufacturer: LEGRAND

Description:

KNX 6"S TOUCH SCREEN
5" KNX touchscreen

Categories:

  • PLC's > Graphic panel
  • LEGRAND > DOMOTICS MY HOME

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 555,79 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

5" KNX touchscreen with integrated temperature and proximity sensor. Maximum 16 timings, 8 groups, 8 logic functions. 15 control pages including switch, dimming, RGB control, blind, stage control, HVAC control, audio control, and energy metering. Installation in recessed box.
DC supply voltage21-30 V
Type of supply voltageCC
Power consumption3 W
Number of HW Industrial Ethernet Interfaces0
Number of PROFINET interfaces0
Number of HW RS232 interfaces0
Number of HW RS422 interfaces0
Number of HW RS485 interfaces0
Number of TTY serial HW interfaces0
Number of HW USB Interfaces0
Number of HW interfaces in parallel0
Number of Wireless HW Interfaces0
Number of HW Interfaces Other1
With SW interfacesNo
Supports EtherCAT protocolNo
Supports TCP/IP protocolNo
Supports PROFIBUS protocolNo
Supports CAN protocolNo
Supports the INTERBUS protocolNo
Supports ASI protocolNo
Supports KNX protocolYes
Supports Modbus protocolNo
Supports data highway protocolNo
Supports DeviceNet protocolNo
Supports SUCONET protocolNo
Supports LON protocolNo
Supports PROFINET IO protocolNo
Supports PROFINET CBA protocolNo
Supports SERCOS protocolNo
Supports Foundation Fieldbus protocolNo
Supports Ethernet/IP protocolNo
Supports AS-Interface Safety at Work protocolNo
Supports DeviceNet Safety protocolNo
Supports the INTERBUS security protocolNo
Supports PROFIsafe protocolNo
Supports the SafetyBUS protocol pNo
Supports protocol for other bus systemsNo
Bluetooth wireless standardNo
WLAN Radio Standard 802.11No
GPRS Radio StandardNo
GSM Radio StandardNo
UMTS Radio StandardNo
I/O Link MasterNo
Screen ExecutionTFT
With color displayYes
Number of Screen Colors16700000
Number of Grayscale/Blue Levels on the Display256
Screen size4.95 inch
Number of pixels, horizontal480
Number of pixels, vertical854
With numeric keypadNo
With alphanumeric keypadNo
Number of function keys, programmable0
Number of keys with LED0
Number of "system" keys0
Touch technologyCapacitive multi-touch
With message indicationNo
With message system (including buffer and acknowledgment)No
Possibility of process value representation (output)No
Possibility of process value specification (input)No
With recipesNo
Number of levels, password protection4
With printer outputNo
Number of languages online12
Degree of protection (IP), frontIP20
NEMA rating, front1
UL Class I Hazardous Area CertificateNo
Certified to UL Class IINo
UL Class III Hazardous Area CertificateNo
UL Division 1 Hazardous Area CertifiedNo
UL Division 2 Hazardous Area CertifiedNo
Certified for hazardous areas group A (acetylene)No
Certified for hazardous areas group B (hydrogen)No
Group C (ethylene) hazardous area certificateNo
Group D (propane) hazardous area certificateNo
Certified for hazardous areas group E (metal powders)No
Certified for hazardous areas group F (carbonaceous dusts)No
Certified for Group G (Non-Conductive Dusts) hazardous areasNo
Operating temperature-5-45°C
Rail mounting possibleNo
Wall/direct mounting possibleYes
Suitable for safety functionsNo
Front Width86 mm
Front Height148.8 mm
Installation Depth21 mm

ETIM for 002901 PLC's (EC001412)

Feature nameRadio standard UMTS (EF008525)
Feature valueNo
Feature nameProcess value representation (output) possible (EF003111)
Feature valueNo
Feature nameProcess default value (input) possible (EF003112)
Feature valueNo
Feature nameSupporting protocol for INTERBUS-Safety (EF006662)
Feature valueNo
Feature nameWith message system (incl. buffer and confirmation) (EF003110)
Feature valueNo
Feature nameWith printer output (EF003115)
Feature valueNo
Feature nameNumber of buttons with LED (EF009259)
Feature value0
Feature nameNumber of online languages (EF003116)
Feature value12
Feature nameRadio standard GPRS (EF008523)
Feature valueNo
Feature nameWith recipes (EF003113)
Feature valueNo
Feature nameTouch technology (EF010884)
Feature valueCapacitive multitouch
Feature nameRadio standard GSM (EF008524)
Feature valueNo
Feature nameNumber of password levels (EF003114)
Feature value4
Feature nameCertified for UL hazardous location group G (non-conductive dusts) (EF017639)
Feature valueNo
Feature nameType of display (EF008244)
Feature valueTFT
Feature nameCertified for UL hazardous location group E (metal dusts) (EF017637)
Feature valueNo
Feature nameCertified for UL hazardous location group F (carbonaceous dusts) (EF017638)
Feature valueNo
Feature nameSupporting protocol for EtherCAT (EF017564)
Feature valueNo
Feature nameWith message indication (EF003109)
Feature valueNo
Feature nameWith alpha numeric keyboard (EF003106)
Feature valueNo
Feature nameSupporting protocol for PROFINET CBA (EF007524)
Feature valueNo
Feature nameSupporting protocol for PROFINET IO (EF007525)
Feature valueNo
Feature nameVoltage type (supply voltage) (EF002991)
Feature valueDC
Feature nameSupporting protocol for PROFIsafe (EF007526)
Feature valueNo
Feature nameScreen diagonal (EF002032)
Feature value4.95 inch
Feature nameSupporting protocol for SafetyBUS p (EF007527)
Feature valueNo
Feature nameWith SW interfaces (EF003121)
Feature valueNo
Feature nameSupporting protocol for DeviceNet Safety (EF007520)
Feature valueNo
Feature nameSupporting protocol for EtherNet/IP (EF007521)
Feature valueNo
Feature nameSupporting protocol for Foundation Fieldbus (EF007522)
Feature valueNo
Feature nameDegree of protection (NEMA), front side (EF011961)
Feature value1
Feature nameCertified for UL hazardous location division 1 (EF017628)
Feature valueNo
Feature nameCertified for UL hazardous location division 2 (EF017629)
Feature valueNo
Feature nameCertified for UL hazardous location class III (EF017627)
Feature valueNo
Feature nameOperating temperature (EF002393)
Feature value-5 °C
Feature nameCertified for UL hazardous location group A (acetylene) (EF017632)
Feature valueNo
Feature nameNumber of system buttons (EF009260)
Feature value0
Feature nameCertified for UL hazardous location group C (ethylene) (EF017635)
Feature valueNo
Feature nameCertified for UL hazardous location group D (propane) (EF017636)
Feature valueNo
Feature nameCertified for UL hazardous location group B (hydrogen) (EF017633)
Feature valueNo
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP20
Feature nameSupporting protocol for AS-Interface Safety at Work (EF007519)
Feature valueNo
Feature nameSupporting protocol for Modbus (EF003057)
Feature valueNo
Feature nameWidth of the front (EF003651)
Feature value86 mm
Feature nameNumber of colours of the display (EF003098)
Feature value16700000
Feature nameSupporting protocol for INTERBUS (EF003054)
Feature valueNo
Feature nameSupporting protocol for KNX (EF003055)
Feature valueYes
Feature nameNumber of pixels, horizontal (EF003099)
Feature value480
Feature nameRadio standard WLAN 802.11 (EF007179)
Feature valueNo
Feature nameSupporting protocol for LON (EF003017)
Feature valueNo
Feature nameSupporting protocol for Data-Highway (EF003058)
Feature valueNo
Feature nameHeight of the front (EF003652)
Feature value148.8 mm
Feature nameSupporting protocol for DeviceNet (EF003059)
Feature valueNo
Feature nameSuitable for safety functions (EF001597)
Feature valueNo
Feature nameSuitable for rail mounting (EF003972)
Feature valueNo
Feature nameSupply voltage DC (EF007534)
Feature value21 V
Feature nameIO link master (EF007298)
Feature valueNo
Feature nameRadio standard Bluetooth (EF007178)
Feature valueNo
Feature nameSupporting protocol for PROFIBUS (EF003052)
Feature valueNo
Feature nameColour display (EF003097)
Feature valueYes
Feature nameSupporting protocol for CAN (EF003053)
Feature valueNo
Feature nameSupporting protocol for TCP/IP (EF003050)
Feature valueNo
Feature nameSupporting protocol for ASI (EF003051)
Feature valueNo
Feature nameCertified for UL hazardous location class II (EF017625)
Feature valueNo
Feature nameCertified for UL hazardous location class I (EF017622)
Feature valueNo
Feature nameBuilt-in depth (EF000218)
Feature value21 mm
Feature nameNumber of pixels, vertical (EF003100)
Feature value854
Feature nameNumber of HW-interfaces RS-485 (EF003023)
Feature value0
Feature nameNumber of grey-scales/blue-scales of display (EF008515)
Feature value256
Feature nameNumber of HW-interfaces serial TTY (EF003024)
Feature value0
Feature nameNumber of HW-interfaces RS-232 (EF003021)
Feature value0
Feature nameNumber of interfaces PROFINET (EF006932)
Feature value0
Feature nameNumber of HW-interfaces wireless (EF006933)
Feature value0
Feature nameNumber of HW-interfaces RS-422 (EF003022)
Feature value0
Feature nameNumber of HW-interfaces other (EF003027)
Feature value1
Feature nameSupporting protocol for SERCOS (EF006657)
Feature valueNo
Feature nameWith numeric keyboard (EF003105)
Feature valueNo
Feature nameNumber of HW-interfaces USB (EF003025)
Feature value0
Feature nameNumber of function buttons, programmable (EF003103)
Feature value0
Feature nameNumber of HW-interfaces parallel (EF003026)
Feature value0
Feature nameSupporting protocol for SUCONET (EF003060)
Feature valueNo
Feature nameNumber of HW-interfaces industrial Ethernet (EF003020)
Feature value0
Feature nameSupporting protocol for other bus systems (EF003062)
Feature valueNo
Feature nameWall mounting/direct mounting (EF007020)
Feature valueYes
Feature namePower consumption (EF000346)
Feature value3 W
