LEGRANDDOMOTICS MY HOME002654 LEGRAND KNX LED AND VOLTAGE REGULATOR

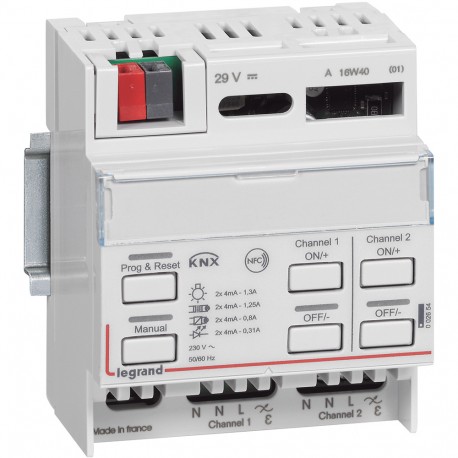

LEGRAND 002654 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

002654 LEGRAND KNX LED AND VOLTAGE REGULATOR

Code: 002654

Manufacturer: LEGRAND

Description:

KNX LED AND VOLTAGE REGULATOR
KNX dimming actuator that controls LED lighting

Categories:

  • Installation bus systems > Dimming actuator for bus system
  • LEGRAND > DOMOTICS MY HOME

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 384,46 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 15-17 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

KNX dimming actuator that controls LED lighting and all other electronic low voltage and low voltage loads. 2 outputs 2,300 S/VA maximum per output. 4 DIN modules
KNX bus systemNo
KNX-RF bus system (radio frequency)No
Radio frequency bus systemNo
LON Bus SystemNo
Powernet Bus SystemNo
Other bus systemsOther
Bidirectional Radio FrequencyNo
ModelControl Module
Type of mountingOther
Width in number of modular spaces3
With bus connectionYes
Detachable bus moduleNo
Input ExtensionsNo
Local Operation/Manual OperationYes
With LED indicatorYes
Number of outputs4
Output power0-300 W
Load TypeUniversal
Max. control current200 mA
voltage100-240 V
Parallel service possibleNo
frequency50-60 Hz
Protection Class (IP)IP20
Compatible con CasambiNo

ETIM for 002654 Installation bus systems (EC001094)

Feature nameWith LED indication (EF005950)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameBus system LON (EF003831)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameBus system KNX (EF001499)
Feature valueNo
Feature nameMax. control current (EF001509)
Feature value200 mA
Feature nameType of load (EF001508)
Feature valueUniversal
Feature nameCompatible with Casambi (EF016431)
Feature valueNo
Feature nameBus system Powernet (EF001501)
Feature valueNo
Feature nameBus system radio frequency (EF001500)
Feature valueNo
Feature nameFrequency (EF000416)
Feature value50 Hz
Feature nameWith bus connection (EF001504)
Feature valueYes
Feature nameNumber of outputs (EF000319)
Feature value4
Feature nameBus system KNX-RF (Radio Frequency) (EF008855)
Feature valueNo
Feature nameModel (EF000010)
Feature valueControl module
Feature nameWidth in number of modular spacings (EF002950)
Feature value3
Feature nameOutput power (EF004479)
Feature value0 W
Feature nameBus module detachable (EF009766)
Feature valueNo
Feature nameVoltage (EF002355)
Feature value100 V
Feature nameRadio frequency bidirectional (EF009466)
Feature valueNo
Feature nameParallel-service possible (EF003878)
Feature valueNo
Feature nameSubstation input (EF003876)
Feature valueNo
Feature nameOther bus systems (EF003811)
Feature valueOther
Feature nameLocal operation/hand operation (EF003914)
Feature valueYes
