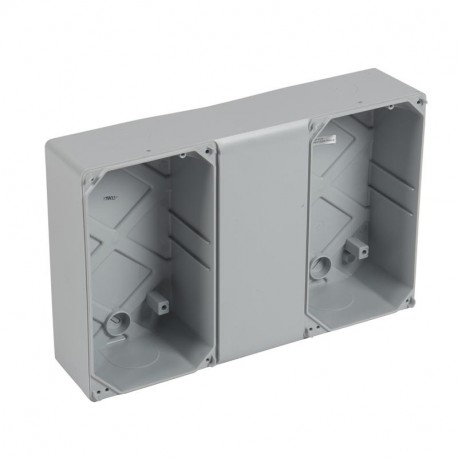

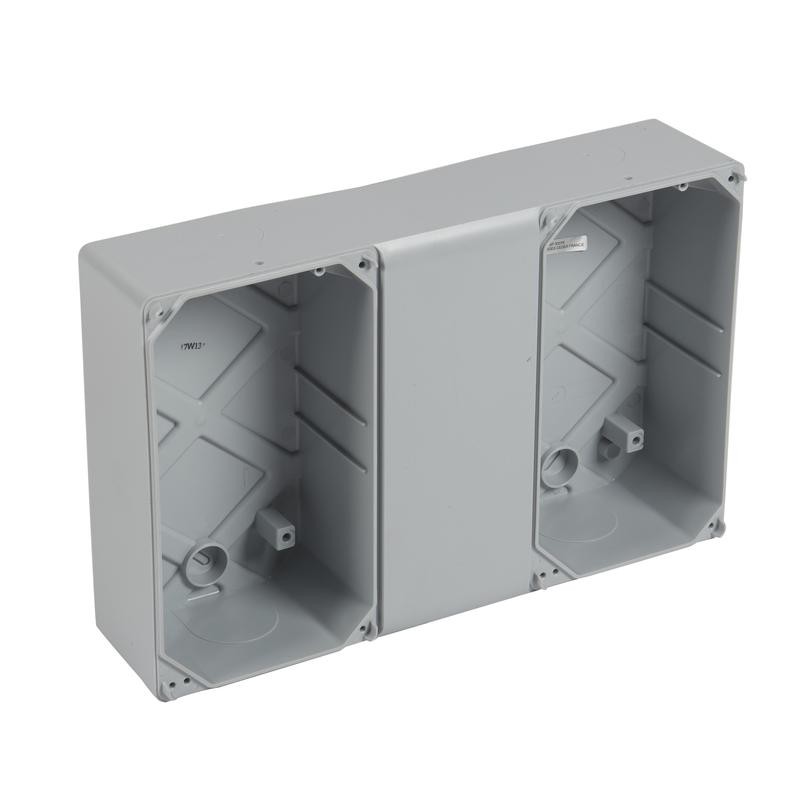

001919 LEGRAND CELL MUNLTIFUNCION HORIZ.12M
001919
LEGRAND
5
CELL MUNLTIFUNCION HORIZ.12M
Cell multi-function horizontal boxes Plexo3 of 12 modules width
Horizontal multifunction cell for 12mod wide Plexo³ boxes
Distribution boards > Small distribution board
DIN MODULAR BOXES
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Product features
Cells multifunction - Are associated with boxes 12 and 18 modules by using the union kit ref. 0 019 67 Support the following elements and accessories: - outlets 16 A and 32 A P17 with wheelbase unified - mechanisms Plexus, IP 55 flush-mounted - controls and signaling Ø22,5 mm - Mounting of controls and accessories by lids cubrebornas P 17, 220 x 125 mm - Box of 12 modules - Depth: 84 mmGeneral characteristics
Boxes Plexo3 - cells multi-function and accessories| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 220 mm |
| Inner depth (EF001131) | 48.5 mm |
| Transparent cover/door (EF006244) | No |
| Type of closure (EF004462) | Other |
| Degree of protection (IP) (EF005474) | IP65 |
| DIN-rail (EF001134) | No |
| Housing material (EF001596) | Plastic |
| With lock (EF006306) | No |
| Mounting method (EF000003) | Surface mounted |
| Number of rows (EF000266) | 1 |
| Cover model (EF009212) | With notch |
| Signal passing door (EF015941) | Yes |
| RAL-number (EF000116) | 7046 |
| Built-in depth (EF000218) | 80 mm |
| Type of covering (EF000339) | Cover |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | Yes |
| Width in number of modular spacings (EF002950) | 12 |
| Built-in height (EF000332) | 216 mm |
| EMC-version (EF001062) | No |
| Neutral terminal block (EF015777) | No |
| Earthing terminal block (EF015776) | No |
| Depth (EF000049) | 84 mm |
| Colour (EF000007) | Grey |
| Width (EF000008) | 340 mm |
| Built-in width (EF000846) | 336 mm |
