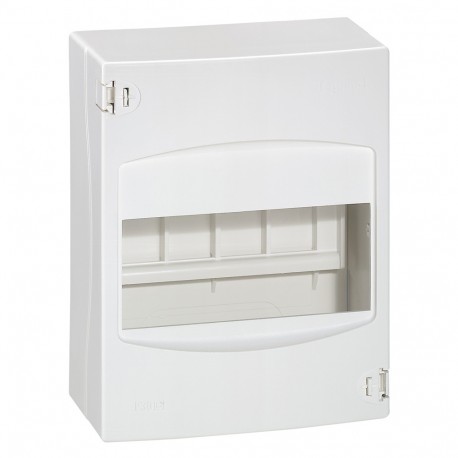

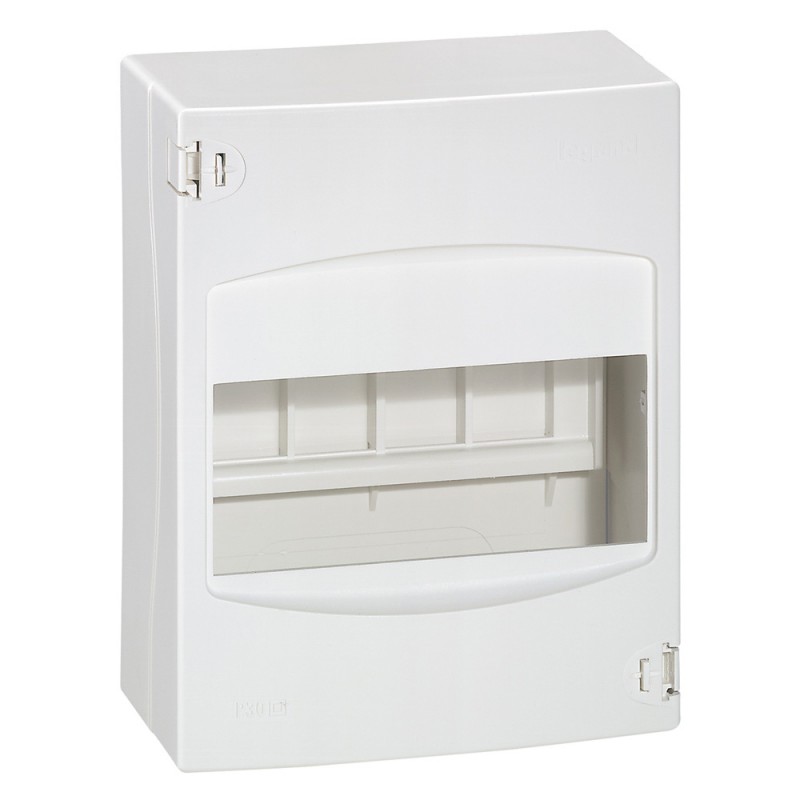

001306 LEGRAND WHITE BOX SUPERF.1 ROW 6MOD
001306
LEGRAND
WHITE BOX SUPERF.1 ROW 6MOD
Box cubrebornas - 6 modules - white RAL 9010
Sealable terminal block box IP30 - A utoextinguishable 850 ºC - 6mod - White
Distribution boards > Small distribution board
DIN MODULAR BOXES
Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND
Best sellers
▲More info
▲Product features
Boxes cubrebornas - Supplied with protective film, cover slip pressure (not fitted) and resealable - Composition: - 1 bottom plate with longitudinal holes of position - 1-lane symmetric, which allows the passage of the wire Box of six modules - Supplied with 1 terminal block for earth-IP 2X with 4 holes from 1,5 to 16 mm2 - Capacity: 6 modules - Height: 160 mm - Length: 128 mm - depth: 74 mmGeneral characteristics
Cubrebornas and box of 27 modules - self-extinguishing properties: resistance of 750 °C to the incandescent thread. - Class II - IP 30 - IK 05 - Meet the standard IEC 62 208: allows you to perform sets in accordance with IEC 61 439-3 - White RAL 9010| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 160 mm |
| Inner depth (EF001131) | 47.5 mm |
| Transparent cover/door (EF006244) | No |
| Type of closure (EF004462) | Other |
| Degree of protection (IP) (EF005474) | IP30 |
| DIN-rail (EF001134) | Yes |
| Housing material (EF001596) | Plastic |
| With lock (EF006306) | No |
| Mounting method (EF000003) | Surface mounted |
| Number of rows (EF000266) | 1 |
| Cover model (EF009212) | With notch |
| Signal passing door (EF015941) | Yes |
| RAL-number (EF000116) | 9003 |
| Built-in depth (EF000218) | 70 mm |
| Type of covering (EF000339) | Cover |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | No |
| Width in number of modular spacings (EF002950) | 6 |
| Built-in height (EF000332) | 156 mm |
| EMC-version (EF001062) | No |
| Neutral terminal block (EF015777) | No |
| Earthing terminal block (EF015776) | Yes |
| Depth (EF000049) | 74 mm |
| Colour (EF000007) | White |
| Width (EF000008) | 128 mm |
| Built-in width (EF000846) | 124 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 001306 EN_001301.pdf | 255 Kbytes |
 |
