LEGRANDDIN MODULAR BOXES001304 LEGRAND SUPERF.1 ROW 4MOD WHITE BOX

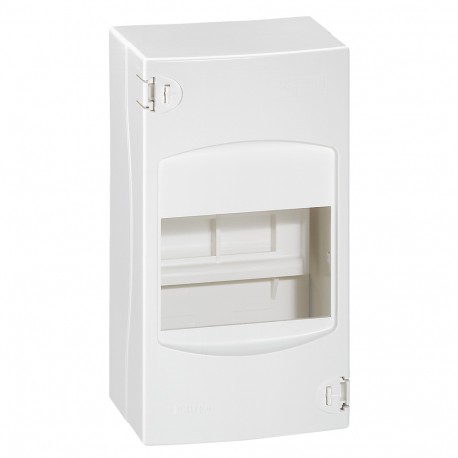

LEGRAND 001304 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

001304 LEGRAND SUPERF.1 ROW 4MOD WHITE BOX

Code: 001304

Manufacturer: LEGRAND

Description:

SUPERF.1 ROW 4MOD WHITE BOX
WHITE BOX SUPERF.1 ROW, 4MOD
Box cubrebornas - 4 modules - white RAL 9010
Sealable terminal block box IP30 - A utoextinguishable 850 ºC - 4mod - White

Categories:

  • Distribution boards > Small distribution board
  • LEGRAND > DIN MODULAR BOXES

Brand new product in its original packaging covered by the warranties and certifications provided by LEGRAND

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 92,72 €

Unit Price: 9,272 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product features

Boxes cubrebornas - Are provided with shrinkable film, cover slip pressure (not fitted) and resealable - Composed by: - 1 background with holes elongated positioning - 1-lane symmetrical which allows the cable Box 1 to 4 modules - Capacity: 4 modules - Height: 160 mm Width: 90 mm - Thickness: 74 mm

General characteristics

Cubrebornas and box of 27 modules - self-extinguishing properties: resistance of 750 °C to the incandescent thread. - Class II - IP 30 - IK 05 - Meet the standard IEC 62 208: allows you to perform sets in accordance with IEC 61 439-3 - White RAL 9010

ETIM for 001304 Distribution boards (EC000214)

Feature nameHeight (EF000040)
Feature value160 mm
Feature nameInner depth (EF001131)
Feature value47.5 mm
Feature nameTransparent cover/door (EF006244)
Feature valueNo
Feature nameType of closure (EF004462)
Feature valueOther
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP30
Feature nameDIN-rail (EF001134)
Feature valueYes
Feature nameHousing material (EF001596)
Feature valuePlastic
Feature nameWith lock (EF006306)
Feature valueNo
Feature nameMounting method (EF000003)
Feature valueSurface mounted
Feature nameNumber of rows (EF000266)
Feature value1
Feature nameCover model (EF009212)
Feature valueWith notch
Feature nameSignal passing door (EF015941)
Feature valueYes
Feature nameRAL-number (EF000116)
Feature value9003
Feature nameBuilt-in depth (EF000218)
Feature value70 mm
Feature nameType of covering (EF000339)
Feature valueCover
Feature nameWith mounting plate (EF000118)
Feature valueNo
Feature nameExtension possible (EF001088)
Feature valueNo
Feature nameWidth in number of modular spacings (EF002950)
Feature value4
Feature nameBuilt-in height (EF000332)
Feature value156 mm
Feature nameEMC-version (EF001062)
Feature valueNo
Feature nameNeutral terminal block (EF015777)
Feature valueNo
Feature nameEarthing terminal block (EF015776)
Feature valueNo
Feature nameDepth (EF000049)
Feature value74 mm
Feature nameColour (EF000007)
Feature valueWhite
Feature nameWidth (EF000008)
Feature value90 mm
Feature nameBuilt-in width (EF000846)
Feature value86 mm

DATASHEET - PDF

Title
Size
Type
001304 EN_001301.pdf
255 Kbytes
