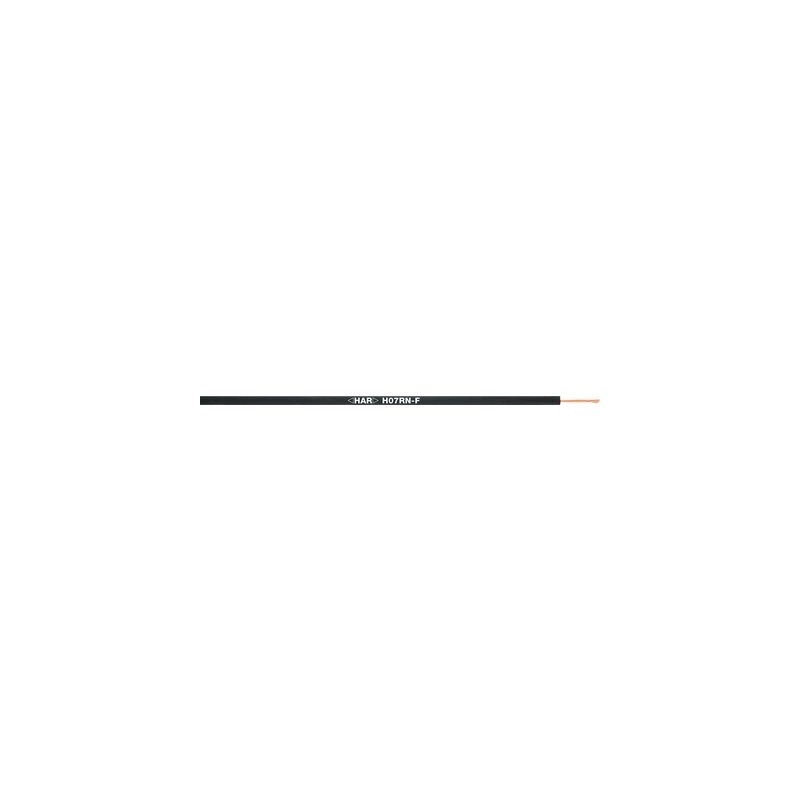

4533062 H07RN-F, ENHANCED VERSION 4X1 LAPP Power and control cable, halogen-free, Long-run submersion, Bendi..

Benefits

• Arrangements made of single-core, rubber-sheathed cables H07RN-F can be used for short circuit-proof and short-to-ground-proof installations in accordance with IEC 60364-5-52/ HD 60364-5-52/ VDE 0100 Part 520
• More water-resistant than H07RN-F and H07RN8-F
• Conductor temperature range more suitable for outdoor installation and wider than H07RN-F, H07ZZ-F, H07BN4-F und NSSHÖU

Application range

• Medium, mechanical stress and industrial and agricultural use as well as for handheld and power supply devices (H07RN-F according to EN 50565-2)
• Drip loop torsion between the nacelle and the tower of wind turbine generators/ windmills
• Outdoors acc. EN 50565-2
• For buildings or industrial plants with a high density of people or valuable assets

Product features

• Oil resistant according to EN 60811-404; Good resistance to abrasion, atmospheric agents, grease and mineral oils
• Ozone- (acc. EN 60811), UV-, Cold- (-40 °C flexible at the conductor) and Heat-resistant (+90 °C at the conductor)
• Drip loop torsion resistant (wind turbine) ==>TW-0, TW-1 and TW-2: -40 °C to +90 °C/ 2,000 cycles (5,000 cycles from +5 °C)/ torsion angle of +/-150 ° per metre at one revolution per minute
• Long-time water submersion (AD8) down to 100 m without interruption (no drinking water, minimum water temperature of +5 °C, standing water only, no areas with boat/ ship/ submarine traffic)
• Halogen-free according to EN 60754 (sub-parts -1 and -2),
  flame-retardant according to IEC 60332-1-2 and low smoke density (LS) according to EN 61034-2

Norm references / Approvals

• <HAR> H07RN-F cable type approval according to EN 50525-2-21

Product Make-up

• Conductor made of bare copper wires
• Core insulation: special rubber
• Outer sheath: special rubber compound

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001578
• ETIM 5.0 Class-Description: Flexible cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001578
• ETIM 6.0 Class-Description: Flexible cable

Core identification code

• Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
• From 6 cores: black with white numbers

Conductor stranding

• Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Torsion movement in WTG

• TW-0 & TW-2, refer to Appendix T0

Minimum bending radius

• Moved: 6 x Outer diameter
• Fixed installation: 4 x Outer diameter

Nominal voltage

• U0/U: 450/750 V

Test voltage

• 2500 V AC

Protective conductor

• G = with GN-YE protective conductor
• X = without protective conductor

Current rating

• According to IEC 60364-5-52/ VDE 0298-4
• EN 50565-1/ VDE 0298-565-1

Temperature range

• Occasionally moved: -40°C to +90°C
• Fixed installation: -50°C to +90°C
