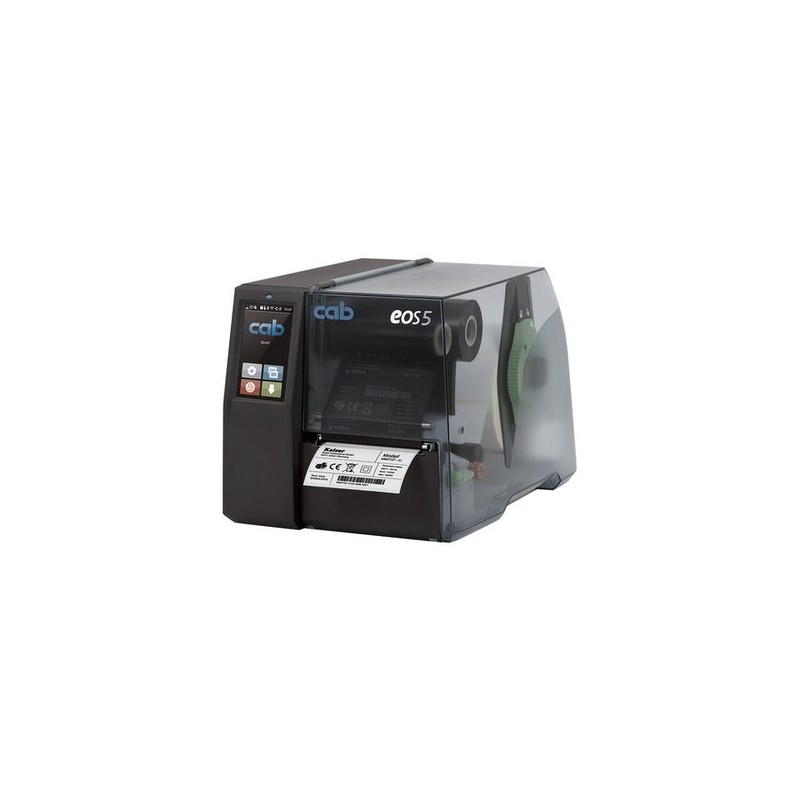

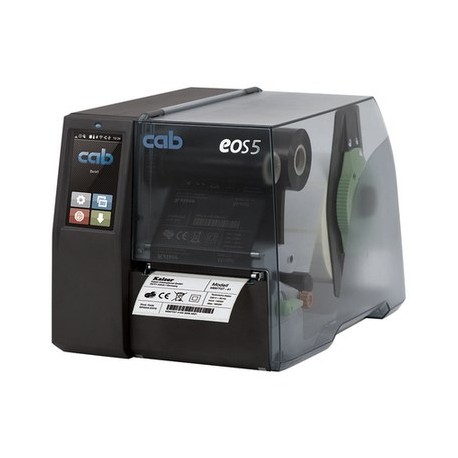

83259598 FLEXIMARK Thermoprint EOS4/300 LAPP Thermal printer SQUIX and EOS5

Benefits

• High print speed (up to 150 mm/sec)
• High print resolution: 300 dpi
• Simple communication with FLEXIMARK® Software
• Basic maintenance such as cleaning the label sensor, changing the print head or print roller, can be easily done by yourself

Application range

• Printing on a variety of different materials (among others FLEXIMARK® shrink tube, cablelabel PUR and TA foam component marking)
• The thermal transfer printing method increases the smudge and scratch resistance of the printed surface, and provides increased resistance to oils and chemicals as well

Note

• For cutting of e.g. shrink tubes use optional cutter for the EOS 5
• For perforating flat shrink tubes use thermal transfer printer SQUIX together with the optional perforation cutter

Included

• FLEXIMARK® Software
• FLEXIMARK® thermal printer SQUIX or EOS5 with operating manual and service manual
• Windows® driver
• FLEXIMARK® Ribbon R71 55/360 resin BK (article number 83259604)
• Power supply USB cable (length 1.8 m)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001675
• ETIM 5.0 Class-Description: Accessories for fax/printer/MFC

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001675
• ETIM 6.0 Class-Description: Accessories for fax/printer/MFC

Dimensions

• SQUIX: 274x242x446 mm (HxWxD)
• EOS5: 245x264x412mm (HxWxT)

Label rolls

• Material thickness:
  0.055-1.2 mm (SQUIX)
  0.055-0.7 mm (EOS5)
  Carrier width:
  10-120 mm (SQUIX)
  10-116 mm (EOS5)
• Max. core diameter Ø:
  38.0-100.0mm (SQUIX)
  38-76mm (EOS5)

Ribbons

• Run length up to 500m (SQUIX) or 360m (EOS5)

Speed

• Up to 150.00 mm/s

Weight

• SQUIX: 9.0 kg
• EOS5: 5 kg

Material

• Labels or continuous material on coils
