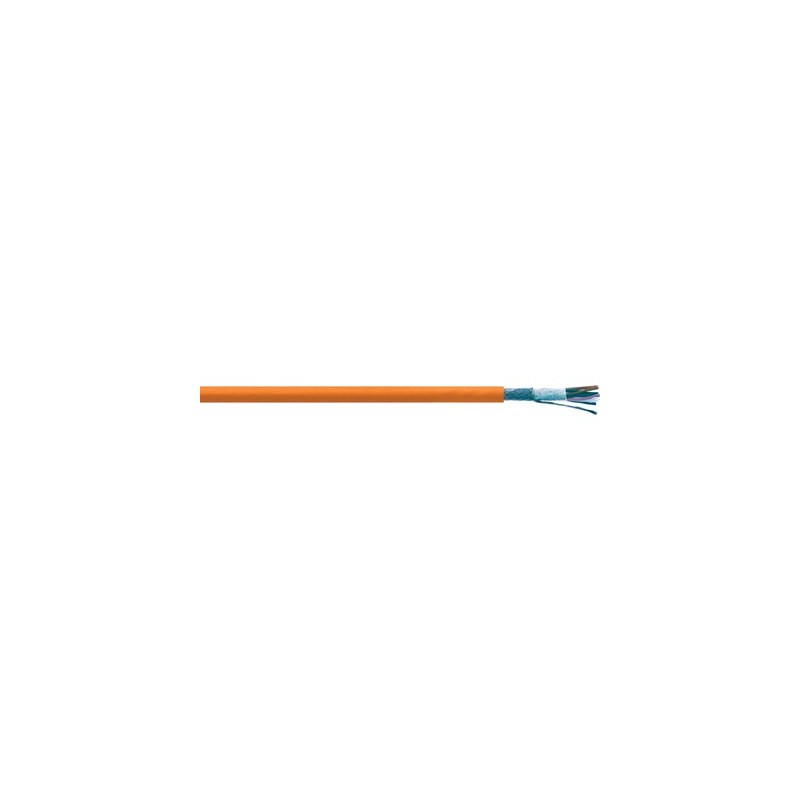

7072400 SERVO LK INX-0209 4X2X0,25+2X1 LAPP SERVO LK INX-0209 4X2X0,25+2X1

Benefits

• Allows much faster speed and accelerations which increases the economic efficiency of the machines
• Multi-standard certification reduces part varieties and saves costs
• Increased durability under harsh conditions thanks to robust PUR outer sheath
• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media

Application range

• Connecting cable between servo controller and encoder/resolver
• Connecting cable between servo controller and motor
• Particularly in wet areas of machine tools and transfer lines
• Assembly lines, production lines, in all kinds of machines

Product features

• Designed for 5 million alternating bending cycles
• For horizontal travel distances up to 100m
• Abrasion and cut-resistant, halogen-free, oil-resistant
• Flame-retardant according to IEC 60332-1-2 & CSA FT1

Norm references / Approvals

• Power cable:
  UL Style 20234, CSA AWM I/II A/B
• Signal cables:
  UL Style 20236, CSA AWM I/II A/B
• UL File No. E63634
• For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

• In accordance with INDRAMAT® standard INK (also suitable for pre-assembled versions, IKS and IKG)
• Core insulation: TPE
• Refer to data sheet for more details
• Tinned-copper braiding
• PUR outer sheath, orange (RAL 2003)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000104
• ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000104
• ETIM 6.0 Class-Description: Control cable

Core identification code

• Details see datasheet

Conductor stranding

• Extra-fine wire according to IEC 60228 class 6

Minimum bending radius

• Power cable:
  Fixed installation: 4 x outer diameter
  For flexible use: 7.5 x outer diameter
• Signal cables:
  Fixed installation: 5 x outer diameter
  For flexible use: 10 x outer diameter

Nominal voltage

• Power cable:
  - Power cores:
  U0/U 600/1000 V (IEC)
  1000 V (UL/CSA)
  - Control cores:
  250 V AC (IEC)
  1000 V (UL/CSA)
• Signal cables:
  300 V (IEC), 300 V (UL/CSA)

Test voltage

• Power cable:
  Power cores: 4000 V
  Control cores: 2000 V
• Signal cables: 500 V

Protective conductor

• G = with GN-YE protective conductor

Temperature range

• Flexing: -30°C to +80°C
• Fixed installation: -50°C to +80°C

Bending cycles & operation parameters

• 5 mio. cycles
