LAPPEPIC rectangular70474000 H-A 16 AD PANEL MOUNT BASE LAPP H-A 16 AD PANEL MOUNT BASE

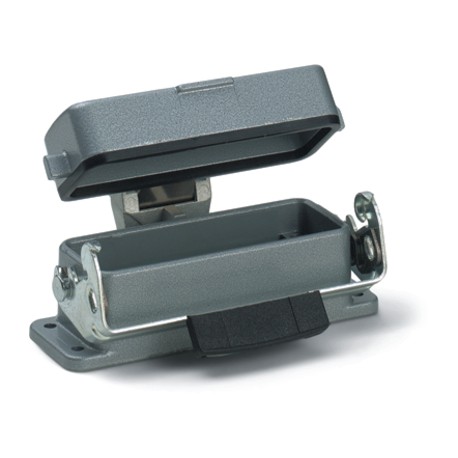

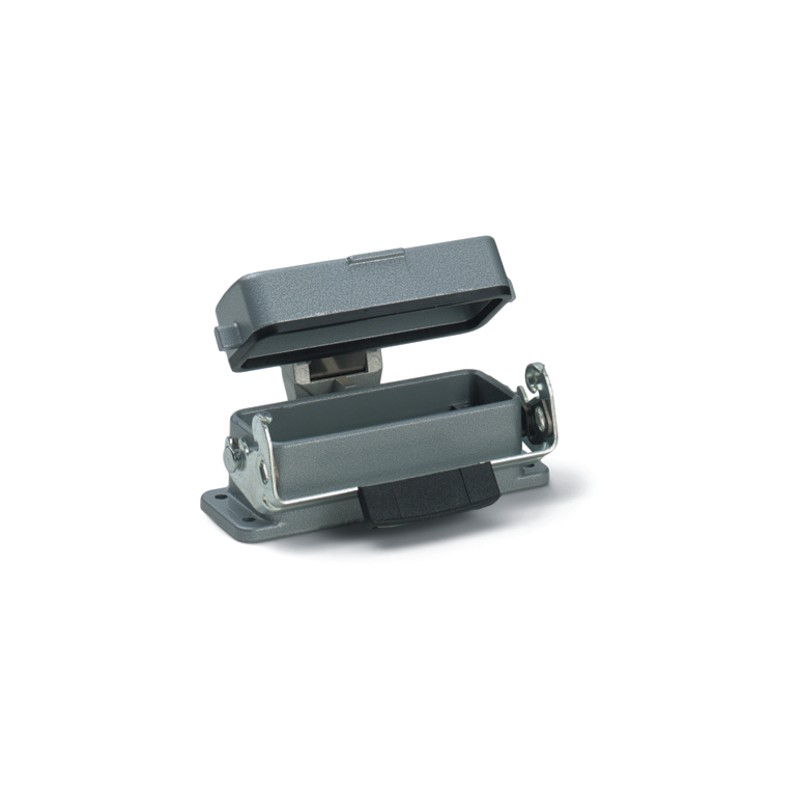

LAPP 70474000 70474000 H-A 16 AD PANEL MOUNT BASE - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

70474000 H-A 16 AD PANEL MOUNT BASE LAPP H-A 16 AD PANEL MOUNT BASE

Reference: 70474000

Catalog Number: H-A 16 AD PANEL MOUNT BASE

Manufacturer: LAPP

Description:

H-A 16 AD PANEL MOUNT BASE
EPIC® H-A 16 AD-LB

Categories:

  • Connectors > Housing for rectangular connectors
  • LAPP > EPIC rectangular

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 98,95 €

Unit Price: 19,79 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

The compact housing for rectangular connectors is ideal for use in machine and device manufacturing and is supplied with a seal.

  • Metal lid with sturdy hinge
  • Protection rating UL50E tested

Benefits

  • Small and compact, for applications with high number of contacts

Application range

  • Machine and equipment manufacturing
  • Control engineering
  • Electronic laboratory

Product features

  • H-A case: Wall base
  • Single lever
  • Metal cover
  • Included: flat gasket

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C

DATASHEET - PDF

Title
Size
Type
70474000 H-A 16 AD PANEL MOUNT BASE 70474000 EN_70474000.pdf
311 Kbytes
PDF CATALOGUE LAPP EN
69 Mbytes
