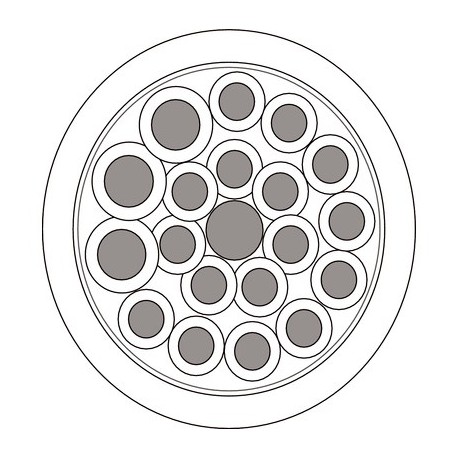

7038881 UNITRONIC SENSOR Li9Y11Y 3X1,0+8x0,5UL LAPP UNITRONIC SENSOR Li9Y11Y 3X1,0+8x0,5UL

Benefits

• Cost efficient and rational wiring for S/A boxes with detachable master cable connection
• Can be used universally for S/A installations

Application range

• Automation technology
• Mechanical engineering
• Plant engineering
• Tool shop
• Automotive industry

Product features

• Cores for Power Supply:
  3 x 0.75 mm2 and 3 x 1.0 mm2
• Cores for Signalling cable:
  4 x 0.34 mm2, 8 x 0.5 mm2, 16 x 0.5 mm2
• Suitable for drag chains
• Halogen-free according to VDE 0472-815
• Flame-retardant according to UL 1581 FT-2

Norm references / Approvals

• UL-AWM-Style 21198 (80 °C / 300 V)

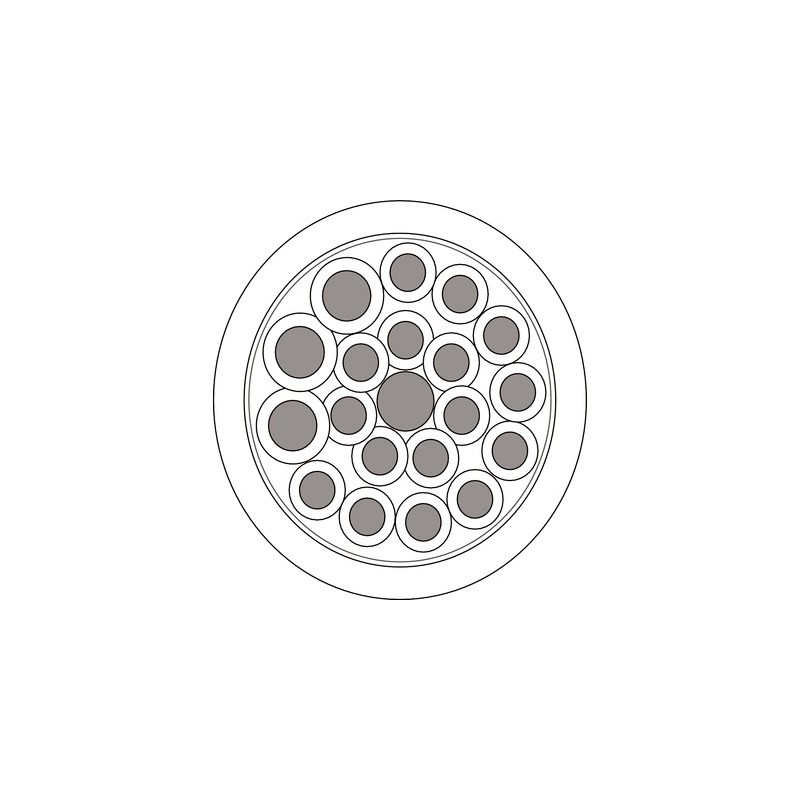

Product Make-up

• Fine-wire, bare copper strand
• Single wire diameter:
  0.34 mm2 = (43 x 0.10 mm)
  0.5mm2 = (19 x 0.18 mm)
  0.75 mm2 = (21 x 0.205 mm)
  1.0 mm² = (55 x 0.15 mm)
• Core insulation: PP
• Outer sheath: PUR, black

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001578
• ETIM 5.0 Class-Description: Flexible cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001578
• ETIM 6.0 Class-Description: Flexible cable

Conductor stranding

• Stranded conductor, fine-wire

Minimum bending radius

• Flexing: 10 x outer diameter

Temperature range

• Fixed installation: -40°C to +80°C
• Flexing: -5°C to +80°C
