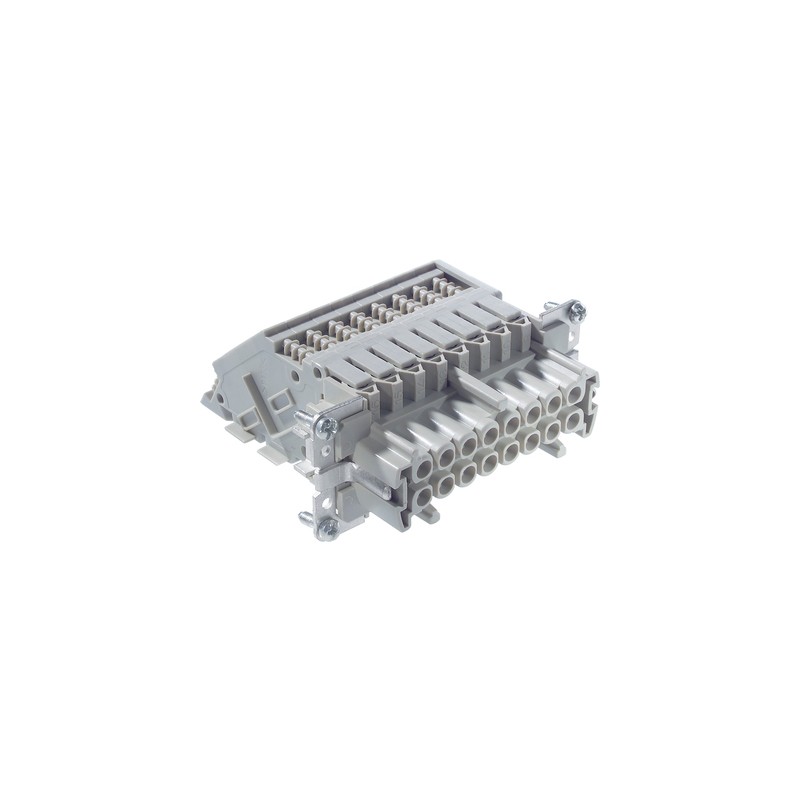

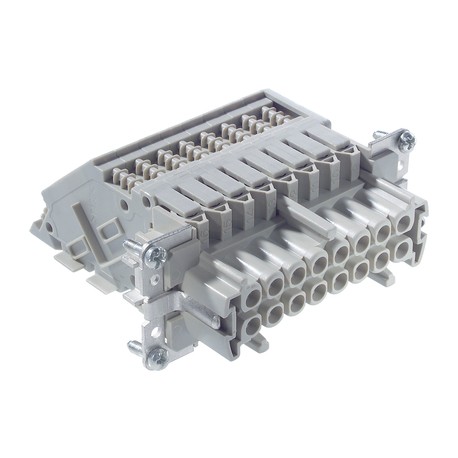

70315100 TB-H-BE 16 BRE LAPP TB-H-BE 16 BRE TERMINAL BLOCK ADAPTER
70315100
TB-H-BE 16 BRE
LAPP
10
TB-H-BE 16 BRE TERMINAL BLOCK ADAPTER
EPIC® TB-H-BE 16
Connectors > Contact insert for rectangular connectors
EPIC rectangular
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲The standard insert is ideal for use in control cabinets, has 16 contacts and can be used, for example, in investment construction.
Plug connection for control cabinets
Benefits
- Standard H-BE inserts for use with switch cabinets
- Pluggable with H-BE male inserts in hoods
- Fastening on side = "left" means that when mounting the terminal adapter on the left wall of a control cabinet, the PE connection and pin "1" are on the "top" side
Application range
- Control cabinet manufacturing
- Plant engineering
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000438
- ETIM 5.0 Class-Description: Contact insert for industrial connectors
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000438
- ETIM 6.0 Class-Description: Contact insert for industrial connectors
Rated voltage (V)
- IEC: 500 VUL: 600 VCSA: 600 V
Rated impulse voltage
- 6 kV
Rated current (A)
- IEC: 16 A
UL: 16 A
CSA: 16 A
Pollution degree
- 3
Contacts
- Copper alloy, hard silver-plated
Number of contacts
- 16 + PE
Termination methods
- Screw termination: 0.5 - 4.0 mm²
Stripping length (mm)
- 13
Cycle of mechanical operation
- 200
VDE-tested
- UL-tested:
UL File Number: E75770
Temperature range
- -40°C to +100°C, short-term up to +125°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 70315100 TB-H-BE 16 BRE 70315100 EN_70314100.pdf | 472 Kbytes |
|
