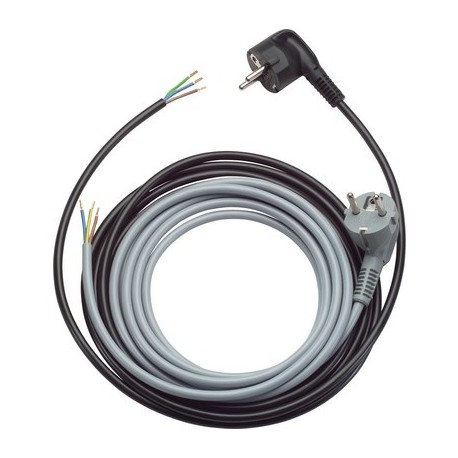

70261131 ÖLFLEX PLUG H03VV-F 3G0,75/2000 BK LAPP ÖLFLEX PLUG H03VV-F 3G0,75/2000 BK

Application range

• Electrical devices

Product features

• For additional information regarding international plugs, please refer to our cable configurator at www.lappkabel.de
• Apart from the cable related application restrictions to be paid attention to according to the application standard EN 50565-2 for this PVC cable H03VV-F, the fact that brighter outer sheath colours deviating from black significantly reduce the UV resistance of the outer sheath and, thus, the outdoor usability of the entire, finished cable has to be respected, too

Product Make-up

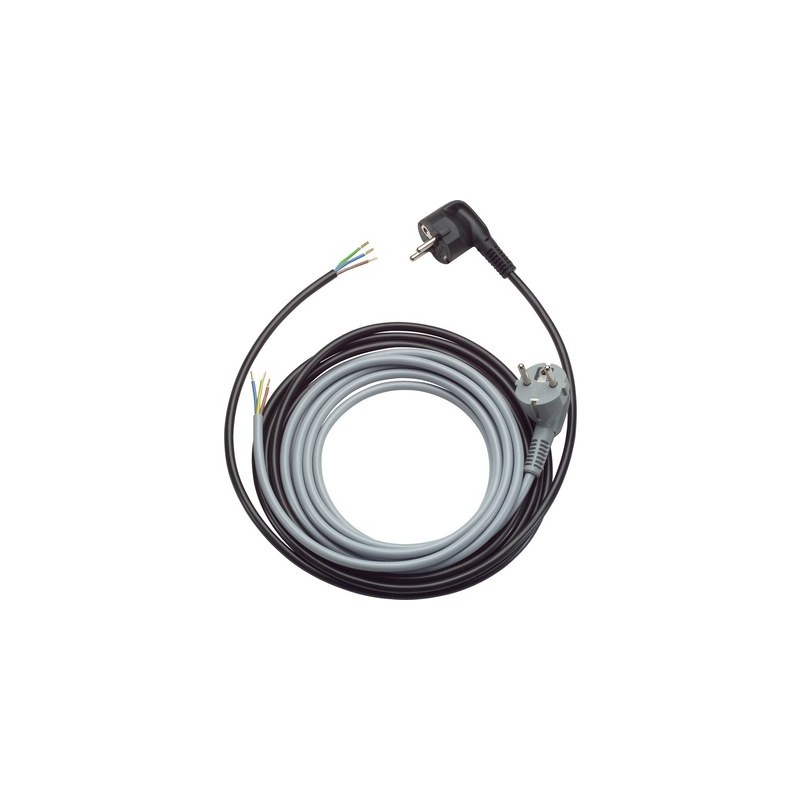

• 1st end: Gated, right-angled earthing-type plug with double earthing contact
• Other end: 30 mm dismantled, with protection sleeves for the ends of the conductor
• Alternatively, on request: 1st end with moulded right-angled earthing-type plug with twin earthed contact, 2nd end with moulded, straight IEC coupling (see image)

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001576
• ETIM 5.0 Class-Description: Power cord

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001576
• ETIM 6.0 Class-Description: Power cord

Core identification code

• HD 308/VDE 0293-308: 3-core with protective conductor

Conductor stranding

• Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5

Nominal voltage

• U0: 250 V AC

Test voltage

• 2000 V

Protective conductor

• G = with GN-YE protective conductor

Temperature range

• 5°C to 60°C
