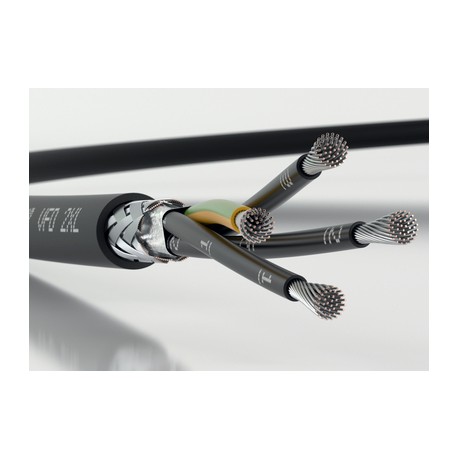

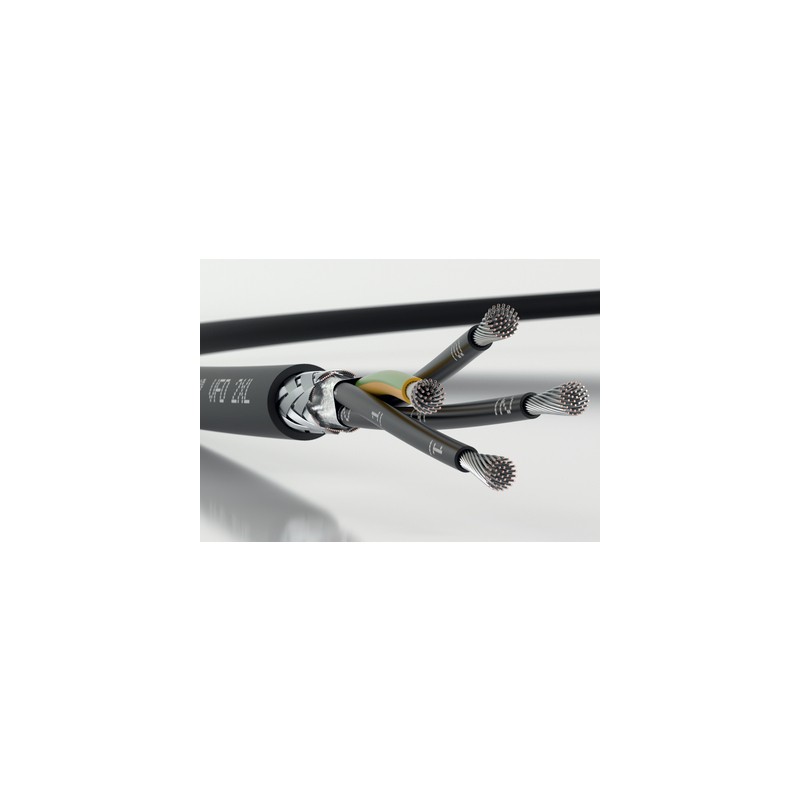

700702 ÖLFLEX VFD 2XL 4G4 LAPP ÖLFLEX VFD 2XL 4G4

Benefits

• Reduced insulation wall thickness, thus space-saving installation
• Multi-standard certification reduces part varieties and saves costs
• Cost-saving, easy installation due to omission of closed raceways (suitable for open wiring)
• Low capacitance design enables longer cable connection between frequency converter and motor
• UL TC-ER and c(UL) CIC/TC approved

Application range

• Connecting cable between Frequency converter and motor
• For fixed installation or applications with occasional movements
• Class 1 Division 2 per NEC Articles 336, 501
• Plant engineering
• Industrial machinery and machine tools

Product features

• Oil-resistant according to UL OIL RES I & II
• Flame-retardant according to CSA FT4
  UL Vertical-Tray Flame Test
• 90°C Wet or Dry; -40°C Cold Bend;-25°C Cold Impact
• Sunlight Resistant; Direct Burial

Norm references / Approvals

• UL TC-ER (exposed run) per UL 1277
• Class 1 Division 2 per NEC Articles 336, 501
• Flexible Motor Supply Cable per UL 2277
• c(UL) CIC/TC FT4; cRU AWM I/II A/B FT4
• CE (50V - 1kV)

Product Make-up

• Fine-wire, tinned-copper conductor
• Core insulation: XLPE
• Aluminum-coated foil
• Screening: wrapped with braided tinned-copper wires
• Outer sheath: Specially formulated thermoplastic elastomer (TPE), black

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000057
• ETIM 5.0 Class-Description: Low voltage power cable

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000057
• ETIM 6.0 Class-Description: Low voltage power cable

Core identification code

• Black with white numbers

Certifications

• USA: UL TC-ER, WTTC, Flexible Motor Supply
  Canada: c(UL) CIC/TC FT4, cRU AWM I/II A/B FT4

Conductor stranding

• Fine wire

Minimum bending radius

• Occasional flexing: 15 x outer diameter
• Fixed installation: 7.5 x outer diameter

Nominal voltage

• UL TC: 600V/2000V
  UL Flexible Motor Supply: 1000V
  c(UL) CIC/TC: 600V
  cRU AWM: 1000V
• IEC U0/U: 600/1000 V

Test voltage

• 6000 V

Protective conductor

• G = with GN-YE protective conductor

Temperature range

• Occasional flexing: -25°C to +90°C
  Fixed installation: -40°C to +90°C
