> LAPP>Accessories>62200490 End clamp flat I-Beam LAPP End clamp flat I-Beam
Previous Product Next Product

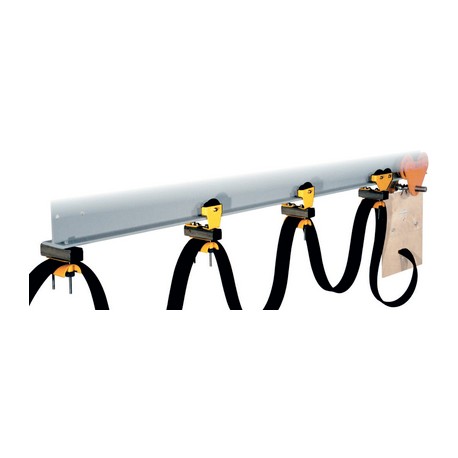

62200490 End clamp flat I-Beam LAPP End clamp flat I-Beam View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

62200490 End clamp flat I-Beam LAPP End clamp flat I-Beam

62200490

End clamp flat I-Beam

LAPP

End clamp flat I-Beam

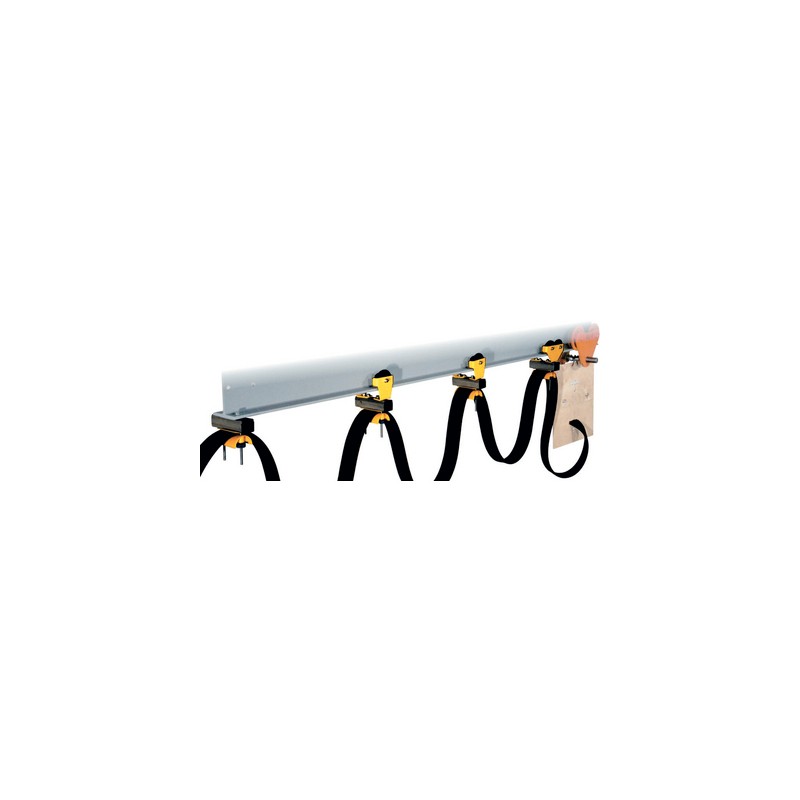

T-beam energy trolley system

More details


Cable carrying systems > Accessories/spare parts for cable carrying system

Accessories

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $24.22
Unit price: $24.22

Quantity Price
1+$24.22
2+$24.23
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Lapp Group offers a cable conveying system for both flat and round cables.

Space-saving fixation, since there is no lateral displacement with respect to the beam

proceeds

  • Careful cable ties prevent severe cable bending

Scope of use

  • Crane and transport machinery
  • For elevators and transport facilities
  • Machine building
  • Not suitable for applications in explosive environments

Notice

  • Round- and flat cables are not allowed to be combined side by side or below each other
  • Do not mount more than three round cable clamps one underneath the other
  • Radius of curvature on the bracket corresponds to the value of a fixed installation

Product composition

  • The installation of a system depends on various criteria, for example: maximum cable drop (weight of the cable) and working duration.

ETS Classification 5

  • ETIM 5.0 Class-ID: EC002935
  • ETIM 5.0 Class-Description: Energy Carrier Accessory

General

  • Max load capacity: 20 kg

Material

  • Metal parts: galvanized steel Tweezers: polyamide 6

Temperature range

  • from -40 °C to +120 °C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE LAPP EN.pdf 58 Mbytes
