LAPPAccessories62200449 End stop C40 LAPP End stop C40

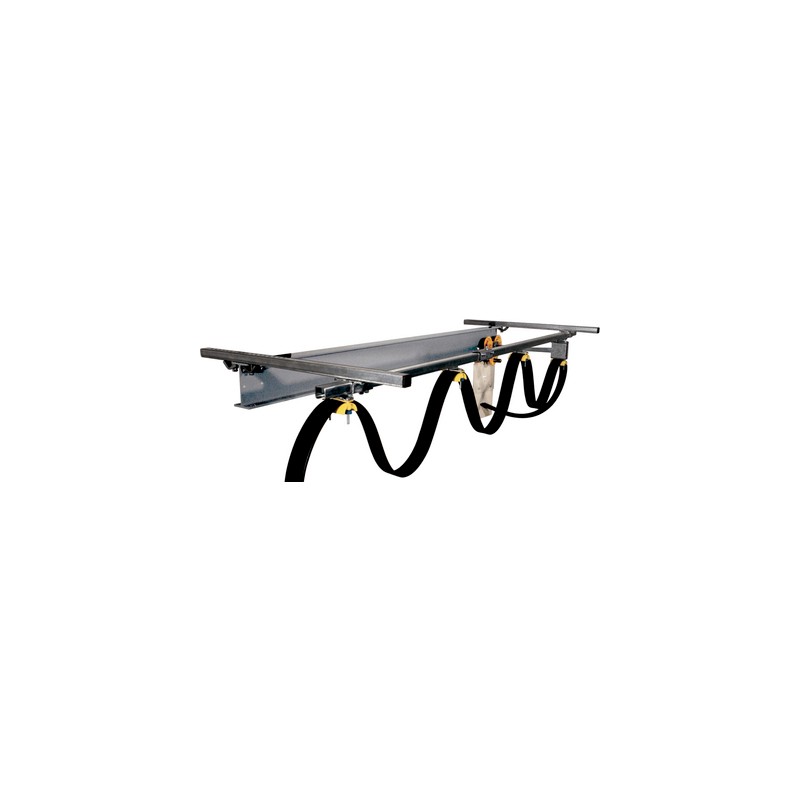

LAPP 62200449 62200449 End stop C40 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

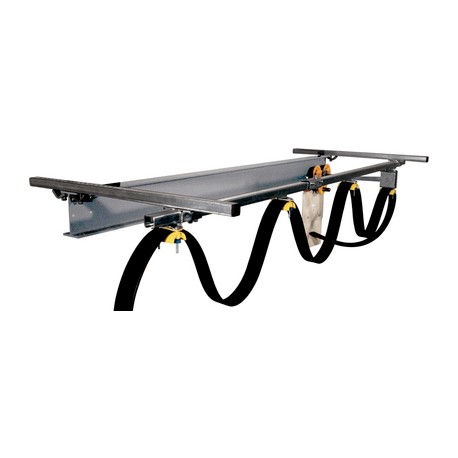

62200449 End stop C40 LAPP End stop C40

Reference: 62200449

Catalog Number: End stop C40

Manufacturer: LAPP

Description:

End stop C40
Energy trolley system for C-profile rails

Categories:

  • Cable carrying systems > Accessories/spare parts for cable carrying system
  • LAPP > Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 11,29 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Lapp Group offers a cable conveying system for both flat and round cables.

Calculation tool on our website (in information center: cable accessories)

proceeds

  • Careful cable ties prevent severe cable bending
  • Dustproof ball bearings (wheels) ensure smooth ride on the rails

Scope of use

  • Crane and transport machinery
  • For elevators and transport facilities
  • Machine building
  • Washing facilities
  • Not suitable for applications in explosive environments

Notice

  • Round- and flat cables are not allowed to be combined side by side or below each other
  • Do not mount more than three round cable clamps one underneath the other
  • Radius of curvature on the bracket corresponds to the value of a fixed installation
  • Energy trolleys with addition "b" are suitable for cables with large bending radius (see data sheet)

Delivery

  • Delivery length profile rail C 6 m

Product composition

  • The installation of a system depends on various criteria, for example: maximum cable drop (weight of the cable) and working duration.

ETS Classification 5

  • ETIM 5.0 Class-ID: EC002935
  • ETIM 5.0 Class-Description: Energy Carrier Accessory

ETTIM Rating 6

  • ETIM 6.0 Class-ID: EC002935
  • ETIM 6.0 Class-Description: Energy Carrier Accessory

General

  • Max load capacity: C30 system: 20 kg C40 system: 32 kg

Material

  • Metal parts: galvanized steel Tweezers: polyamide 6

Temperature range

  • from -40 °C to +120 °C
