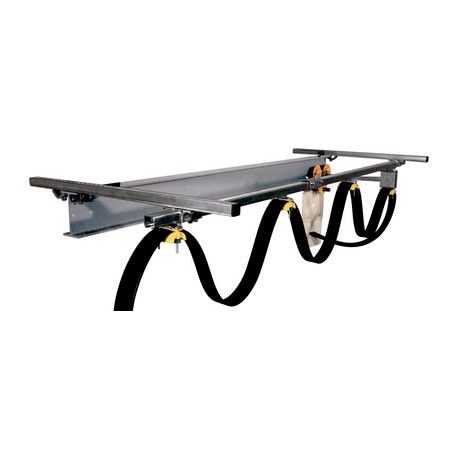

62200447 Towing trolley flat C40 35x72 LAPP Towing trolley flat C40 35x72
62200447
Towing trolley flat C40 35x72
LAPP
Towing trolley flat C40 35x72

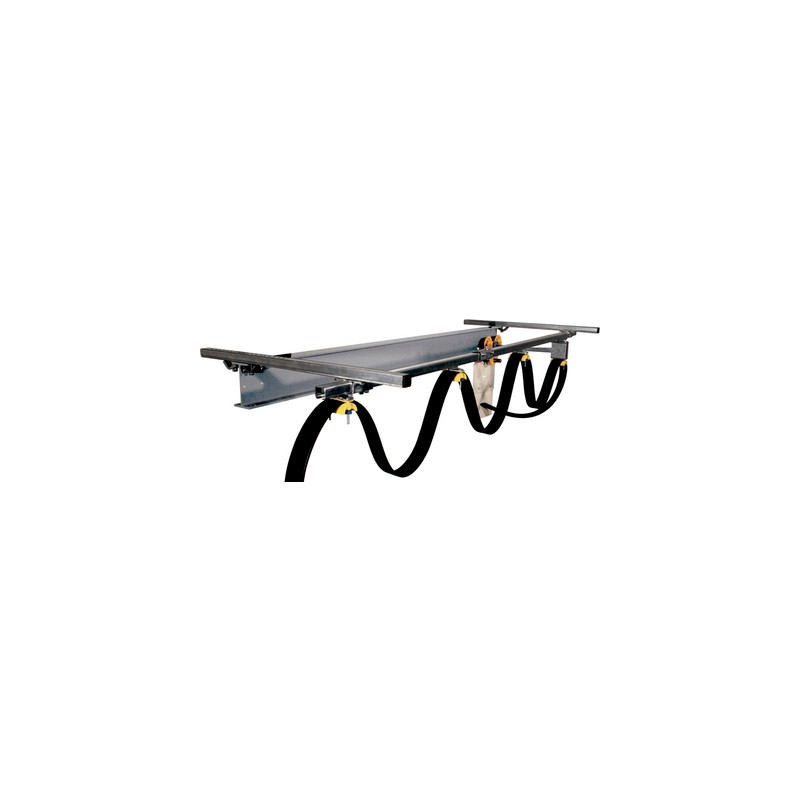

Energy trolley system for C-profile rails
Cable carrying systems > Accessories/spare parts for cable carrying system
Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Lapp Group offers a cable conveying system for both flat and round cables.
Calculation tool on our website (in information center: cable accessories)
proceeds
- Careful cable ties prevent severe cable bending
- Dustproof ball bearings (wheels) ensure smooth ride on the rails
Scope of use
- Crane and transport machinery
- For elevators and transport facilities
- Machine building
- Washing facilities
- Not suitable for applications in explosive environments
Notice
- Round- and flat cables are not allowed to be combined side by side or below each other
- Do not mount more than three round cable clamps one underneath the other
- Radius of curvature on the bracket corresponds to the value of a fixed installation
- Energy trolleys with addition "b" are suitable for cables with large bending radius (see data sheet)
Delivery
- Delivery length profile rail C 6 m
Product composition
- The installation of a system depends on various criteria, for example: maximum cable drop (weight of the cable) and working duration.
ETS Classification 5
- ETIM 5.0 Class-ID: EC002935
- ETIM 5.0 Class-Description: Energy Carrier Accessory
ETTIM Rating 6
- ETIM 6.0 Class-ID: EC002935
- ETIM 6.0 Class-Description: Energy Carrier Accessory
General
- Max load capacity: C30 system: 20 kg C40 system: 32 kg
Material
- Metal parts: galvanized steel Tweezers: polyamide 6
Temperature range
- from -40 °C to +120 °C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
