62200438 Clamp round 17-25mm LAPP Clamp round 17-25mm
62200438
Clamp round 17-25mm
LAPP
Clamp round 17-25mm
Cable trolley system steel wire
Cable carrying systems > Accessories/spare parts for cable carrying system
Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info

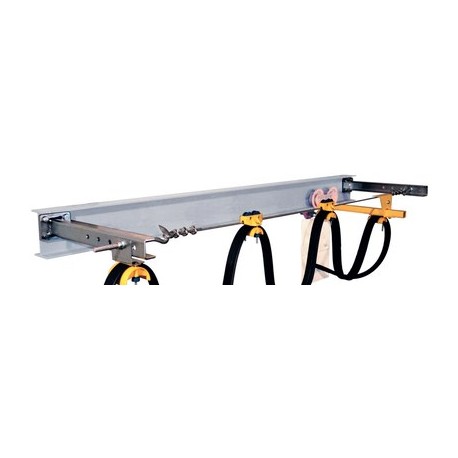

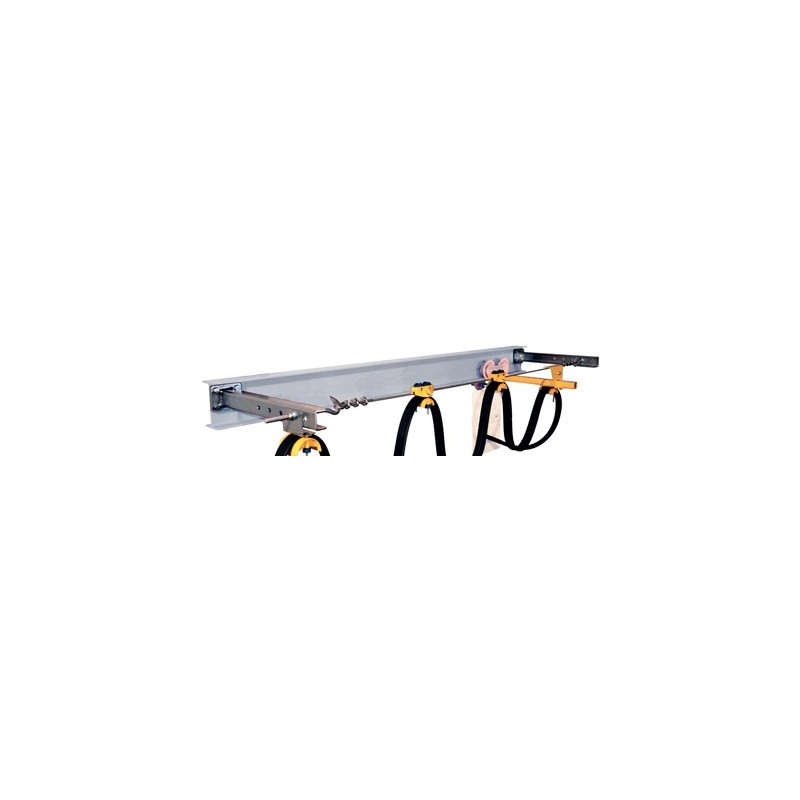

▲Lapp Group offers a complete cable trolley system both for flat cables and for round cables.
For cables with lower weight (e.g. pendant station application)
Benefits
- Gentle cable clamps prevent the cables from sharp bends
Application range
- For hoisting equipment and conveyor systems
- Mechanical engineering
- Not suitable for applications in explosive environments
Note
- Round- and flat cables are not allowed to be combined side by side or below each other
- Don't assemble more than three clamps for round cables below each other
- Bending radius on the bracket corresponds to a fixed installation
Product Make-up
- The installation of a system depends on various criteria, e.g. maximum cable slack (cable weight) and working length.
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002935
- ETIM 5.0 Class-Description: Accessories for cable carrying system
General
- Max. cable load: 6 kg
Material
- Metal parts: Galvanized steel
Clamps: Polyamide 6
Temperature range
- -40°C to +120°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 62200438 Clamp round 17-25mm 62200438 EN_62200437.pdf | 265 Kbytes |
|
