61822760 PC 40/Z LAPP Marking rings PC 40/Z View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

61822760 PC 40/Z LAPP Marking rings PC 40/Z

61822760

PC 40/Z

LAPP

200

Marking rings PC 40/Z

Marking rings PC

More details


Marking (not Fleximark)

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $9.24
Unit price: $0.05

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Open marking rings with pre-printed characters and numbers for marking wires/single cores after assembly, Snap-On mechanism, flame-retardant according to UL 94 V

Accessories (storage box) available in the web catalogue

Benefits

  • Open marking rings with pre-printed number or character
  • The shape ensures secure fixation to the cable, while the anti-rotation feature allows for a secure combination marking.
  • Good UV resistance
  • Easy mounting through clipping

Application range

  • For single core marking
  • Marking after assembly
  • Also possible to use for marking wires before assembly

Product features

  • Cross-section in mm2:
    PC 10: 1
    PC 20: 2.5
    PC 30: 4
    PC 40: 6
  • Diameter application area in mm:
    PC 10: 2.4-3
    PC 20: 3-4
    PC 30: 4-5
    PC 40: 5-6.2

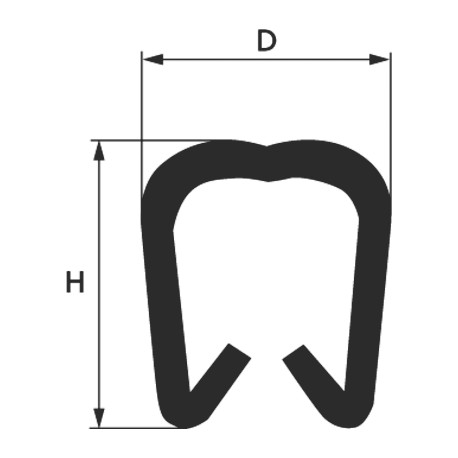

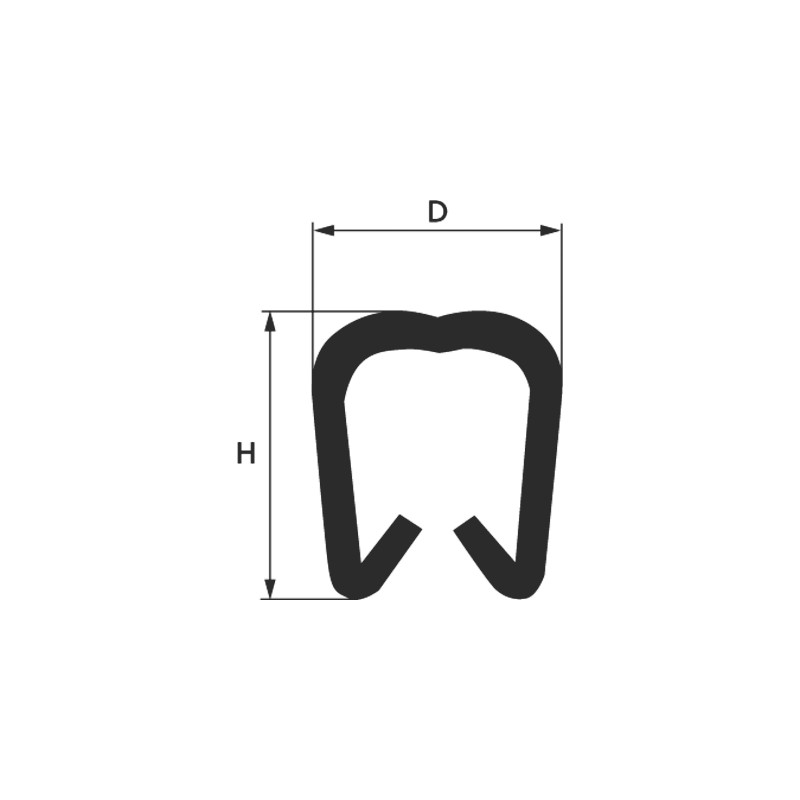

  • Width x heigt mm / sleeve length mm:
    PC 10: 3,7 x 3,6 / 3
    PC 20: 4,5 x 4,2 / 3
    PC 30: 5,7 x 5,5 / 3
    PC 40: 6,9 x 6,7 / 4

Norm references / Approvals

  • Extremely flame-retardant according toUL 94 V0

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001288
  • ETIM 5.0 Class-Description: Labelling material

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001288
  • ETIM 6.0 Class-Description: Labelling material

Colour delivered

  • Yellow

Material

  • Cadmium-free and silicon-free hard PVC

Temperature range

  • -30°C to +60°C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE LAPP EN.pdf 58 Mbytes
61822760 PC 40/Z 61822760 EN_61822040.pdf 384 Kbytes 61822760 PC 40/Z 61822760 EN_61822040.pdf
