61817860 PA 02/6 LAPP MARKING RINGS PA 02/6 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

61817860 PA 02/6 LAPP MARKING RINGS PA 02/6

61817860

PA 02/6

LAPP

200

MARKING RINGS PA 02/6

Marking rings PA 02/6

Marking rings PA

More details


Marking (not Fleximark)

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $6.89
Unit price: $0.03

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲

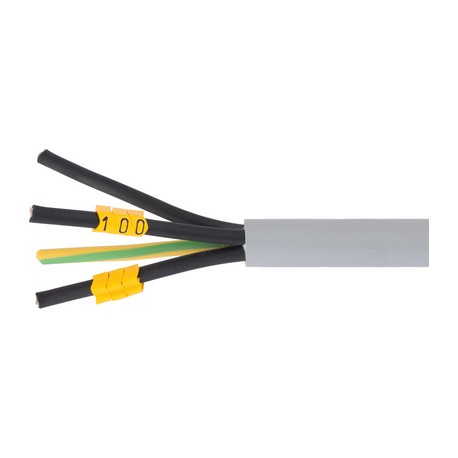

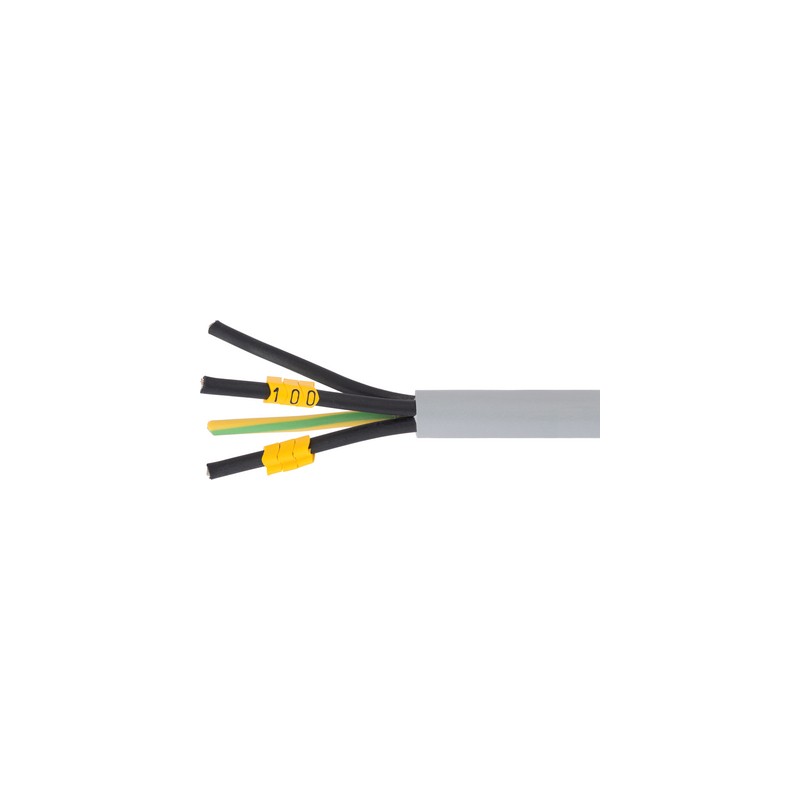

Closed marking rings with pre-printed characters and numbers for marking wires/single cores before assembly, flame-retardant according to UL 94 V

Accessories (storage box, mounting tool) available in the web catalogue

Benefits

  • Closed marking rings with pre-printed number or character
  • Anti-rotation protection
  • Due to its special profile with spring effects, the 4 different sizes can cover a range of cross-sections from 0.2 to 70 mm²
  • Good UV resistance

Application range

  • For single core marking
  • Marking before assembly
  • These closed collars are intended for cables that are not connected yet

Product features

  • Cross-section in mm2:
    PA 02: 0.2-1.5
    PA 1: 1.5-4
    PA 2: 2.5-16
    PA 3: 16-70
  • Diameter application area in mm:
    PA 02: 1.3-3
    PA 1: 2.5-5
    PA 2: 4.0-10.0
    PA 3: 8-16
  • Width x heigt mm / sleeve length mm:
    PA 02: 3.5 x 3.6 / 3
    PA 1: 4.2 x 5.5 / 3
    PA 2: 6.6 x 9.5 / 4
    PA 3: 11 x 16.5 / 6

Norm references / Approvals

  • Extremely flame-retardant according toUL 94 V0

Note

  • PA 02 also available as collector's box (article no. 61833050, contains 600 rings with inscription 0-9)
  • PA 1 also available as collector's box (article no. 61833060, contains 500 rings with inscription 0-9)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001288
  • ETIM 5.0 Class-Description: Labelling material

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001288
  • ETIM 6.0 Class-Description: Labelling material

Colour delivered

  • Yellow

Material

  • Cadmium-free and silicon-free soft PVC

Temperature range

  • -30°C to +60°C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE LAPP EN.pdf 58 Mbytes
61817860 PA 02/6 61817860 EN_61820490.pdf 385 Kbytes 61817860 PA 02/6 61817860 EN_61820490.pdf
