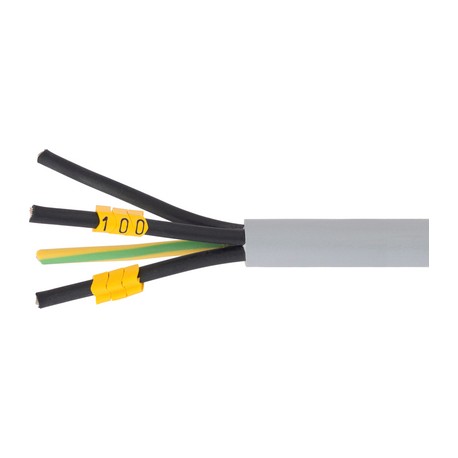

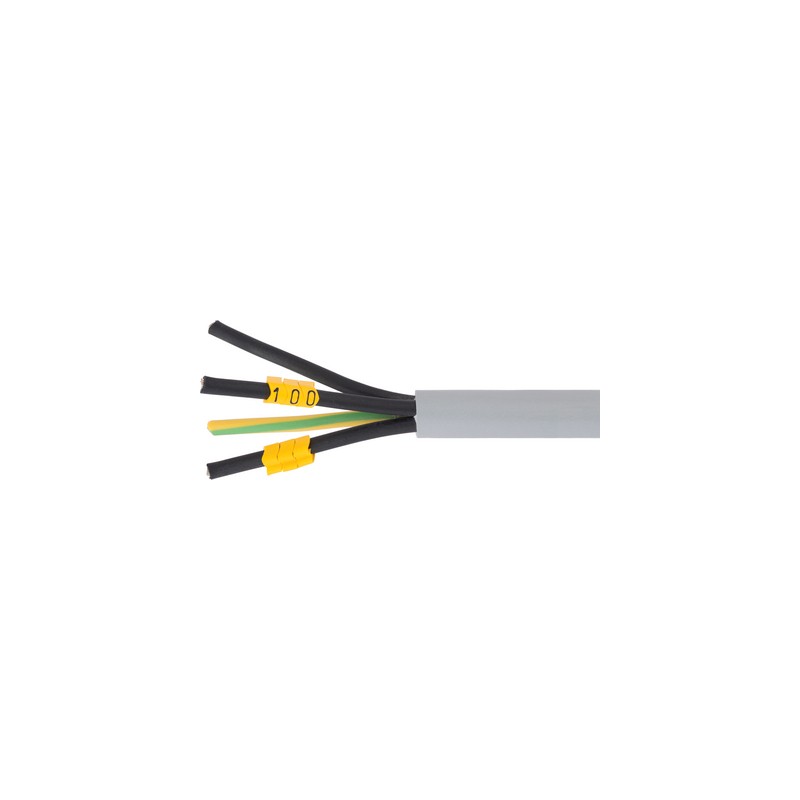

61817810 PA 02/1 LAPP Marking rings PA 02/1

proceeds

• Closed signal rings with pre-printed character or number
• Protection against rotation:
• Thanks to the special profile with spring effect, only 4 sizes are needed to cover the section range from 0.2 to 70 mm²
• Good UV resistance

Scope of use

• For the identification of unipolar cables
• Pre-assembly signage
• Closed rings are supplied for those cables that have not yet been connected

Product features

• Cross section in mm2: PA 02: 0.2-1.5 PA 1: 1.5-4 PA 2: 2.5-16 PA 3: 16-70
• Application area diameter in mm: PA 02: 1.3-3 PA 1: 2.5-5 PA 2: 4.0-10.0 PA 3: 8-16
• Width x height in mm / bush length in mm PA 02: 3.5 x 3.6 / 3 PA 1: 4.2 x 5.5 / 3 PA 2: 6.6 x 9.5 / 4 PA 3: 11 x 16.5 / 6

Reference Standards / Approvals

• Extremely flame-retardant according toUL 94 V0

Notice

• PA 02 also available as a collection box (item number 61833050, has 600 rings with marking 0-9)
• PA 1 also available as a collection box (item number 61833060, has 500 rings with marking 0-9)

ETS Classification 5

• ETIM 5.0 Class ID: EC001288
• ETIM Class 5.0 Description: Identification Material

ETTIM Rating 6

• ETIM 6.0 Class ID: EC001288
• ETIM 6.0 Class-Description: identification material

Available colors

• Yellow

Material

• Soft PVC without cadmium and without silicone

Temperature range

• -30°C to +60°C
