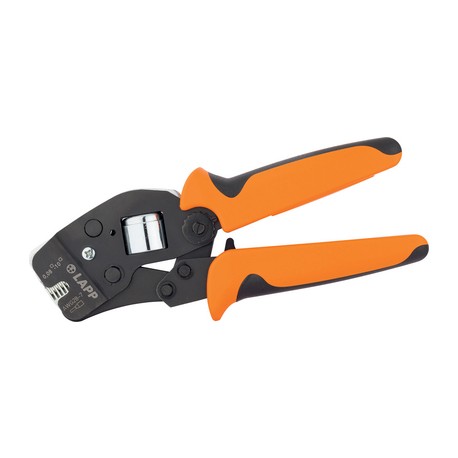

61813744 PEW 8.87 PLUS LAPP MULTICRIMP PEW 8.87 PLUS SQUARE
61813744
PEW 8.87 PLUS
LAPP
MULTICRIMP PEW 8.87 PLUS SQUARE

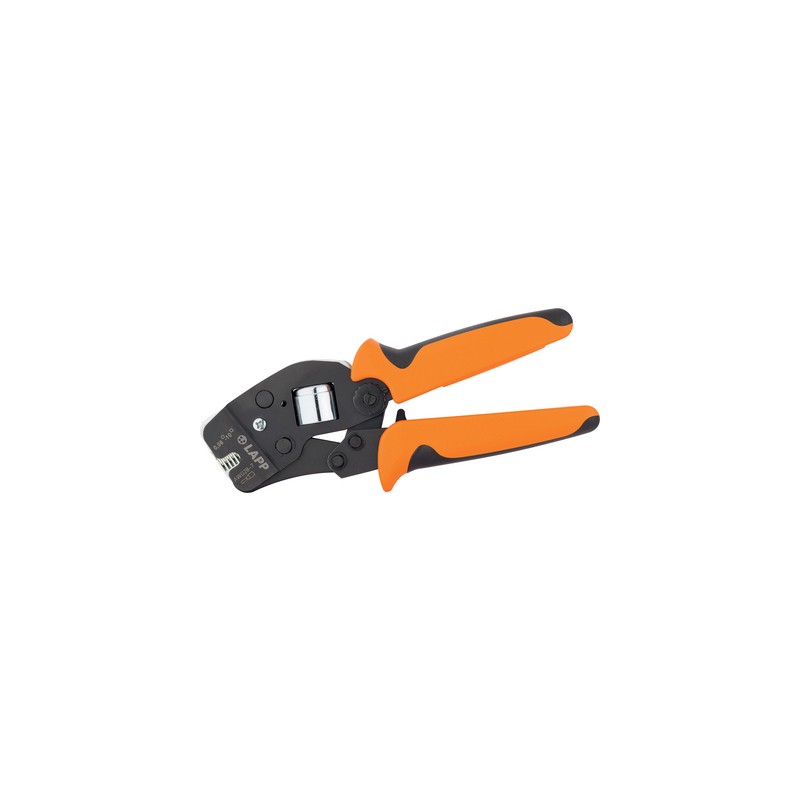

PEW 8.87 crimping pliers
Tools (Press, cut and isolate) > Crimp tool cable lugs, cable end sleeves, screen connection
Tools
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Benefits
- For the simplest handling where space is limited (control cabinets, machinery/internal wiring)
- Covers a wide range of diameters:
0,08 -10 mm2 (PEW 8.87)
0,08-16 mm2 (PEW 8.87 Plus) - Made in Germany
- Leverage grip boosts crimp power for tireless working
Application range
- Crimping tool for end sleeves (square form)
- Self-adjusts to the desired ferrule size
- Square crimping profile with four profiled crimping surfaces
Product features
- Burnished
Product Make-up
- PEW 8.87: With front and side feed (up to 2,5 mm2)PEW 8.87 Plus: With front feed
Note
- Recommended for end sleeves up to 16 mm length- for longer end sleeves we recommend the use of the PEW 8.185/8.186 (several crimps necessary) or the use of the PEW 12 tool with the suitable insertEnd sleeves up to 12 mm only needs to be pressed once, longer end sleeves (up to a 20 mm lengths) needs to be pressed at least twice
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000168
- ETIM 5.0 Class-Description: Crimp tool cable lugs, cable end sleeves, screen connection
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000168
- ETIM 6.0 Class-Description: Crimp tool cable lugs, cable end sleeves, screen connection
General
- Pressing length: up to 16 mm
- Crimping profile: Square
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 61813744 PEW 8.87 PLUS 61813744 EN_61813742.pdf | 350 Kbytes |
|
