> >>61806560 SILVYN SINUS PA6 9,9x13,0 BK LAPP SILVYN SINUS PA6 9,9x13,0 BK
Previous Product Next Product

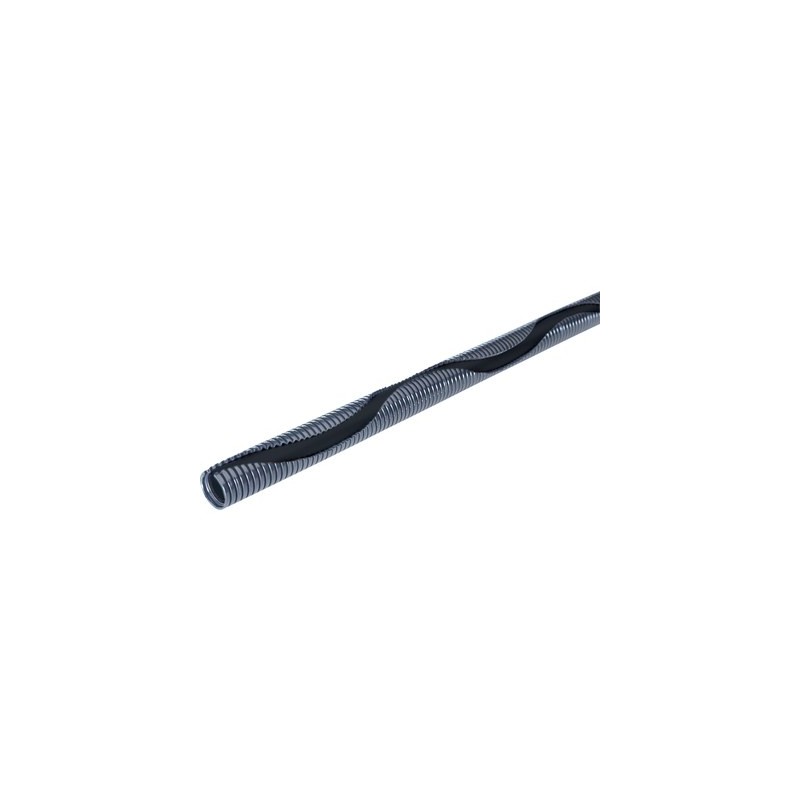

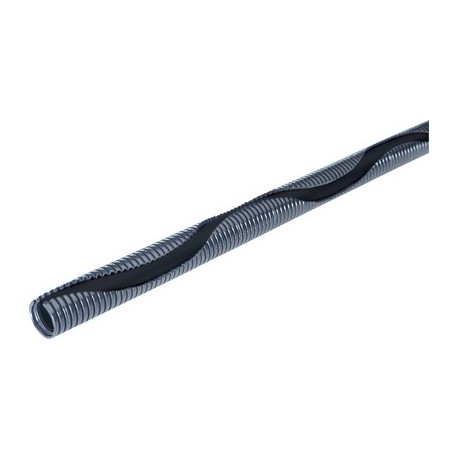

61806560 SILVYN SINUS PA6 9,9x13,0 BK LAPP SILVYN SINUS PA6 9,9x13,0 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

61806560 SILVYN SINUS PA6 9,9x13,0 BK LAPP SILVYN SINUS PA6 9,9x13,0 BK

61806560

SILVYN SINUS PA6 9,9x13,0 BK

LAPP

50

SILVYN SINUS PA6 9,9x13,0 BK

SILVYN® SINUS PA6

More details


Protective hose systems > Corrugated plastic hose

SILVYN cabling

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $67.32
Unit price: $1.35

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


SILVYN® SINUS PA6 is a parallel corrugated, sinusoidal slitted conduit that remains closed even under torsional movement

  • Sinusodial slit for subsequent assembly
  • Made of special heat-resistant polyamide up to +140°C

Benefits

  • Sinusoidal slit remains closed under torsion for the most part
  • Dimensionally stable
  • Flexible
  • Crush-resistant
  • Subsequent cable protection

Application range

  • Solar applications
  • Shipbuilding
  • Mechanical engineering
  • Electrical industry

Product features

  • High resistance to oil, petrol, acids and other chemicals
  • Halogen and cadmium-free
  • Abrasion-resistant

Product Make-up

  • Fine-profile corrugated polyamide 6 conduit with sinusodial slit

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC001175
  • ETIM 5.0 Class-Description: Corrugated plastic hose

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC001175
  • ETIM 6.0 Class-Description: Corrugated plastic hose

Note

  • Elongation at tear in accordance with DIN 53 455: 50 - 200 %
    Impact resistance in accordance with DIN 53 453: without rupture
    Notched impact resistance in accordance with DIN 53 453: without rupture
    Flammability rating: UL 94HB

Colour delivered

  • Black (RAL 9005), UV-resistant

Material

  • PA6 heat-modified
    Cadmium-free
    Halogen-free

Temperature range

  • -40°C to +140°C

Datasheet - PDF

▲
Title: Size: Type:
61806560 SILVYN SINUS PA6 9,9x13,0 BK 61806560 EN_61806550.pdf 386 Kbytes 61806560 SILVYN SINUS PA6 9,9x13,0 BK 61806560 EN_61806550.pdf
