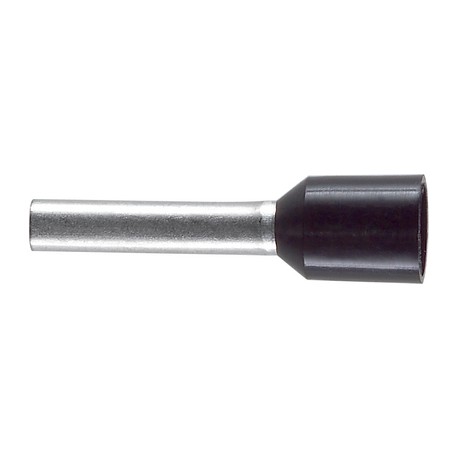

61802065 XL 1,0 RD 8 LAPP END SLEEVES XL 1,0 RD 8
61802065
XL 1,0 RD 8
LAPP
500
END SLEEVES XL 1,0 RD 8
Conductor end sleeves XL, insulated
Installation, isolation and connection material > Cable end sleeve
Connection engineering
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Insulated conductor end sleeves particular for UL (MTW)-CSA-HAR multi-standard single cores, funnel-shaped insulation sleeve opening
Benefits
- The specially produced conductor end sleeves with funnel-shaped insulation sleeve opening make it significantly easier to slip on the strands
Application range
- Suitable conductor end sleeves for UL(MTW)-CSA-HAR multi-standard single cores
- Because of their certifications for numerous markets, special conductor end sleeves with the cross sections listed below are needed for our multi-standard single cores
- The conductor is permanently connected to the collar by crimping
Norm references / Approvals
- All DIN conductor end-sleeves are in accordance with DIN 46228 Part 4
Note
- For 2,5 mm², 4 mm², 6 mm² and 10 mm² the standard AHI end sleeves could be used as the insulation thickness does only vary slightly from "standard cables"
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000005
- ETIM 5.0 Class-Description: Cable end sleeve
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000005
- ETIM 6.0 Class-Description: Cable end sleeve
Info
- Halogen-free and silicone-free
Material
- Sleeve made of tin-plated electrolytic copper
- Polypropylene plastic collar
Temperature range
- Permanent load -5°C up to +105°C, temporary load +120°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 61802065 XL 1,0 RD 8 61802065 EN_61802061.pdf | 224 Kbytes |
|
