61802033 AHI 2x6,00 YE LAPP TWIN-END SLEEVES AHI 2x6,00 YE
61802033
AHI 2x6,00 YE
LAPP
100
TWIN-END SLEEVES AHI 2x6,00 YE

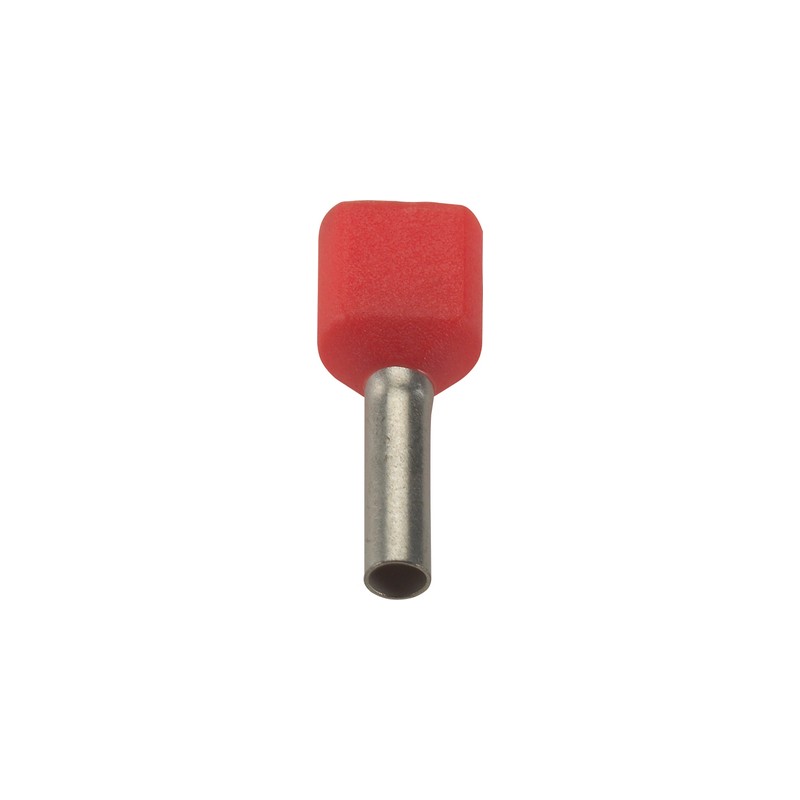

TWIN conductor end sleeves
Installation, isolation and connection material > Cable end sleeve
Connection engineering
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Twin conductors, insulated conductor end sleeve for two strand conductors, halogen-free
Now with UL approval
Benefits
- Special shape of plastic collar enables simultaneous holding of two strand conductors
- Correct crimping of two conductors in a TWIN conductor end sleeve achieves a proper electrical and mechanical connection
Norm references / Approvals
- UL File No. E507990, see table
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000005
- ETIM 5.0 Class-Description: Cable end sleeve
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000005
- ETIM 6.0 Class-Description: Cable end sleeve
Info
- Halogen-free
Material
- Copper/PP
- Surface: tin-plated
Temperature range
- Permanent load -5°C up to +105°C, temporary load +120°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
| 61802033 AHI 2x6,00 YE 61802033 EN_61802033.pdf | 432 Kbytes |
|
