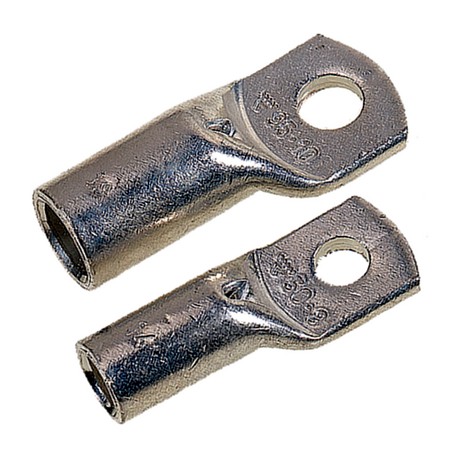

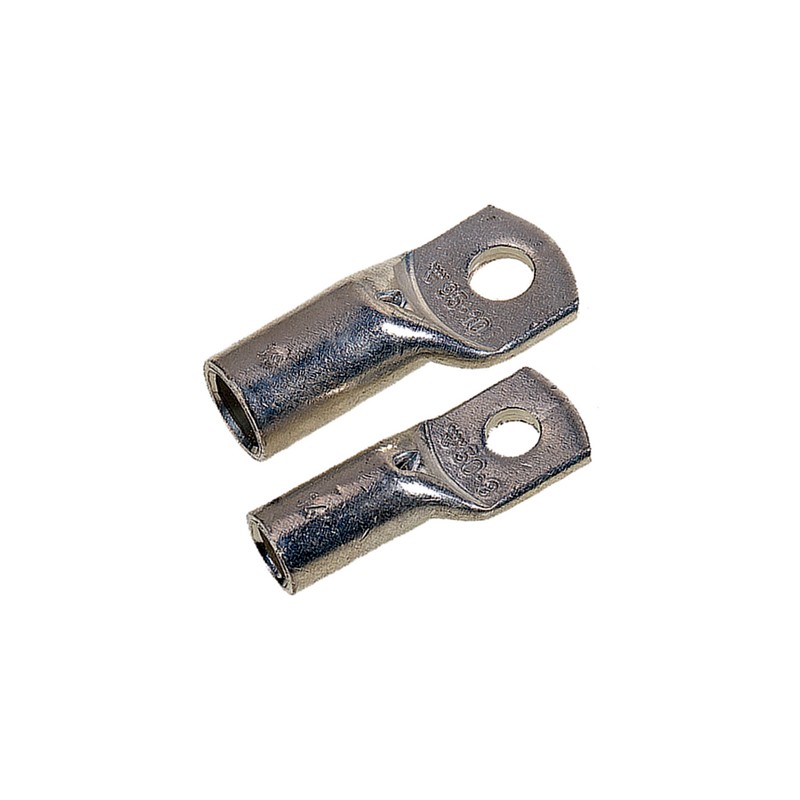

61796570 KR/4-4 LAPP TUBE CABLE LUGS KR/4-4

Benefits

• With inspection hole (starting from 4 mm2)
• High-quality electrolytic copper ensures a good crimping quality

Application range

• KR: For fine and multi-wire copper conductors (class 2 an 5) with a cross-sectional range of 0.75 -10.00 mm²
• KRT: For multi-wire copper conductors (class 2)with a cross-sectional range of 10 - 1000 mm²
• KRF: For fine wire copper conductors (class 2, 5 and 6) with a cross-sectional range of 16 - 800 mm²
• Mainly for connection to rails and to copper connectors
• Max. 48 kV

Norm references / Approvals

• UL file number: E205350 (see table)
• In combination with recommended crimp tool fulfill requirments of EN-IEC 61238:1, BS 4579:1 and VDE 0220:1

Classification ETIM 5

• ETIM 5.0 Class-ID: EC001051
• ETIM 5.0 Class-Description: Tube cable lug for copper conductors

Classification ETIM 6

• ETIM 6.0 Class-ID: EC001051
• ETIM 6.0 Class-Description: Tube cable lug for copper conductors

Material

• Tinned electrolyte copper (Cu/Sn4 , tin surface of 4µ)

Temperature range

• Temperature range up to +90°C
• Working temperature: 110°C, max. +140°C
