> LAPP>Connection engineering>61794971 L-RC 63 V LAPP PANEL CONNECTORS L-RC 63 V
Previous Product Next Product
61794971 L-RC 63 V LAPP PANEL CONNECTORS L-RC 63 V View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

61794971 L-RC 63 V LAPP PANEL CONNECTORS L-RC 63 V

61794971

L-RC 63 V

LAPP

50

PANEL CONNECTORS L-RC 63 V

Panel connectors insulated

More details


Installation, isolation and connection material > Round or flat plug/receptacle

Connection engineering

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $10.88
Unit price: $0.22

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Insulated panel connectors (type M, T and V), UL approved, with easy entry funnel shape

Benefits

  • Hard-soldered cable lug that can be pressed in any position
  • Thus providing the best electrical conductivity (least resistance)
  • No risk of bent and crushed cables

Application range

  • Control cabinet manufacturing
  • Cable assembly

Norm references / Approvals

  • File Number E334111, see table

Design

  • For higher tensile strength
  • For good strength and improved current conduction
  • Flat receptacle material in contact pressing is double-folded and hard-soldered
  • EASY-ENTRY funnel shape of the plastic sleeve enables simple, fast and safe insertion of the conductor

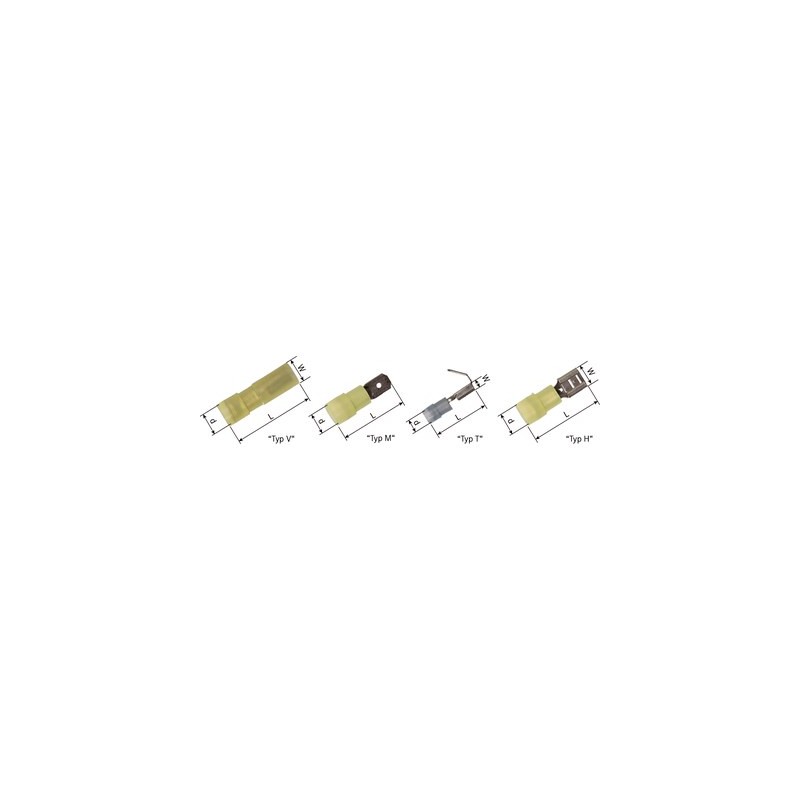

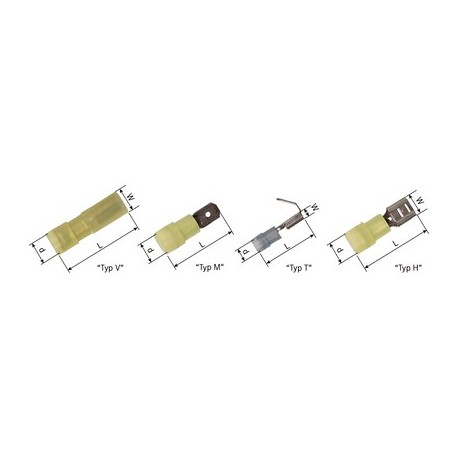

  • 1 = push-on female terminal, type H
    2 = push-on piggyback terminal, type T
    3 = push-on male terminal, type M
    4 = push-on female terminal (fully insulated), type V

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000516
  • ETIM 5.0 Class-Description: Round plug/flat receptacle

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000516
  • ETIM 6.0 Class-Description: Round or flat plug/receptacle

Material

  • Brass tin-plated
  • Polyamide, halogen-free

Temperature range

  • -20°C to +105°C
    Short-term: up to +120°C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE LAPP EN.pdf 58 Mbytes
61794971 L-RC 63 V 61794971 EN_61794951.pdf 195 Kbytes 61794971 L-RC 63 V 61794971 EN_61794951.pdf
