61794720 AHI ASSORTMENT BOX I END SLEEVE LAPP AHI ASSORTMENT BOX I END SLEEVE

Benefits

• Convenient assortment boxes - several diameters always at your fingertips

Norm references / Approvals

• The insulated conductor end sleeves are in accordance with DIN 46228, part 4 (0.25 mm² and 0.34 mm² not standardised) in assortment boxes

Product Make-up

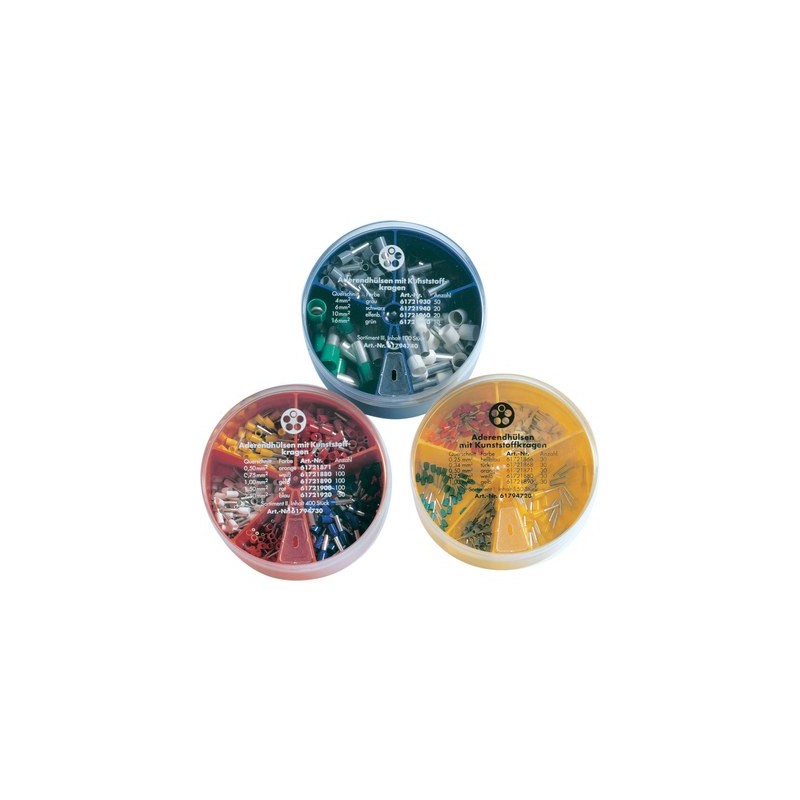

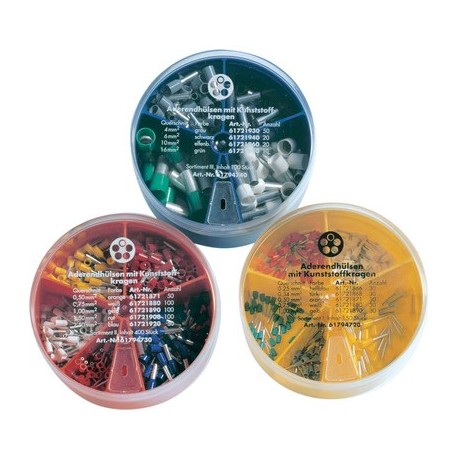

• AHI assortment box I (yellow):
  30 x 0.25 - 6 mm LBU, 30 x 0.34 - 6 mm TQ, 30 x 0.5 - 8 mm ON, 30 x 0.75 - 8 mm WH, 30 x 1.00 - 8 mm YE
• AHI assortment box II (orange):
  50 x 0.5 - 8 mm OG, 100 x 0.75 - 8 mm WH, 100 x 1.00 - 8 mm YE, 100 x 1.5 - 8 mm RD, 50 x 2.5 - 8 mm BU
• AHI assortment box III (blue):
  50 x 4.00 - 10 mm GY, 20 x 6.0 - 12 mm BK, 20 x 10.00 - 12 mm WH, 10 x 16.00 - 12 mm GN

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000524
• ETIM 5.0 Class-Description: Assortment box for installation- and connection material

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000524
• ETIM 6.0 Class-Description: Assortment box for installation- and connection material
