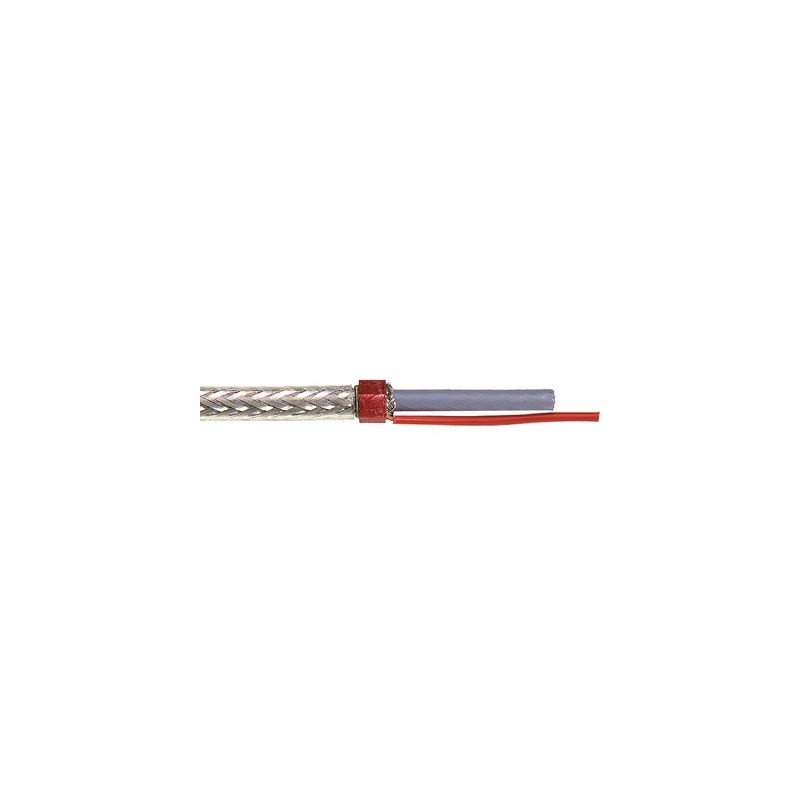

61749650 SHIELD-KON GSB 5232 RD INNER SLEEVES LAPP SHIELD-KON GSB 5232 RD INNER SLEEVES
61749650
SHIELD-KON GSB 5232 RD INNER SLEEVES
LAPP
100
SHIELD-KON GSB 5232 RD INNER SLEEVES
SHIELD-KON® two-part screen connector
Installation, isolation and connection material > Connection for screened wires
Connection engineering
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Benefits
- A hard, stable inner sleeve absorbs the pressure and protects the conductor on the inside from mechanical stress
- Hexagonal shaped crimpimg of the soft outer sleeve guarantees a perfect electrical and mechanical connection
Application range
- For screen cables with a dielectric diameter from 1.1 to 9,4 mm (diameter after removing the screen)
- Telecommunication
- Railway applications
Classification ETIM 5
- ETIM 5.0 Class-ID: EC002650
- ETIM 5.0 Class-Description: Connection for screened wires
Classification ETIM 6
- ETIM 6.0 Class-ID: EC002650
- ETIM 6.0 Class-Description: Connection for screened wires
Material
- Bronze
- Galvanically galvanized
Temperature range
- Temperature shock test
- 100 cycles of temperature changes between -40°C and +155°C produced a negligible change in the contact resistance.
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 61749650 SHIELD-KON GSB 5232 RD INNER SLEEVES 61749650 EN_61749610.pdf | 359 Kbytes |
|
