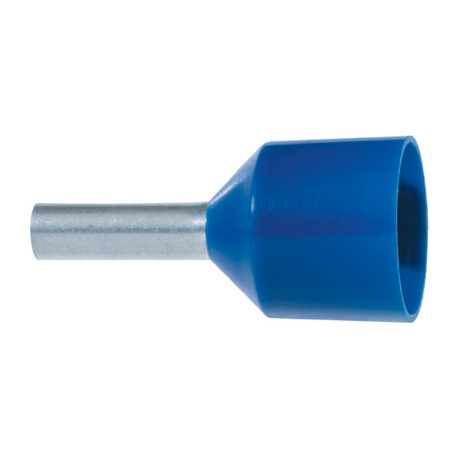

61746503 AHK 2,5/12 BU LAPP END SLEEVES AHK 2,5/12 BU
61746503
AHK 2,5/12 BU
LAPP
100
END SLEEVES AHK 2,5/12 BU

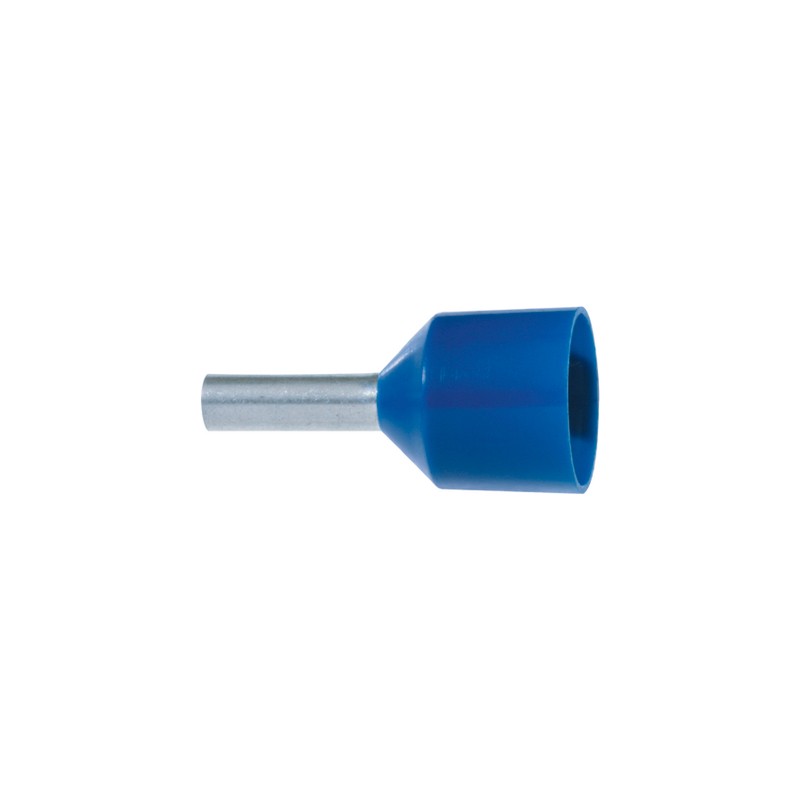

Conductor end sleeves AHK insulated
Installation, isolation and connection material > Cable end sleeve
Connection engineering
* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲Insulated conductor end sleeves for short circuit cables up to 3 kV, For cables with thick insulation
Now with UL approval
Benefits
- Thicker insulation and greater wall thickness for higher loads
- Suitable for all short circuit and earth fault-resistant cables up to 3 kV due to enlarged insulation sleeves
Application range
- For cables with thick insulation
- Special conductor end sleeve model with large plastic collar for thick insulation cables (e.g. NSGAFÖU)
- Suitable for unprotected connections on control and distribution panels, rail vehicles, solar systems, ignition cables etc.
Norm references / Approvals
- UL File No. E507990, see table
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000005
- ETIM 5.0 Class-Description: Cable end sleeve
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000005
- ETIM 6.0 Class-Description: Cable end sleeve
Material
- Copper/PP
- Surface: tin-plated
Temperature range
- -5°C to +105°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 58 Mbytes |
|
| 61746503 AHK 2,5/12 BU 61746503 EN_61746501.pdf | 246 Kbytes |
|
