LAPPAccessories61742465 PROTECT SET LAPP Shrink tube PROTECT Set
LAPP 61742465 61742465 PROTECT SET - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

61742465 PROTECT SET LAPP Shrink tube PROTECT Set

Reference: 61742465

Catalog Number: PROTECT SET

Manufacturer: LAPP

Description:

Shrink tube PROTECT Set

Categories:

  • Installation, isolation and connection material > Shrink tubing
  • LAPP > Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 112,72 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 1 week.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

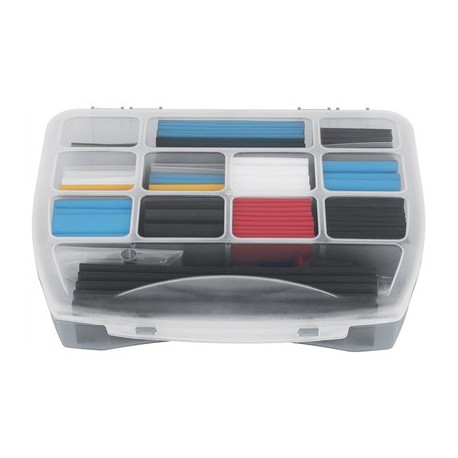

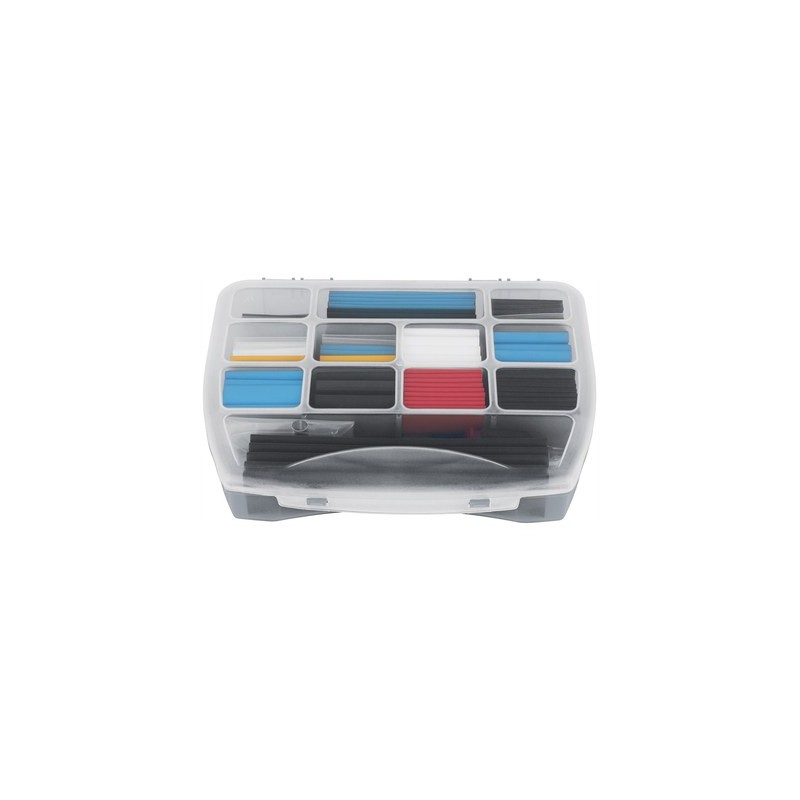

Shrink tube PROTECT Set contains an assortment of common shrinking tube sizes of PROTECT in an handy box. Set is mainly used for repair and maintenance purposes.

Benefits

  • Convenient plastic kit with PROTECT shrink tubes including small hot air pistol

Application range

  • For repair and maintenance, for small series production and in research and development

Product features

  • Flame-retardant (except colour: clear)
  • Silicone-free
  • UV-resistant (only colour: black)

Norm references / Approvals

  • UL 224 approval (except colour: transparent)
  • UL file no.: E476215 (except colour: transparent)

Note

  • Not resistant against engine oils

Included

  • The shrink set in a practical case
  • Assortment of common shrinking tube sizes of type PROTECT
  • Content:
    50x 50 mm Shrink tube PROTECT 1,6/0,8 BK
    50x 50 mm Shrink tube PROTECT 1,6/0,8 TR
    50 x 50 mm Shrink tube PROTECT 2,4/1,2 BK
    50 x 50 mm Shrink tube PROTECT 2,4/1,2 TR
    20 x 50 mm Shrink tube PROTECT 3,2/1,6 BK
    20 x 50 mm Shrink tube PROTECT 3,2/1,6 TR
    20 x 50 mm Shrink tube PROTECT 3,2/1,6 YE
    20 x 50 mm Shrink tube PROTECT 3,2/1,6 WH
    10 x 50 mm Shrink tube PROTECT 4,8/2,4 BK
    10 x 50 mm Shrink tube PROTECT 4,8/2,4 TR
    10 x 50 mm Shrink tube PROTECT 4,8/2,4 YE
    10 x 50 mm Shrink tube PROTECT 4,8/2,4 BU
    15 x 50 mm Shrink tube PROTECT 6,4/3,2 BK
    15 x 50 mm Shrink tube PROTECT 6,4/3,2 WH
    15 x 50 mm Shrink tube PROTECT 6,4/3,2 YE
    15 x 50 mm Shrink tube PROTECT 6,4/3,2 BU
    15 x 50 mm Shrink tube PROTECT 9,5/4,7 BK
    15 x 50 mm Shrink tube PROTECT 9,5/4,7 BU
    20 x 50 mm Shrink tube PROTECT 12,7/6,4 BK
    20 x 50 mm Shrink tube PROTECT 12,7/6,4 RD
    5 x 100 mm Shrink tube PROTECT 19,1/9,5 BK
    5 x 100 mm Shrink tube PROTECT 19,1/9,5 BU
    5 x 180 mm Shrink tube PROTECT 25,4/12,7 BK
    1 x HOT GUN

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000217
  • ETIM 5.0 Class-Description: Heat-shrink tubing

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000217
  • ETIM 6.0 Class-Description: Shrink tubing

Note

  • Thin walled
  • Dielectric strength: 20 kV/mm

Info

  • Shrinking ratio: 2:1

Material

  • Cross-linked polyolefin

Temperature range

  • -55°C to +135°C
  • Shrinking temperature: +90°C

DATASHEET - PDF

Title
Size
Type
61742465 PROTECT SET 61742465 EN_61742465.pdf
495 Kbytes
PDF CATALOGUE LAPP EN
69 Mbytes
