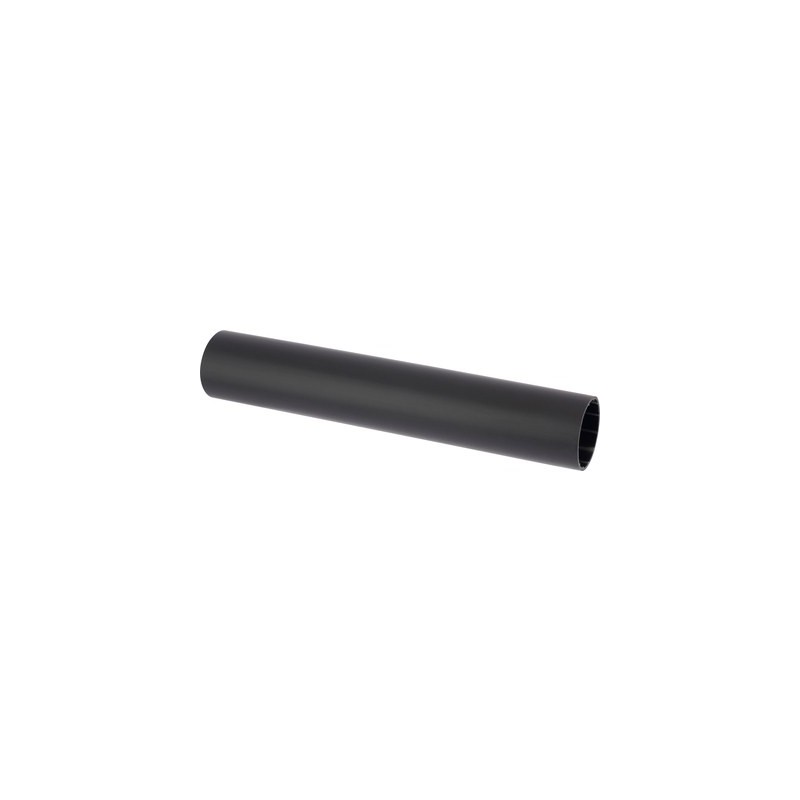

61742464 PROTECT- M 92/26 BK LAPP Shrink tube PROTECT- M 92/26 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

61742464 PROTECT- M 92/26 BK LAPP Shrink tube PROTECT- M 92/26 BK

61742464

PROTECT- M 92/26 BK

LAPP

Shrink tube PROTECT- M 92/26 BK

Shrink tube PROTECT-M/PROTECT-T

More details


Installation, isolation and connection material > Shrink tubing

Accessories

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $43.97
Unit price: $43.97

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


TBW/TBM Heat Shrink tube is a 3:1 thick/medium walled shrinking tube which is particularly meant for demanding environments as underwater and underground applications.

Medium / thick walled

Benefits

  • Is designed to withstand the severe mechanical requirements of submersible and direct-buried installations
  • High resistance to abrasion, corrosion and chemicals
  • Good weather-resistance

Application range

  • Thick and medium-wall shrink tubes for 600 V, 90°C low voltage applications in continuous use
  • Ideal for the protection of cable joints and terminations in low voltage power applications

Product features

  • Adhesive lining bonds to plastic, rubber, neoprene,steel and polyethylene
  • Silicone-free
  • UV-resistant
  • Halogen-free

Included

  • Plastic bags with 1.0 m units

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000217
  • ETIM 5.0 Class-Description: Heat-shrink tubing

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000217
  • ETIM 6.0 Class-Description: Shrink tubing

Note

  • PROTECT-M: medium wall
    PROTECT-T: heavy wall
  • Dielectric strength: 15 kV/mm

Info

  • Shrinking ratio: 3:1

Colour delivered

  • Black

Material

  • Cross-linked modified polyolefin, with thermoplastic adhesive coating inside

Temperature range

  • -40°C to +120°C
  • Shrinking temperature: +110°C

Datasheet - PDF

▲
Title: Size: Type:
61742464 PROTECT- M 92/26 BK 61742464 EN_61742464.pdf 328 Kbytes 61742464 PROTECT- M 92/26 BK 61742464 EN_61742464.pdf
