> >>61742406 PROTECT 9.5/4.7 BK LAPP Shrink tube PROTECT 9.5/4.7 BK
Previous Product Next Product

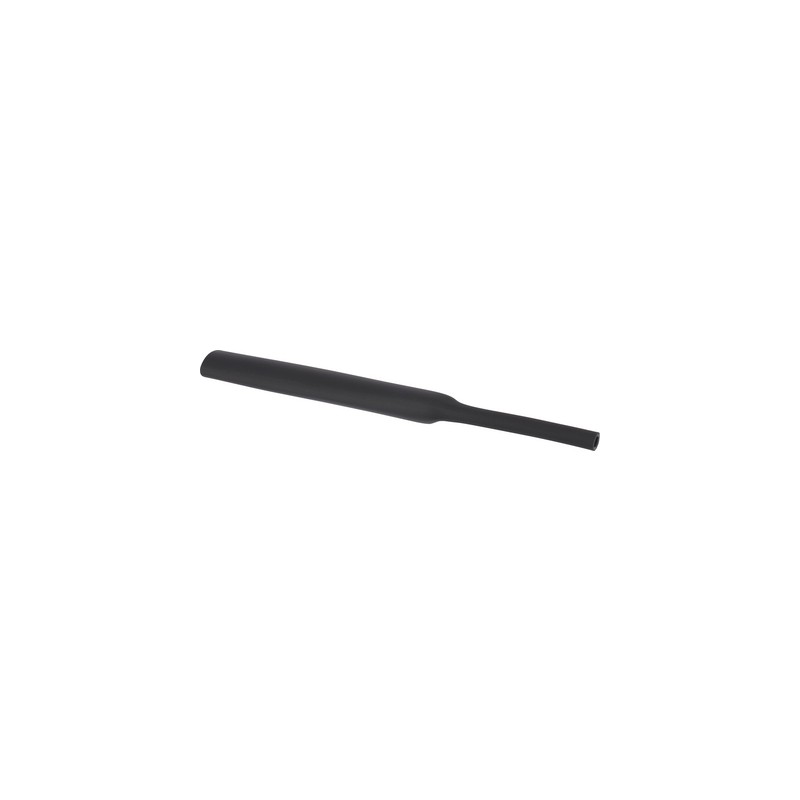

61742406 PROTECT 9.5/4.7 BK LAPP Shrink tube PROTECT 9.5/4.7 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

61742406 PROTECT 9.5/4.7 BK LAPP Shrink tube PROTECT 9.5/4.7 BK

61742406

PROTECT 9.5/4.7 BK

LAPP

Shrink tube PROTECT 9.5/4.7 BK

Shrink tube PROTECT

More details


Installation, isolation and connection material > Shrink tubing

Accessories

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $51.25
Unit price: $51.25

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


The shrink tube is particularly interesting for the North American market due to various approvals such as CSA and UR. The shrinking ratio is 2:1.

Thin walled

Benefits

  • Flexible
  • Excellent physical and mechanical properties
  • Approved for the use in North America and Canada

Application range

  • Insulation, protection and cable bundling
  • Green-yellow shrink tube: For identifying and marking earthing connectors and cables

Product features

  • Flame-retardant (except colour: clear)
  • Silicone-free
  • UV-resistant (only colour: black)

Norm references / Approvals

  • UL 224 approval (except colour: transparent)
  • UL file no.: E476215 (except colour: transparent)

Note

  • Not resistant against engine oils

Included

  • Plastic bag with 1.22 m units

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000217
  • ETIM 5.0 Class-Description: Heat-shrink tubing

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000217
  • ETIM 6.0 Class-Description: Shrink tubing

On request

  • Other colours are available upon request

Note

  • Thin walled
  • Dielectric strength: 20 kV/mm

Info

  • Shrinking ratio: 2:1

Colour delivered

  • Black
    Transparent
    Green-yellow

Material

  • Cross-linked polyolefin

Temperature range

  • -55°C to +135°C
  • Shrinking temperature: +90°C

Datasheet - PDF

▲
Title: Size: Type:
61742406 PROTECT 9.5/4.7 BK 61742406 EN_61742400.pdf 339 Kbytes 61742406 PROTECT 9.5/4.7 BK 61742406 EN_61742400.pdf
