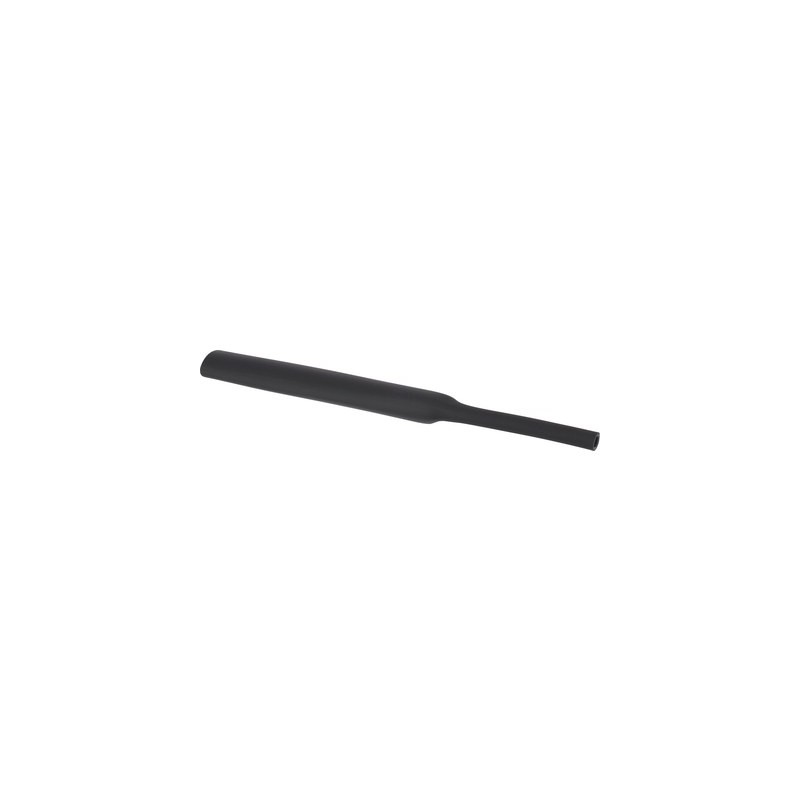

61742401 PROTECT 1.6/0.8 BK LAPP Shrink tube PROTECT 1.6/0.8 BK

Reference: 61742401

Catalog Number: PROTECT 1.6/0.8 BK

Manufacturer: LAPP

Description:

Shrink tube PROTECT 1.6/0.8 BK
Shrink tube PROTECT

Categories:

  • Installation, isolation and connection material > Shrink tubing
  • LAPP > Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

The shrink tube is particularly interesting for the North American market due to various approvals such as CSA and UR. The shrinking ratio is 2:1.

Thin walled

Benefits

  • Flexible
  • Excellent physical and mechanical properties
  • Approved for the use in North America and Canada

Application range

  • Insulation, protection and cable bundling
  • Green-yellow shrink tube: For identifying and marking earthing connectors and cables

Product features

  • Flame-retardant (except colour: clear)
  • Silicone-free
  • UV-resistant (only colour: black)

Norm references / Approvals

  • UL 224 approval (except colour: transparent)
  • UL file no.: E476215 (except colour: transparent)

Note

  • Not resistant against engine oils

Included

  • Plastic bag with 1.22 m units

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000217
  • ETIM 5.0 Class-Description: Heat-shrink tubing

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000217
  • ETIM 6.0 Class-Description: Shrink tubing

On request

  • Other colours are available upon request

Note

  • Thin walled
  • Dielectric strength: 20 kV/mm

Info

  • Shrinking ratio: 2:1

Colour delivered

  • Black
    Transparent
    Green-yellow

Material

  • Cross-linked polyolefin

Temperature range

  • -55°C to +135°C
  • Shrinking temperature: +90°C
