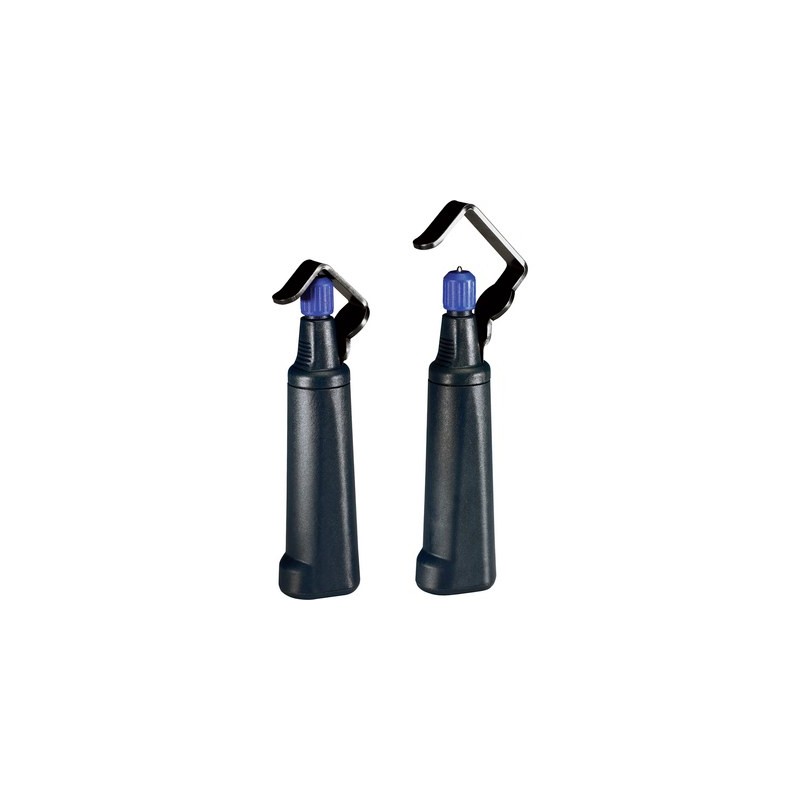

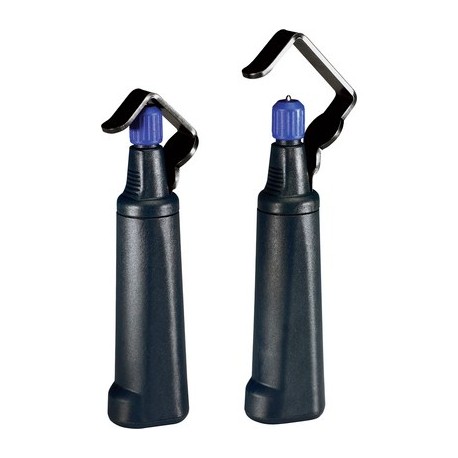

61735822 LAPP STAR STRIP SPARE HOOK SMALL

Benefits

• Large application range thanks to the interchangeable hooks
• Suitable for circular, longitudinal and spiral cuts
• High quality of the blade ensures a good stripping result also for tough insulation materials
• Robust body, long durability- tested for more than 100.000 stripping operations
• High ergonomics and user-friendliness (inter alias due to a lightweight construction)

Application range

• Adjustable stripping tool for round cables made with various insulation materials (as PVC, PTFE, rubber or PUR)
• Through the interchangeable hooks, the tool can be used for cables with a diameter of 4.5 - 25 mm and 20 - 40 mm

Product features

• The depth of the blade is adjustable by rotating the upper part of the tool
• Specific locking positions for circular, longitudinal or spiral cuts
• The blade automatically returns to its start position at the end of a stripping process, thus reducing the possibility of breaking the blade.
• No special tool is required to replace the hook (other hook is used for releasing the assembled hook)

Note

• Spare blades are available and can be stored in a compartment of the tool

Included

• 61735820: Tool with blade, small and large hook without spare blade

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000163
• ETIM 5.0 Class-Description: Cable stripping tool

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000163
• ETIM 6.0 Class-Description: Cable stripping tool

Weight

• STAR STRIP with large hook: 116 g

Length

• Dimensions LxHxB:
  Small hook: 150x42x30.5 mm
  Big hook: 167x52x30.5 mm

Colour delivered

• Black
