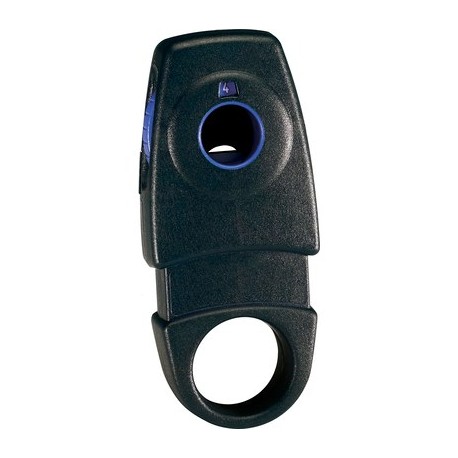

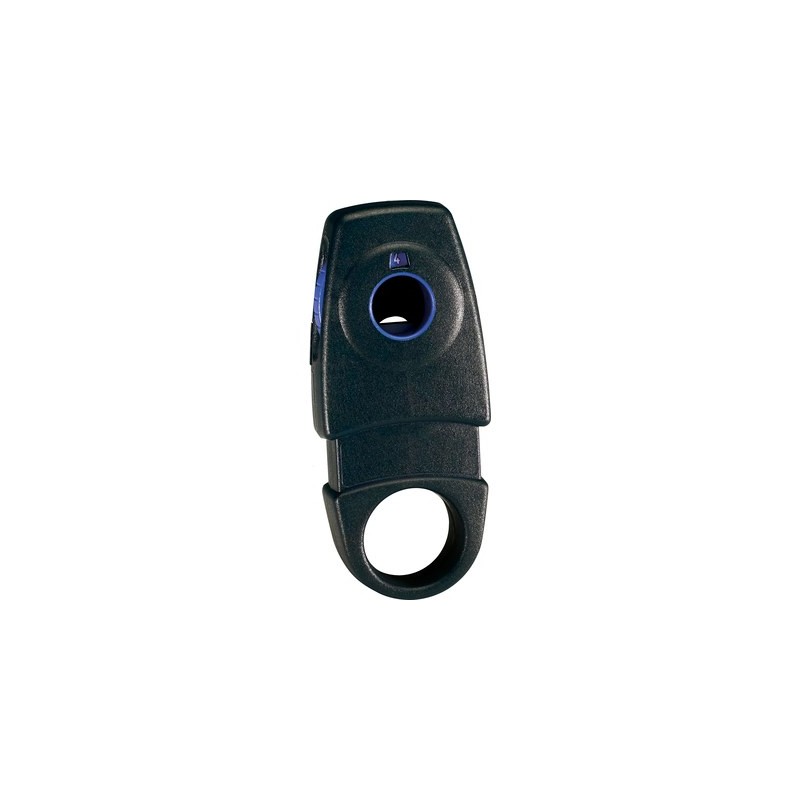

61735810 DATA STRIP LAPP STRIPPING TOOL DATA STRIP

Benefits

• Precise due to 9 adjustable positions on the setting wheel
• Easy handling-open the stripping shaft by simply pressing the tool together, insert the cable, turn the tool and open the tool again
• lightweight and handy design - for your trouser pocket or belt
• Long durability - tested for 50.000 insulation processes
• High safety for the user due to rounded shape, no open blades, "X-position" for blade changes, replacement blade is embedded in plastic surrounding

Application range

• Precision stripping tool for stripping signal, telephone, AV, control and data transmission cables made up of copper and glass fibres.
• Dismantles most multi-core data cables and glass-fibre cables with a diameter of up to 11 mm (also power cable with PVC sheating could be dismantled)
• Not suitable for PUR materials

Product features

• The tool is adjustable up to 1.00 mm (0,04") in steps of 0.1 mm:9=1.0 mm8= 0.9 mm7= 0.8 mm6= 0.7 mm5= 0.6 mm4= 0.5 mm3= 0.4 mm2= 0.3 mm1= 0.2 mm

Note

• The "x" position on the wheel enables the tool to close so that the attached blade catridge can be ejected and replaced with a new one quickly and safely

Classification ETIM 5

• ETIM 5.0 Class-ID: EC000163
• ETIM 5.0 Class-Description: Cable stripping tool

Classification ETIM 6

• ETIM 6.0 Class-ID: EC000163
• ETIM 6.0 Class-Description: Cable stripping tool

General

• Insulation thickness: up to 1 mm

Diameter in

• For outer diameter: 2.5 - 11 mm

Weight

• 28 g

Length

• Dimensions:
  L 90.5 x W 39.5 x H 19 mm
