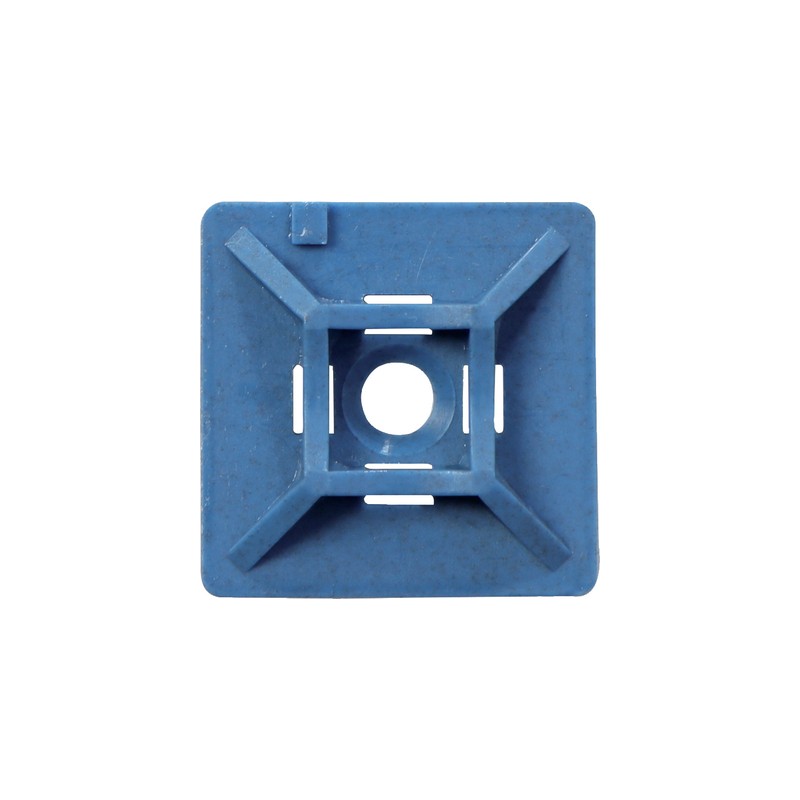

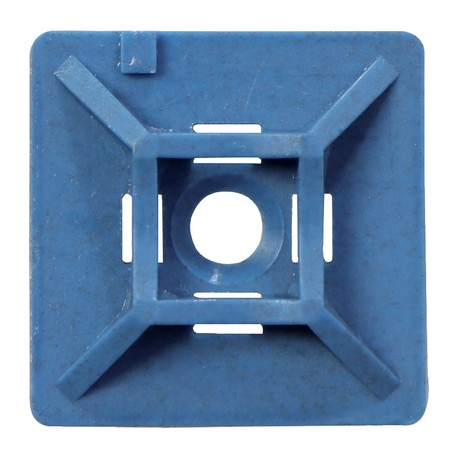

61724105 XS PA LAPP Socket saddle Detect XS PA

proceeds

• Detectable cable flange base with special polymer compound that activates metal detectors, X-ray machines and visual detection systems
• Minimizes the risk of product contamination
• Blue color facilitates visual detection
• Polyamide version: resistant to common solvents such as alcohols and ketones, aliphatic and aromatic hydrocarbons such as oils, fats and gasoline, as well as weak bleaches; not resistant to acids (weak or strong) or metal salts. Polypropylene version: resistant to chemical detergents
• Helps comply with the EU HACCP directive

Scope of use

• They are recommended for those applications where there should be no plastic debris in the final product and detectors are used to detect foreign bodies
• Food and beverage industry, especially for dairy and meat production and processing equipment
• Pharmaceutical production

Reference Standards / Approvals

• UL 94 V-2

Delivery

• Delivers without screws

ETS Classification 5

• ETIM 5.0 Class-ID: EC000449
• Description of class ETIM 5.0: mounting base and flange element

Available colors

• Blue

Material

• Polyamide 6.6 or polypropylene with traces of metal
• Halogen-free

Temperature range

• -40°C to +85°C
