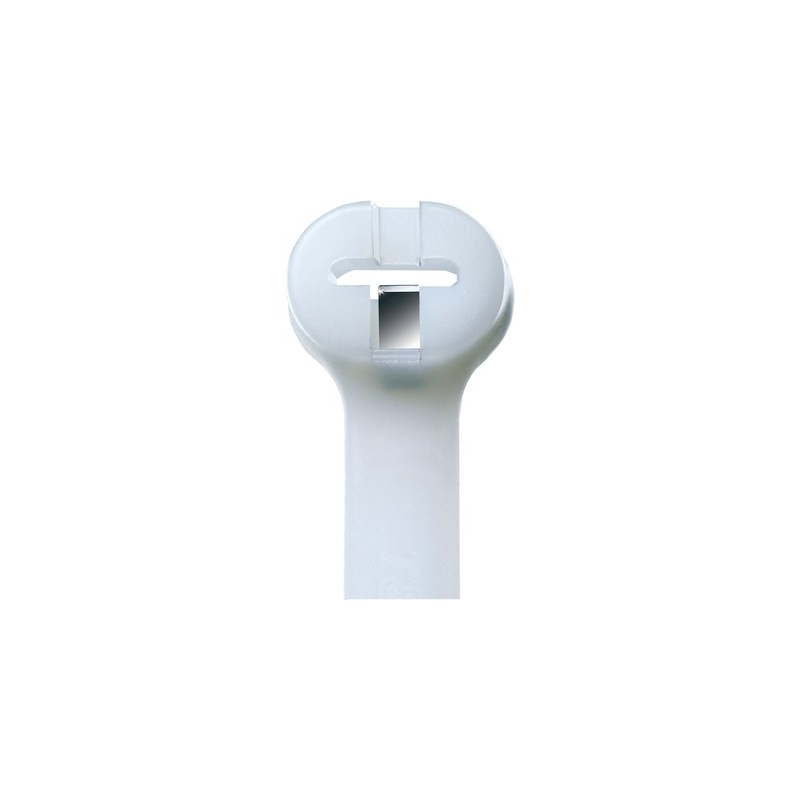

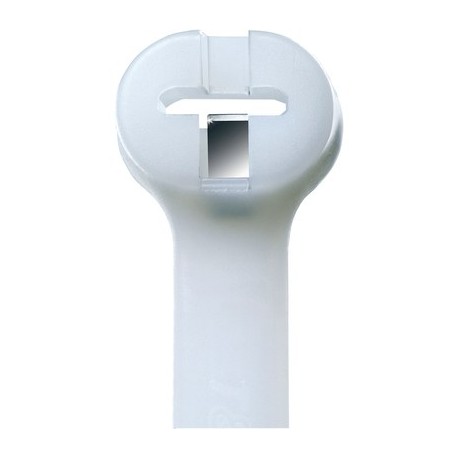

61723334 TY 28 MFR-RW LAPP TY 28 MFR-RW
61723334
TY 28 MFR-RW
LAPP
500
TY 28 MFR-RW
TY-RAP® Railway
Fasteners > Cable tie
Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by LAPP
Best sellers
▲More info
▲The TY - RAP® Railway clamping flange is a PA 6.6 clamping flange. It is halogen-free and especially suitable for use in public buildings, airports, hospitals, etc. Thanks to the DIN EN 45545-2 HL2 certification, use in rail transport is possible.
- Clamping flange for railway applications
- Hazard Level: HL 2
proceeds
- The special design of the flanges ensures maximum strength and safety even in the most extreme applications
- Steel tip ensures safe and durable adhesion
- The closure is shock and vibration resistant
- Fire performance according to UL 94 V0
Scope of use
- Metros and trains
- In areas with high demands on chemical and mechanical resistance
- Anywhere the protection of people and materials is paramount
- Public facilities
Product features
- The steel blade is fixed to the flange head and is made of anti-magnetic and corrosion-resistant steel (type 316)
Reference Standards / Approvals
- DIN EN 45545-2
- NFF 16-101:I3F1
ETS Classification 5
- ETIM 5.0 Class-ID: EC000046
- ETIM 5.0 class description: flange
ETTIM Rating 6
- ETIM 6.0 Class-ID: EC000046
- ETIM 6.0 Class-Description: clamping flange
Available colors
- Natural colors
Material
- Polyamide 6.6
- Halogen and silicone free
Temperature range
- -40°C to +85°C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE LAPP EN.pdf | 69 Mbytes |
|
