> LAPP>Connection engineering>61721990 AHI L 16/18 GN LAPP END SLEEVES AHI L 16/18 GN
Previous Product Next Product

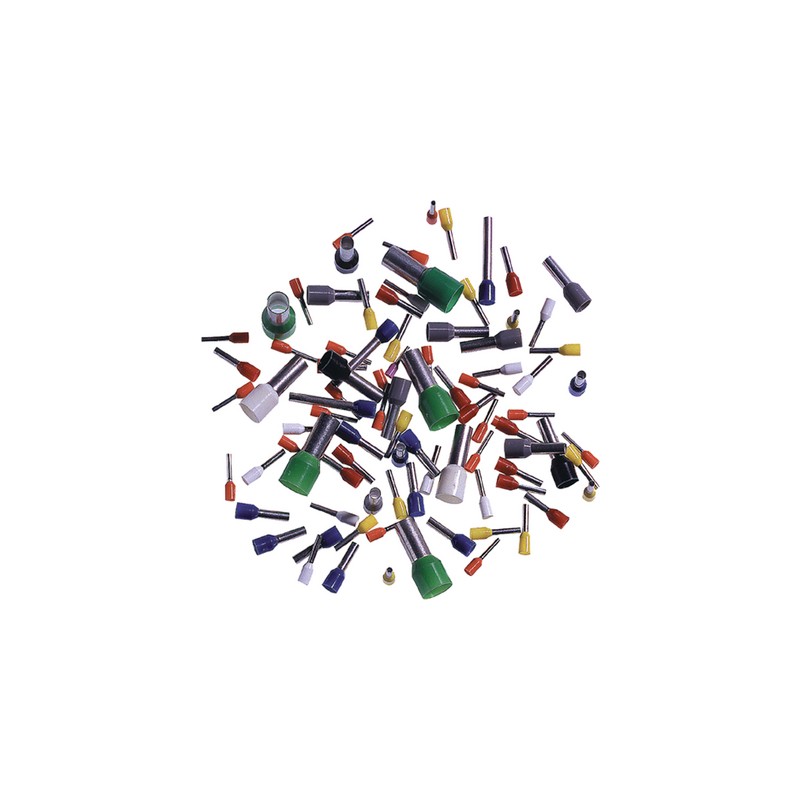

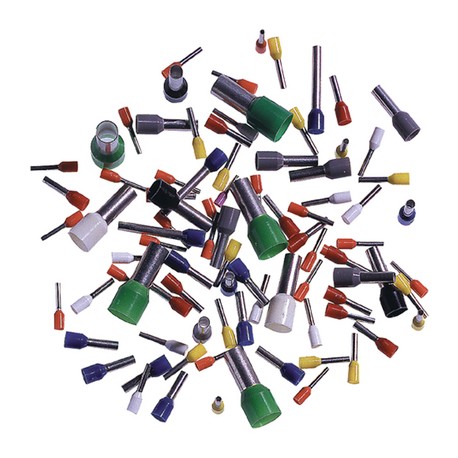

61721990 AHI L 16/18 GN LAPP END SLEEVES AHI L 16/18 GN View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

61721990 AHI L 16/18 GN LAPP END SLEEVES AHI L 16/18 GN

61721990

AHI L 16/18 GN

LAPP

100

END SLEEVES AHI L 16/18 GN

Conductor end sleeves insulated

More details


Installation, isolation and connection material > Cable end sleeve

Connection engineering

* Brand new product in its original packaging covered by the warranties and certifications provided by LAPP

Total price: $11.73
Unit price: $0.12

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Conductor end sleeves with insulation for cabinet builders , according to DIN or German colour code, halogen-free

Now with UL approval

Benefits

  • Funnel-shaped opening makes it easy to slip them onto the strands
  • The conductor is permanently connected to the collar by crimping

Application range

  • Control cabinets and equipment wiring
  • For cables with category 2,5 and 6 conductors
  • Not suitable for solid conductors

Norm references / Approvals

  • All DIN conductor end-sleeves are in accordance with DIN 46228 Part 4
  • UL File No. E507990, see table
  • Fire behaviour according to UL 94 HB

Note

  • From 16mm sleeve length (l2) 2x crimp

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000005
  • ETIM 5.0 Class-Description: Cable end sleeve

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000005
  • ETIM 6.0 Class-Description: Cable end sleeve

Note

  • Halogen-free

Material

  • Copper/PP
  • Surface: tin-plated

Temperature range

  • -5°C to +105°C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE LAPP EN.pdf 58 Mbytes
61721990 AHI L 16/18 GN 61721990 EN_61721880.pdf 502 Kbytes 61721990 AHI L 16/18 GN 61721990 EN_61721880.pdf
